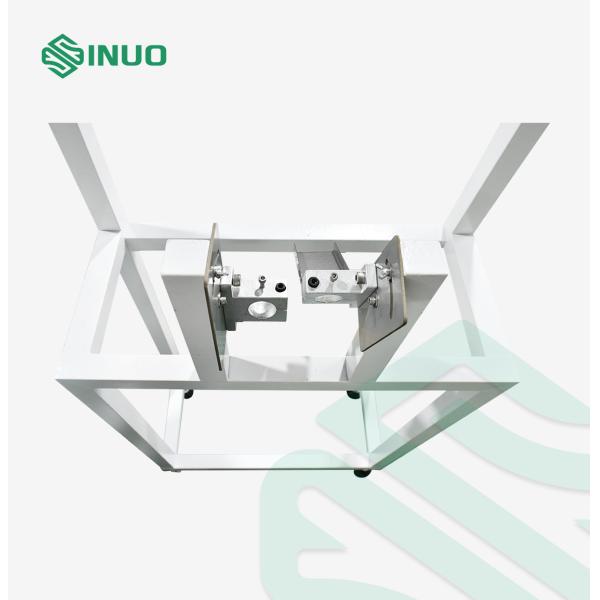

IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
Specifications
Brand Name :
Sinuo
Model Number :
SN449-2744L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Outer chamber size :
4200*1460*2200mm（W×D×H）
Inner chamber size :
1400*1400*1400mm（W×D×H）
Turntable load :
20 kg
Turntable diameter :
600 mm
Water spray pressure :
30～200kpa
Turntable speed :
1-7R/min
Outer chamber material :
A3 iron plate spraying
Inner chamber material :
SUS304# stainless steel
Description

IPX5 IPX6 Water Spray Test Chamber for Waterproof Testing of Electronic Devices

Complied Standards & Clauses

Conforms to IEC 60529, etc.

Equipment Overview

The IPX56-2744L Horizontal Strong Water Spray Test Chamber is a high-performance testing system designed to evaluate the waterproof capabilities of electronic and electrical products under simulated heavy rain and jetting water conditions. It supports IPX5 and IPX6 level testing, essential for validating product durability, safety, and compliance with international waterproofing standards.

  • Dual IPX5/IPX6 Testing in One Chamber
    Equipped with both IPX5 and IPX6 stainless steel nozzles, providing comprehensive testing capability for different waterproof levels.

  • Large Inner Test Space
    Extra-large chamber (1400×1400×1400 mm) suitable for testing large equipment like EV parts, electrical cabinets, and automotive components.

  • High Water Pressure & Flow Simulation
    Supports adjustable pressure from 30–200kPa and water flow up to 100 L/min, simulating realistic heavy rain and jet spray environments.

  • Automated Oscillating Nozzle System
    Electrically oscillating nozzles provide uniform water exposure from all angles, ensuring accurate test coverage.

  • Durable Materials
    SUS304 stainless steel inner chamber and 304# stainless steel nozzles ensure corrosion resistance and long service life.

  • Sinuo Self-Developed Touchscreen System
    Intuitive control with precise parameter adjustments for pressure, flow rate, test duration, and turntable speed.

Technical Parameters

Item

Specification
Inner Chamber Size 1400 × 1400 × 1400 mm (W×D×H)
Outer Chamber Size About 4200 × 1460 × 2200 mm
Turntable Diameter 600 mm
Turntable Load Capacity 20 kg
Turntable Speed 1–7 RPM (adjustable)
Distance from Nozzle to Sample 2500–3000 mm
Number of Nozzles 2 pcs (IPX5: φ6.3mm, IPX6: φ12.5mm)
Water Flow Rate IPX5: 12.5 ± 0.625 L/min; IPX6: 100 ± 5 L/min
Water Spray Pressure 30–200 kPa (adjustable)
Water Spray Duration 3, 10, 30, 9999 min (adjustable)
Water Circulation Yes
Nozzle Swing Function Yes (Electric, Up & Down)
Inner Chamber Material SUS304 Stainless Steel
Control System Sinuo Self-Developed Touchscreen System
Power Supply AC 380V, 50Hz, 3-phase, 4KW
Protection System Leakage, Phase Sequence, Alarm Prompt
Details

IPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic DevicesIPX5 IPX6 Water Spray Test Chamber For Waterproof Testing Of Electronic Devices
