IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
Specifications
Brand Name :
Sinuo
Model Number :
SNQC1013
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
100 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood
Surface Roughness :
≤ 0.8 μm (active length)
Contact Spacing Tolerance :
± 0.05 mm
Contact Dimension Tolerance :
+0.01 / 0 mm
Contact Material :
Hardened steel
Contact Processing :
Finely ground
Standard :
IEC 62196-2, IEC 62196-3
Description

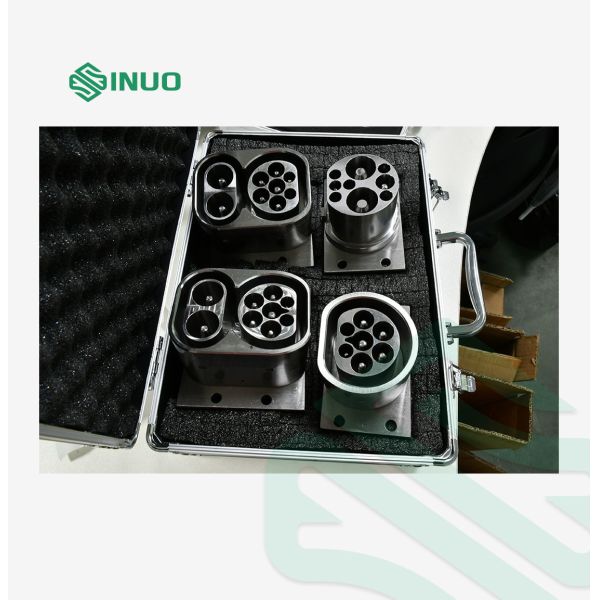

IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
Product Information

The test gauges are manufactured in accordance with the relevant standard sheets, featuring finely ground contacts made of hardened steel. The surface roughness of the contacts shall not exceed 0.8 μm over their active length, and the contacts are spaced at nominal distances with a tolerance of ±0.05 mm.

The dimensions of the plug contacts, as well as the distance between contact surfaces for other types of plug contacts, shall comply with the minimum dimensions specified in the relevant standard sheets, with a tolerance of +0.01/0 mm.

Complied Standards & Clauses
  • IEC62196-2/Ed.3/CDV © IEC(E)
  • IEC62196-3/Ed.2/CDV © IEC(E)

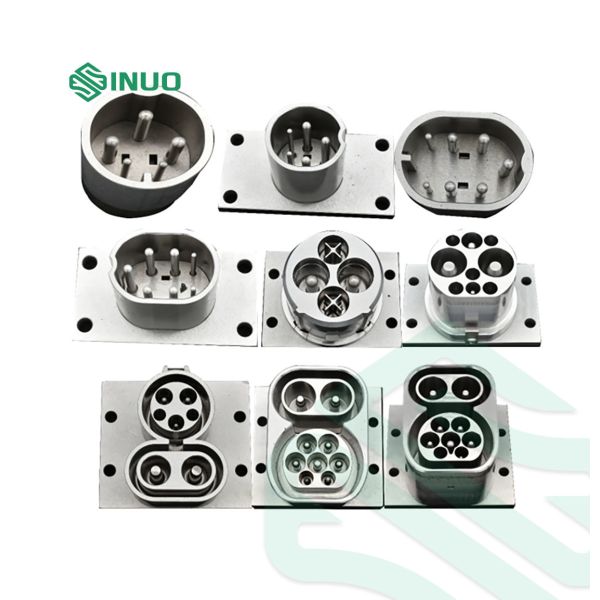

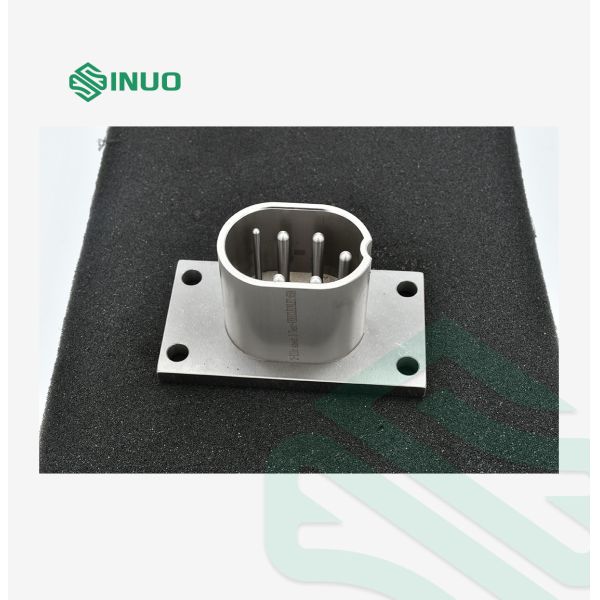

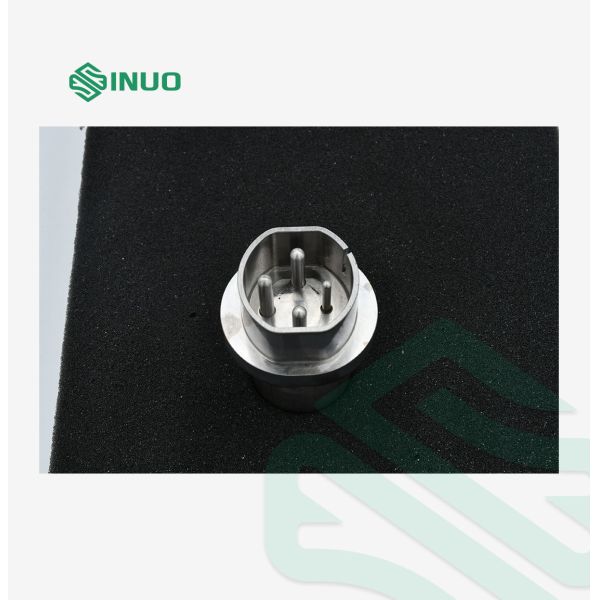

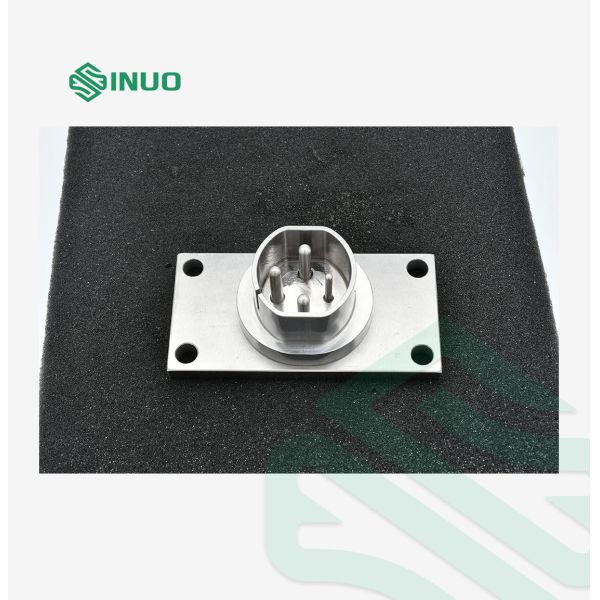

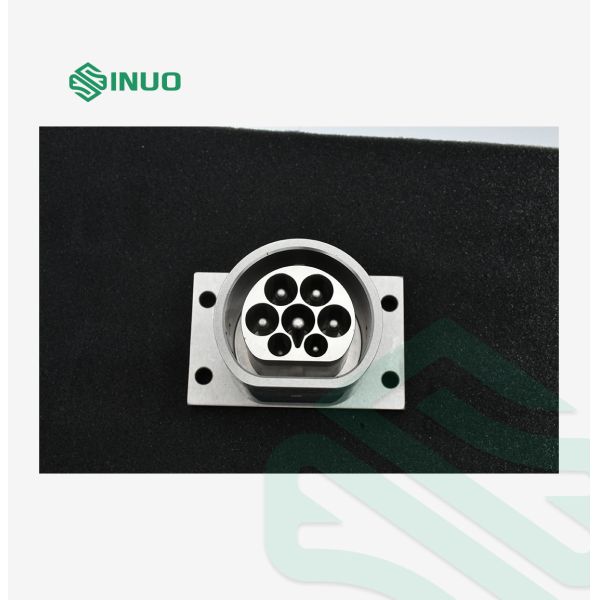

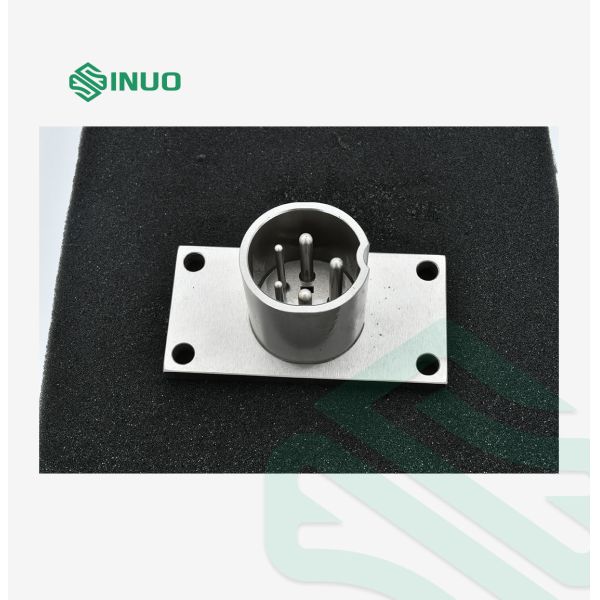

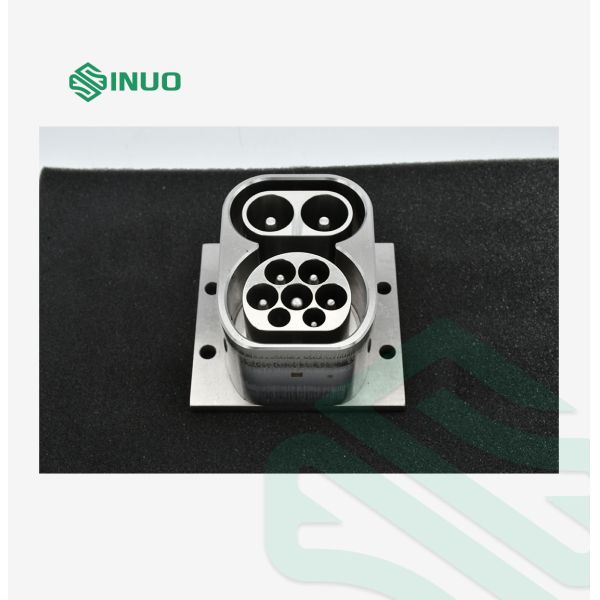

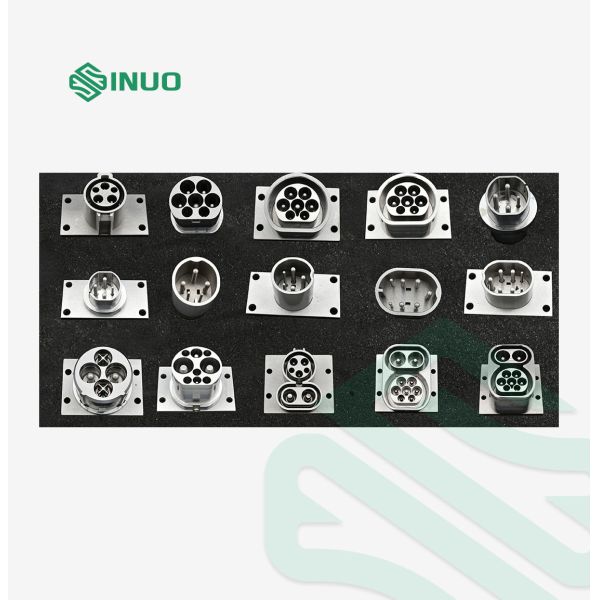

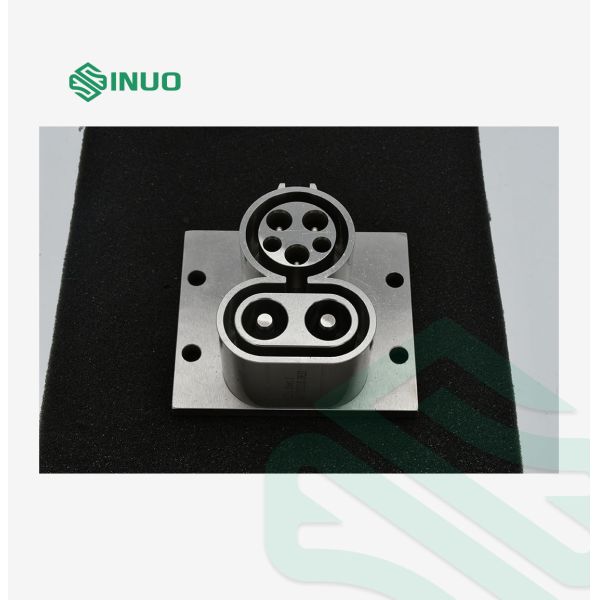

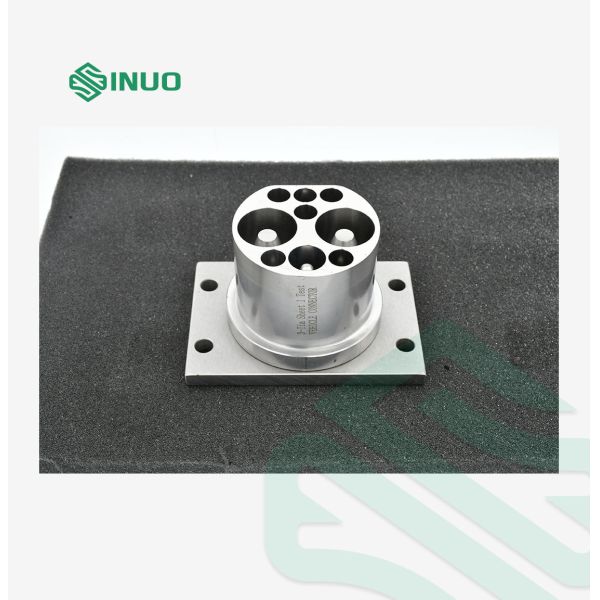

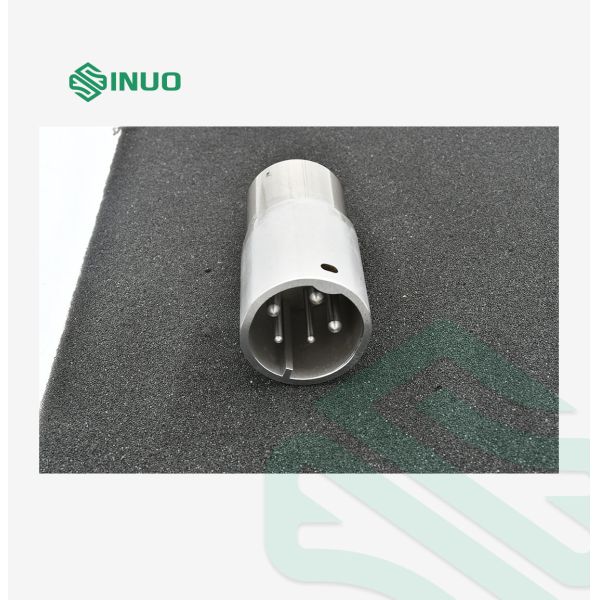

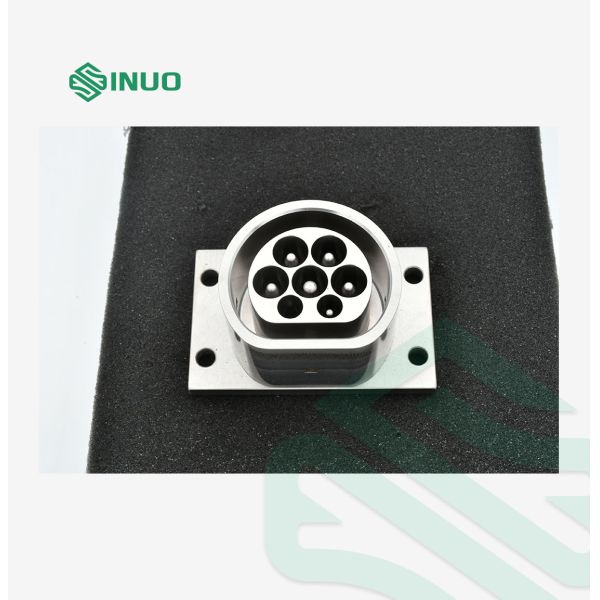

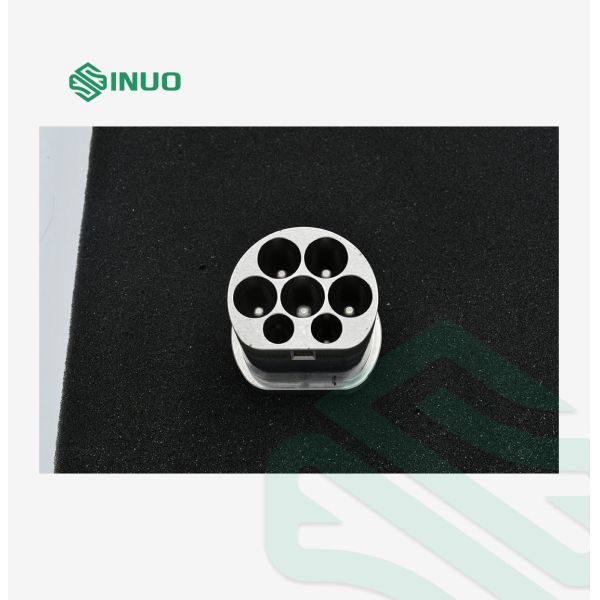

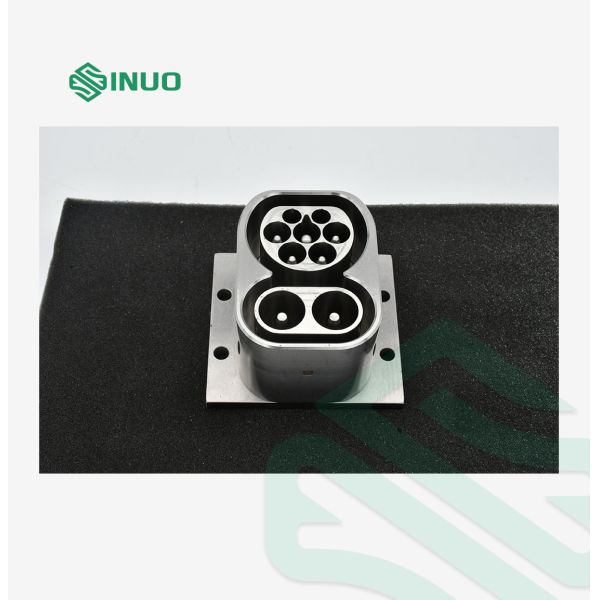

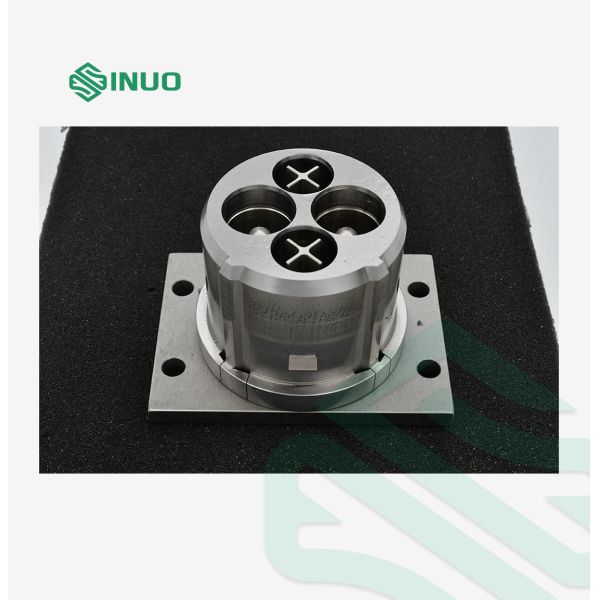

Test Gauges List
No. Standard Figure No. Name Product Picture

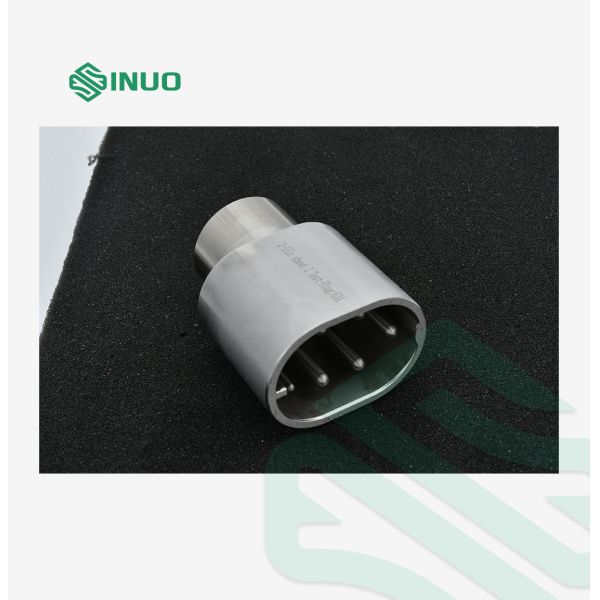

1IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-I sheet 1Test-plug:32A,250 V AC VEHICLE INLETIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
2IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Ilb sheet 1Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASEIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets

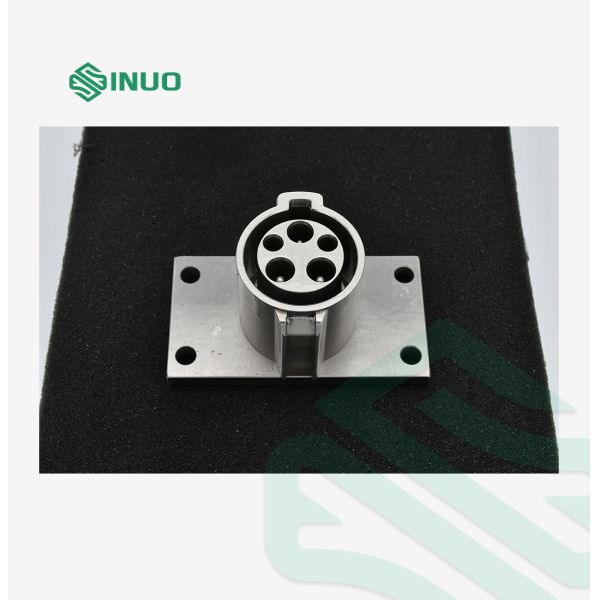

3IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Ild sheet 1Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASEIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
4IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Ilf sheet 1Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASEIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
5IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illa sheet 1Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACTIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
6IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illa sheet 3Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACTIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
7IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illb sheet 1Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTSIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
8IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illb sheet 3Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTSIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
9IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illc sheet 1Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTSIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
10IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illc sheet 3Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTSIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
11IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-Ib
Sheet 1		 Test Vehicle ConnectorIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
12IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEETS
CONFIGURATION BB
VEHICLE COUPLER 250 A 900 V DC
STANDARD SHEET 3-Iia Sheet 1		 Test Vehicle ConnectorIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
13IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-IIIa Sheet 2 Test Vehicle InletIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
14IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2 Test Vehicle InletIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
15IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1 Test Vehicle InletIEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets
