IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN4410
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Chamber external size :
W 750* D 750*H 2500mm
Chamber inner size :
L650* W 650* H1500mm
Max. test water depth :
1.2m
Observation window width :
200mm
Observation window :
Tempered glass (thickness: 12mm)
Test content :
IPX7
External chamber material :
Stainless steel plates + Aluminum profile frame
Inner chamber material :
2.0mm thickness stainless steel
Description

IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.

Equipment Overview

This IPX7 waterproof testing device is designed in accordance with IEC60529 and related standards to evaluate the waterproof performance of electrical and electronic products under temporary immersion conditions. Ideal for R&D, quality control, and factory inspection.

Engineered for compliance with IPX7 requirements, this waterproof test chamber simulates immersion environments to verify the sealing performance of devices. Widely used in product development, certification testing, and production line quality checks.

Compliant with IEC60529, IEC60884-1, IEC60335-1, and IEC60598-1, this equipment enables precise IPX7 testing for a wide range of consumer electronics and electrical products. It helps manufacturers ensure waterproof reliability before market release.

Technical Parameters

Chamber external size Approximately W 750* D 750*H 2500mm (including casters)
Chamber inner size Length 650* W 650* H1500mm
Max. test water depth 1.2m
Observation window Tempered glass (thickness: 12mm)
Observation window width 200mm
Water level adjustment method Water inlet / drain valve, manual adjustment
Water level display Scale (accuracy 1mm)
External chamber material Stainless steel plates + Aluminum profile frame
Inner chamber material 2.0mm thickness stainless steel

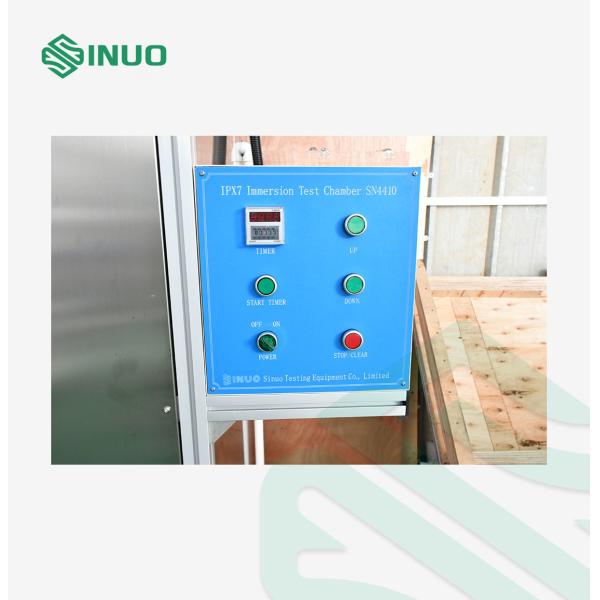

Electric lifting basket Made of stainless steel, controlled by electric hoist
Control method Buttons (non-PLC)
Test time 0.01 second-99.99hours can be preset
Immersion depth requirements

The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water

The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content IPX7
Power supply AC 220V,50Hz, 1KW

Details

IPX7 Waterproof Test Chamber Waterproof Performance Testing MachineIPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
