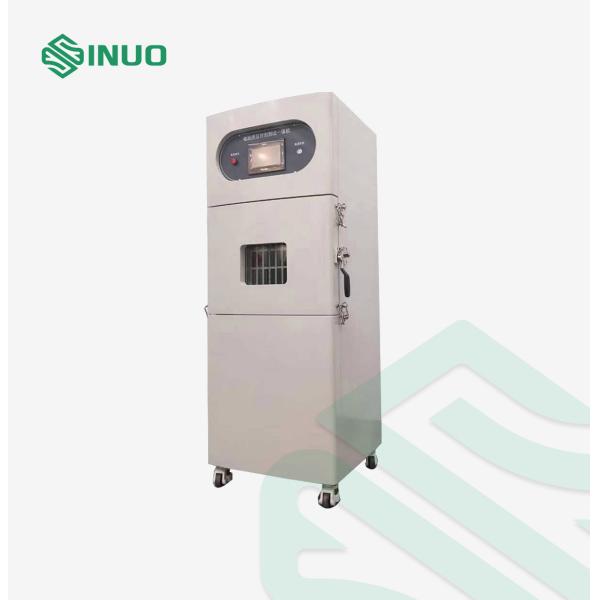

IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN554B-15T
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Extrusion accuracy :
±1%
Velocity error :
≤1%
Extrusion stroke :
0~450mm
Driving mode :
Servo motor
Maximum pressure :
1KN-150KN (adjustable)
Velocity condition :
1 - 15mm/s (adjustable)
Box size :
W1000*D1000*H1000 mm
Input voltage :
380V frequency 50 Hz
Description

IEC62133 Two-channel Battery Crush and Nail Penetration Test Chamber

Complied Standards & Clauses

Conforms to AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, etc.

Product Overview

This testing machine simulates the different conditions that may occur when the battery is subjected to extrusions during the use of various power lithium battery grades. The battery is placed between an extruding plate, and the motor applies pressure to the extruded battery through the screw, and automatically returns after reaching a certain pressure. This test equipment is mainly used for the safety detection of automotive lithium batteries, power batteries, accumulators, electric vehicle batteries and other batteries. It is a set of pressure system, explosion-proof system, data acquisition system, computer control system and so on. The main body of the test equipment and the control system are isolated and operated separately to realize remote monitoring and testing, and multi-layer safety protection device can meet multiple test standards. The main components are imported, which is an essential testing equipment for battery manufacturers and research institutes.

Technical Parameters

Maximum pressure 1KN-150KN (adjustable)
System structure Vertical pressure structure
Driving mode Servo motor
Input voltage 380V frequency 50 Hz
Extrusion stroke 0~450mm(Extrusion fixtures are not included)
Extrusion accuracy ±1%
Velocity condition 1 - 15mm/s (adjustable)
Speed display accuracy 0.1mm
Pressure display accuracy 1N
Velocity error ≤1%
Force error ±1%
Unit conversion Kg/N/Lb
Test condition Force, displacement (deformation), voltage, one of three or a combination of three
Squeeze pause time 0~99 hours 59 minutes 59 seconds, the time state can be set at will to adjust the amount of deformation cloth and automatic termination
Control mode PC upper computer control system
Box size W1000*D1000*H1000 mm

Temperature range

 Collection range: -20 ~1000℃; two-channel
Accuracy: ±1℃;
Voltage range Collection range: 0~100V

Acquisition accuracy: 100ms;
Channel: 1 channel;
communication Using R232,45 communication interface, can ensure the stability and real-time remote acquisition, with explosion-proof function
Safety stop switch Has an "emergency stop" button
Inner box material SUS 201# stainless steel (thickness 3.0mm reinforced and total thickness of outer box 80mm)
Outer box material Cold mixed plate baking (thickness 1.5mm)
Box body Adopt vertical structure
Smoke vent 100mm, located above the back of the box

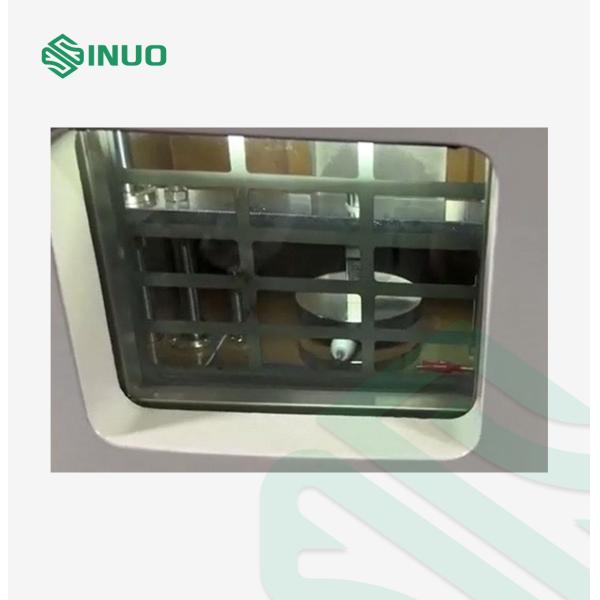

Door Left door, observation window, cold handle door lock
Explosion-proof pressure relief device With explosion-proof pressure relief function, that is, the rear of the protective box has a magnet adsorption type pressure relief door (specification: 400*400mm), when the strong air impact, the pressure relief door automatically opens to reduce the explosion impact.
Fire extinguishing installation The extruded box is equipped with a fire extinguishing device. Once the battery explodes, the fire extinguishing device and system can be opened by remote control or manual.
Exhaust system When the test sample produces smoke, the device can automatically exhaust the smoke through the pipe
Lighting installation High brightness energy-saving lighting explosion-proof lamps are placed in the test tank to illuminate the entire test space for easy test observation

Details

IEC62133 Two-channel Battery Crush And Nail Penetration Test ChamberIEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber
