EVSE Waterproof Performance Test Equipment IPX4 Waterproof Test System
This fully automatic waterproof test system is designed for evaluating the ingress protection of EV charging stations according to IEC 60529 IPX4 standards. The equipment features PLC-based intelligent control with touchscreen operation for complete automation of the spray testing process.
Compliant Standards & Certifications
  • IEC60529:2013 Degrees of Protection Provided by Enclosure (IP Code) – IPX4
Equipment Overview
The system utilizes multiple standard nozzles (IEC60529 Fig. 5) arranged in a matrix layout with adjustable spray angles, enabling comprehensive waterproof testing on the top surfaces of charging stations of various specifications. This makes it an ideal solution for third-party testing organizations and factory laboratories.
Technical Specifications
Item Parameters
Power Supply AC380V 50Hz, 15 kW, with leakage protection air switch
Sample Size Standard: 900*900*2400 mm
Test Standard IEC60529-2013, IPX4 rain test
Nozzle Parameters Outer diameter: Ф102 mm
Spherical cap diameter: SФ75.5 mm
Center hole: 1
Inner two rings: 24 holes, 30° spacing
Outer four rings: 96 holes, 15° spacing
Total holes: 121
Hole diameter: Ф0.5 mm
Material: Brass

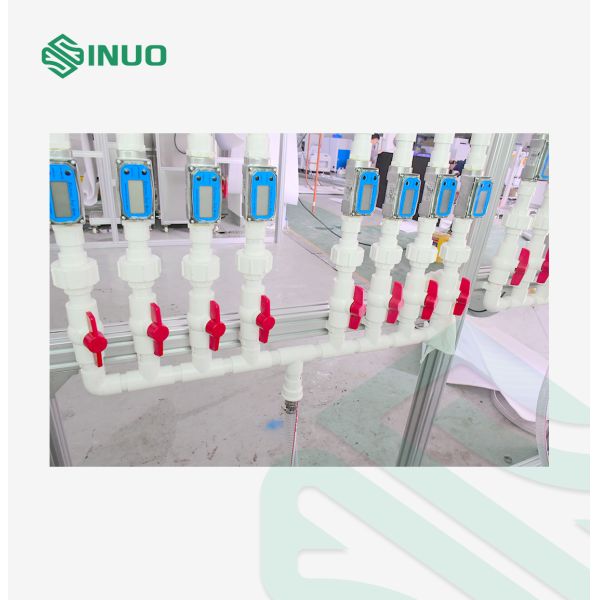

Flow Rate 10 L/min ±5% per nozzle, monitored by flowmeter, total flow rate settable via touchscreen
Rainfall Distance Minimum distance from nozzle to sample: 0.3–0.5 m (per standard)
Spray Direction Nozzle angle manually adjustable to match sample surface

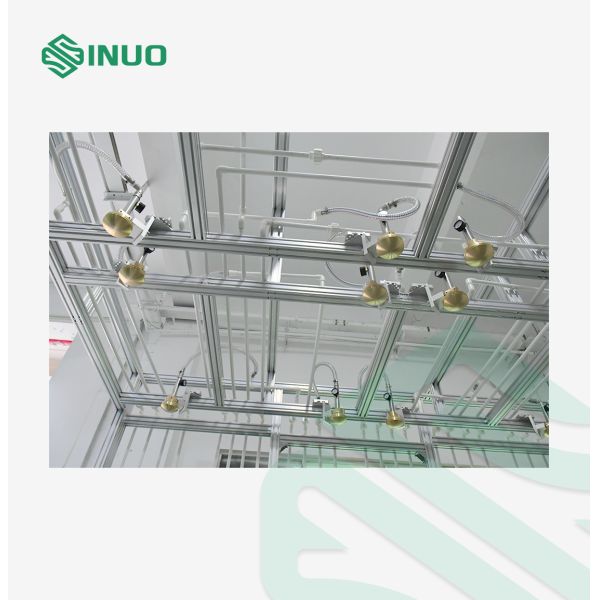

Nozzle Mounting Nozzles arranged on top of chamber, tilted 45° downward (adjustable), 6 rows * 4 columns
Pressure Gauge 0–1 MPa, displayable
Test Duration 0.01 s – 99.9 min, programmable
Water Supply System Spraying water supplied from tank via branded pump with water circulation system (constructed by user)
Control System Mitsubishi PLC, touchscreen interface, flowmeter display with manual and automatic operation modes
Leakage Recording Manual inspection
Sample Handling Sample loaded/unloaded via forklift
Safety Protection Phase sequence protection, leakage protection, short circuit protection, abnormal operation protection
Product Details
EVSE Waterproof Performance Test Equipment IPX4 Waterproof Test System
EVSE Waterproof Performance Test Equipment IPX4 Waterproof Test System
