Specifications
Brand Name :
Sinuo
Model Number :
SNQC1017A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Measurement Range :
0 to ±2000 Pa
Pressure Resistance :
1 MPa
Operating Temperature :
–5°C to 40°C
Storage Temperature :
–20°C to 70°C
Parameter Channels :
64 channels (1–64)
Test Cycle Setting :
0–999s
Humidity :
< 80% RH, non-condensing
Weight :
Approx. 40 kg
Description

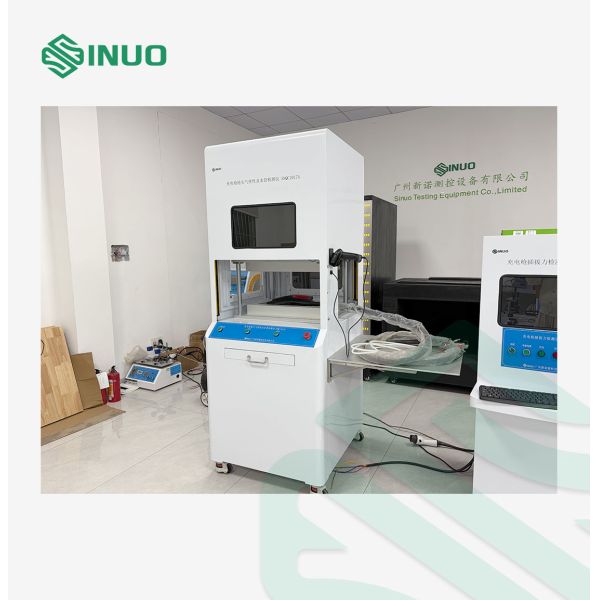

EV Connector Testing Equipment for Airtightness Testing and Automatic Evaluation
This high-precision EV Connector Testing Equipment provides comprehensive airtightness testing and automatic evaluation for electric vehicle charging components. Designed specifically for EV charging gun components and water pipes, it performs rigorous pressure-drop tests based on IPX7 standards to ensure product reliability and identify defective materials before assembly.
The system delivers stable pressure output, micro-leakage monitoring, automatic evaluation, and comprehensive data recording capabilities. It is ideally suited for EV charger manufacturers, charging gun assembly lines, and laboratory verification departments requiring precise quality control.
Technical Specifications
Technical Item Specification
Display Resolution 0-4 decimal places adjustable
Measurement Range 0 to ±2000 Pa
Pressure Resistance 1 MPa
Accuracy ±0.1% FS
Overpressure Resistance 3* full-scale pressure
Test Pressure Units kPa, kg/cm², PSI, mbar, bar, Torr, mmH₂O, mmHg
Leakage Units Pa, Pa/s, mL/s, mL/min, L/min, Pa*m³/s
Parameter Channels 64 channels (1-64)
Test Cycle Setting 0-999 seconds
CPU 32-bit processor
Power Supply AC 220V ±10%, 50 Hz
Required Air Source Clean, dry air ≥ 600 kPa
Operating Temperature -5°C to 40°C
Storage Temperature -20°C to 70°C
Humidity < 80% RH, non-condensing
