Specifications
Brand Name :
Sinuo
Model Number :
SNQC1006B-6500A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood
Temperature Rise Setting Range :
0–100°C
Weight :
Approx. 400kg
Maximum Output Voltage :
DC less than DC 15V
Dimensions :
Approx.1000mm(W) × 1300mm (D) × 1800mm (H)
Power Supply :
AC 220V ±10%, 50/60Hz, 50KVA
Temperature Measurement Range :
0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
Operating Modes :
Continuous mode, On/Off mode, Automatic temperature control mode
Description
6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets
Product Information

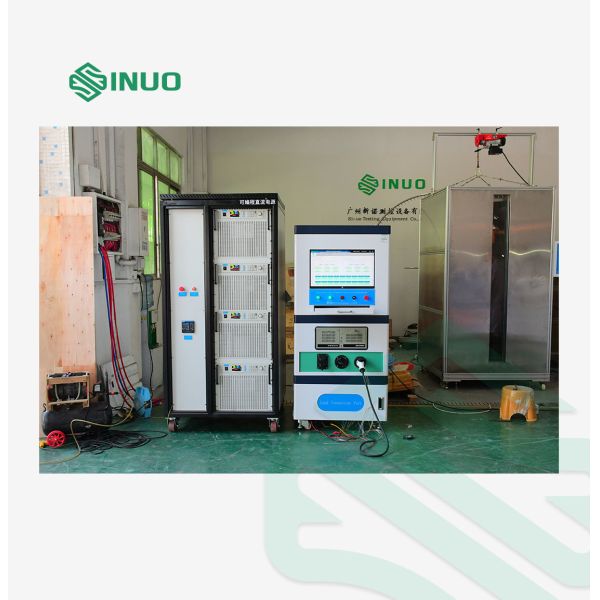

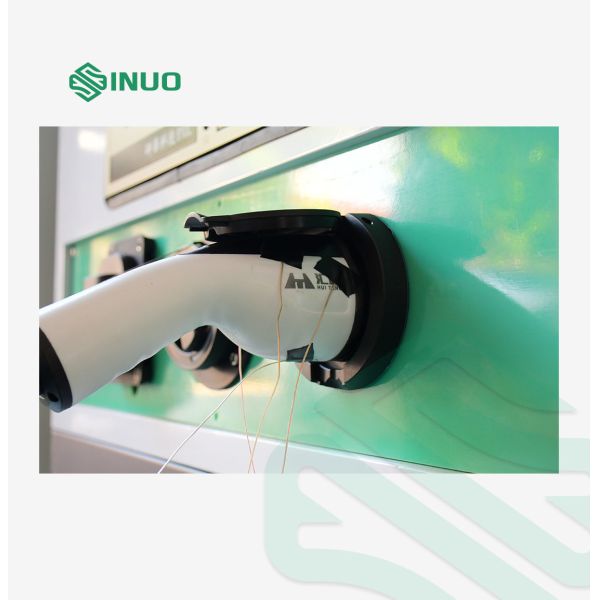

This test system is specially used for temperature rise testing of EV plugs and sockets under rated current, to evaluate the surface heating condition of electrical accessories when loaded with current, and verify whether the terminal temperature rise meets standard requirements. It is also applied to short-time high current withstand test for grounding contacts of EV charging connectors and accessories.

6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets
Compliance Standards

Conforms to IEC 62196-1 Ed.4 CDV 2020 Clause 12.3, Clause 24, Table 10, Clause 34.2, 34.4, 35.4, IEC 62916-2 and IEC 62916-3 standards.

Equipment Features
  • Adopts computer-controlled self-programmed test software for full-automatic test process and data judgment, easy to operate.
  • Automatically records and analyzes temperature rise data, and judges whether test results meet standard requirements.
  • Supports multiple working modes: continuous mode, on/off cycle mode, automatic temperature control mode.

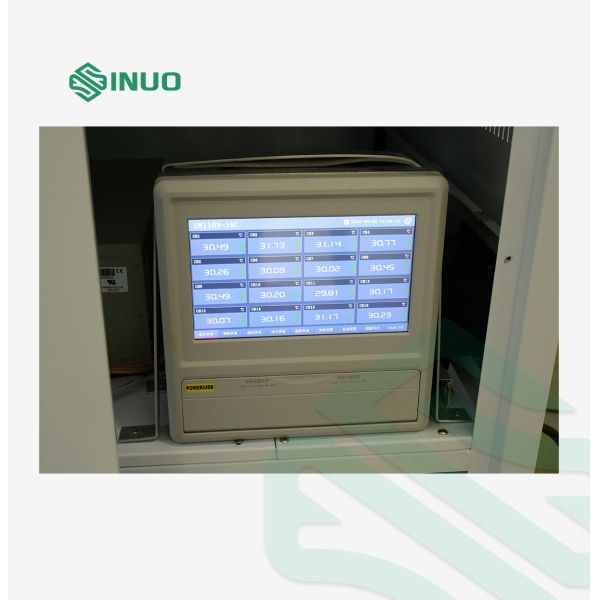

  • Equipped with 16-channel high-precision temperature measurement, real-time curve display and data storage.
  • Provides voltage drop and resistance testing function, with overload & overcurrent protection for long-term stable operation.
  • Configured with touchscreen integrated industrial computer, supporting data export via USB in CSV/XLSX formats.
Technical Parameters
Output Workstation 1 DC output station
Maximum Output Voltage DC less than DC 15V
Control Contact Power Supply Current range AC (0–2) A
Operating Modes Continuous mode, On/Off mode, Automatic temperature control mode
Temperature Rise Setting Range 0–100°C
Temperature
Measurement Range		 0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
Temperature
Measurement Points		 16 channels
Power Supply AC 220V ±10%, 50/60Hz, 50KVA
Dimensions Approx.1000mm(W) × 1300mm (D) × 1800mm (H)
Weight Approx. 400kg
