Specifications
Brand Name :
Sinuo
Model Number :
SNQC1012
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood case
Applied clause :
clause 13.3.1 fig12, table 3
Applied standard :
IEC 62196-1:2022
The rotating diameter :
75mm
Rate of Testing :
(10±2) r/min
Power Supply :
AC220V,50/60Hz
Rotating weight :
0.4~70.3kg
Size :
790mmX400mmX1500mm
Height(H)(mm) :
260-660mm
Description
Screw Terminal Clamping Strength Tester for EV Connectors IEC 62196-1
This specialized testing equipment evaluates the reliability and structural integrity of screw terminal clamping mechanisms in EV connectors, ensuring compliance with international safety standards.
Compliance Standards
Conforms to IEC 62196-1:2022 clause 13.3.1 fig12, table 3 requirements for electric vehicle conductive charging systems.
Equipment Functionality
This compliance testing machine assesses whether clamping screw terminal designs and structures meet requirements for preventing wire damage during installation and normal operation. It verifies the terminal's ability to withstand stress during regular usage conditions.
The system features programmable testing cycles with preset counter functionality and automatic shutdown with alarm notification when testing cycles are completed.
Technical Specifications
Power Supply AC220V, 50/60Hz
Counting Range 1-9999 cycles (150 cycles/15 minutes default)
Testing Rate (10±2) rotations per minute
Rotating Weight Range 0.4-70.3kg (refer to table 3 for details)
Rotating Diameter 75mm
Bushing Hole Diameters 6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5mm
Height Range (H) 260-660mm
Overall Dimensions 790mm * 400mm * 1500mm
Equipment Details

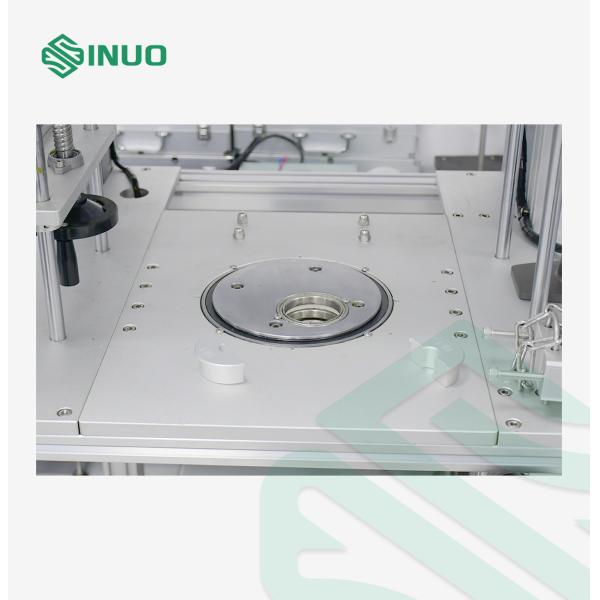

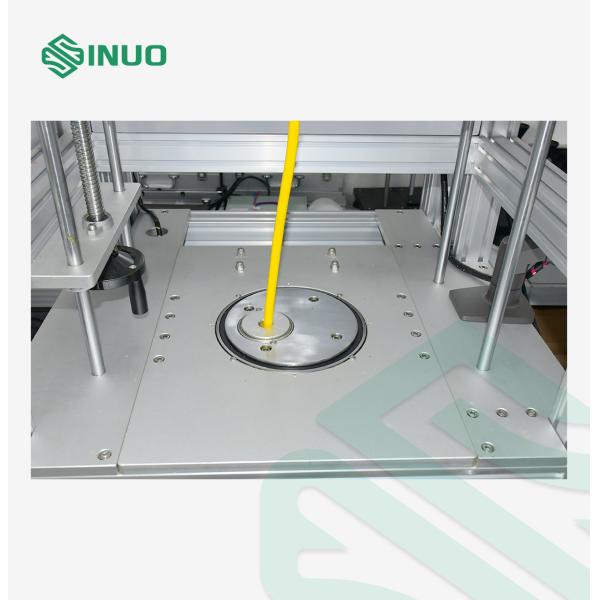

IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester for EV Connectors with 75mm Rotating Diameter and (10±2) r/min Testing Rate IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester for EV Connectors with 75mm Rotating Diameter and (10±2) r/min Testing Rate
