Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SNQC1007
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Drive Mode :
Motor and cylinder
Operation Method :
Button operation
Torque Weights :
6N*1, 7N*1, 12N*1, 15N*1, 23N*1, 110N*1 Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque
Pull Force Weights :
40N*1, 50N*1, 60N*1, 100N*2,250N*1 Can achieve 160N, 200N, 240N, 250N,500N,600N pull force
Pull Frequency :
1 cycle/s
Torque Arm :
Ф200mm
Equipment Weight :
220KG
Equipment Dimensions :
L 1560mm*W 600mm*H 1530mm
Description

Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment

Complied Standards & Clauses

It is designed and manufactured according to IEC62196-1: 2022 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc..

Product Overview

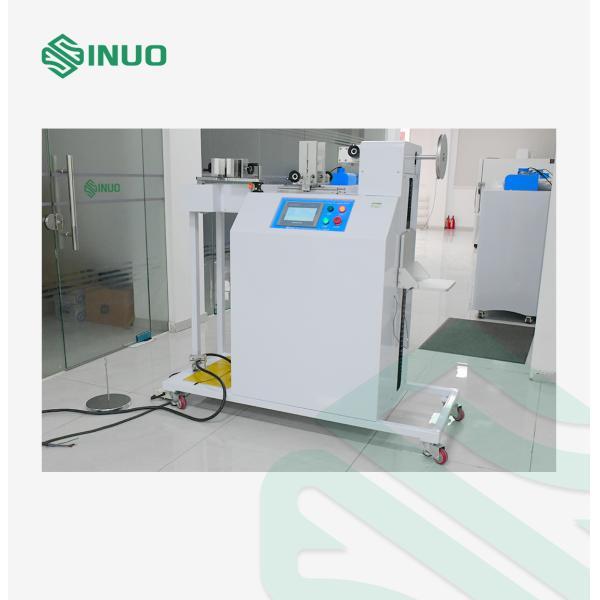

This pull force and torque testing apparatus is designed for evaluating vehicle plugs, socket-outlets, and connectors to ensure they can endure the required mechanical stresses of pulling force and torsional load.

The equipment is developed and manufactured in full compliance with IEC 62196-1:2022 clause 25.3, Figure 17 and Table 11, as well as IEC 60309-1:2012 clause 23.3, among other relevant standards.

The pulling function is performed by a single-phase variable-speed motor that operates an eccentric mechanism, with adjustable motor speed to guarantee precise timing for each applied pull force. Torque is generated by an air cylinder that releases a calibrated torque weight, ensuring consistent and accurate torque measurement.

Technical Parameters

Operation Method Button operation
Drive Mode Motor and cylinder
Power Supply Single phase AC220V±10%, 50/60Hz, 10A
Equipment Dimensions & Weight

L 1560mm*W 600mm*H 1530mm, approx. 220KG
Fixture

One set of universal fixtures
Torque Arm Ф200mm
Torque Applied Time 0.01S ~ 99 hours 59 minutes 59 seconds, default 1 min
Pull Frequency 1 cycle/s
Pull Cycles 1-999999 cycles, can be preset, default 100 cycles
Pull Force Weights

40N*1, 50N*1, 60N*1, 100N*2,250N*1

Can achieve 160N, 200N, 240N, 250N,500N,600N pull force
Torque Weights

6N*1, 7N*1, 12N*1, 15N*1, 23N*1, 110N*1

Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque

Details

Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test EquipmentElectric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
