Specifications
Brand Name :
Sinuo
Model Number :
SN4416-1400
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Export packing
Inner Chamber :
L1400*W1400*H1400mm
Outer Chamber :
L1880*W4200*H2200mm
Turntable Diameter :
￠200mm and 600mm
Turntable Speed :
1 -5r/min (adjustable)
IPX6 Nozzle Jet Aperture :
12.5mm
IPX5 Nozzle Jet Aperture :
6.3mm
IPX6 Jet Flow :
100±5L/min
IPX5Jet Flow :
12.5±0.625
Description


Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber


Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Product Overview

Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.

General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.

Equipment function: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated climatic conditions. After the test, judge whether the performance of the product meets the requirements by the verification, so as to facilitate the design, improvement, verification and factory inspection of the product.

Technical Parameters

Basic Parameters
Inner Chamber Size L1400*W1400*H1400mm
Outer Chamber Size L1880*W4200*H2200mm
Allowed dimensions of products Length and width ≤1000mm, height ≤100mm

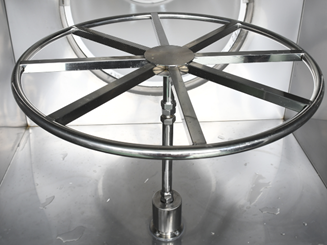

Turntable Diameter

￠200mm and 600mm

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber
Turntable Maximum Load Bearing ≤20KG
Turntable Speed 1-5r/min (adjustable)
Turntable Rotation Method Always positive / positive and negative alternate
Flow Adjustment Method Manually adjust flow by adjusting flow meter on the panel
Test Time 0-999 min
Power supply for sample

Configured with a waterproof socket inside the chamber for client to power on sample during test

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber
Water supply for testing

With a built-in water tank of approx. 90L, the water can be recycled
Total Weight Approx. 450kg
Required site place 4.4m(D)*2.2m(W)*2.4m(H)
IPX34 Oscillating Tubes Parameters
Oscillation Tube

R200 mm and R400mm and R600mm
Distance between Nozzle Sample Within 200mm
Spray Aperture Spacing 50 mm
Oscillating Tube Swing Angle

±60° (IPX3),

approximately ±160°(IPX4)

(Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Angle Between Two Holes

120°(IP3)

180°(IP4)
Needle Hole φ0 .4 mm
Oscillating Speed IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole 0.07 L/min +5%
Spray Pressure 80-150Kpa

Details

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test ChamberOscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber
