IPX3–IPX6 Automotive Component Jet Nozzle Water Spray Test System


Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Product Overview

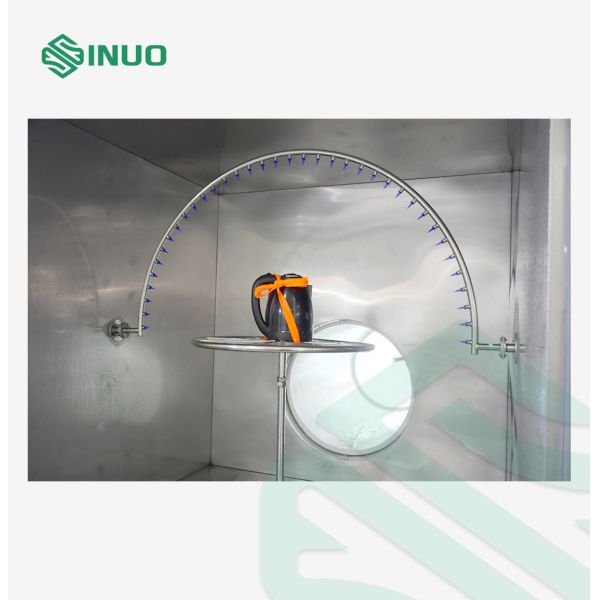

The IPX3–IPX6 Oscillating Tube and Jet Nozzle Waterproof Test Chamber is a high-precision environmental testing system designed to evaluate the water ingress protection performance of electrical and electronic products, enclosures, and components. In compliance with IEC 60529 (IP Code), this equipment accurately simulates rain and powerful water jet conditions to verify whether products meet required waterproof ratings.

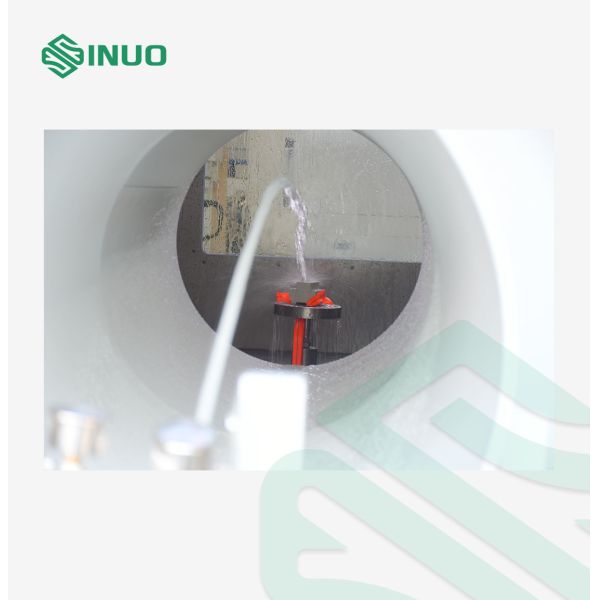

The chamber is equipped with oscillating tubes for IPX3 and IPX4 tests and dedicated jet nozzles for IPX5 and IPX6 tests, ensuring full coverage of standard water spray conditions. A stable water supply system, controlled spray angle, adjustable flow rate, and rotating turntable guarantee uniform and repeatable testing results.

Constructed with a robust painted steel outer casing and a SUS304 stainless-steel inner chamber, the system offers excellent corrosion resistance and long-term durability. A large transparent observation window and built-in LED lighting allow real-time monitoring of the entire test process.

This test chamber is widely used for outdoor lighting, household appliances, automotive components, electrical cabinets, and other electronic and electrical products, serving as an essential tool for product design validation, quality inspection, certification testing, and factory acceptance.

By accurately assessing waterproof performance under simulated natural rain and water jet environments, the IPX3–IPX6 Waterproof Test Chamber helps manufacturers improve product reliability, ensure compliance with international standards, and reduce field failure risks.

Technical Parameters

Conditions of Use The following conditions are guaranteed by the user and the corresponding connection is completed.
Use of Space

The ground is level, the drainage is smooth, floor and wall are waterproofing,

Ground bearing capacity is not less than 200kg/㎡

Well ventilated

No strong vibration around the device

No strong electromagnetic field around the device

No flammable, explosive, corrosive substances and dust around the equipment

Appropriate use and maintenance space is left around the equipment:

Rear side, left and right side, top of the equipment: 800mm; front side of equipment: 1400mm
Environmental Conditions

Temperature:5℃～35℃

Relative humidity: ≤85%

Air pressure:86kPa～106kPa
Power Supply Conditions
Voltage, Frequency AC400V; 50Hz; three-phase four-wire + protective ground wire
Power 5.0kW
Protective Grounding Resistance Grounding resistance of protective grounding wire is less than 4Ω
Power Switch

1. The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and the switch must be used independently for the device.

2. It is forbidden to use the knife switch or power socket.

3. The leakage protection air switch is not more than 2 meters away from the equipment.
Water Source

1. The user is required to configure the water source for the equipment at the installation site, the water pressure is not less than 0.2Mpa, and the 4-point faucet is installed.

2. The position of the faucet is no more than 2 meters away from the equipment.

3. The water pipe is DN15 type, if customer’s water supply connector is different type, customer needs to prepare a adapter.
Basic Parameters
Allowed dimensions of products Length and width ≤1000mm, height ≤100mm
Outer Chamber Size L1880*W4200*H2200mm
Inner Chamber Size L1400*W1400*H1400mm
Turntable Speed 1-5r/min (adjustable)
Turntable Diameter

￠200mm and 600mm
Turntable Rotation Method Always positive / positive and negative alternate
Turntable Maximum Load Bearing ≤20KG
Test Time 0-999 min
Flow Adjustment Method Manually adjust flow by adjusting flow meter on the panel
Power supply for sample

Configured with a waterproof socket inside the chamber for client to power on sample during test
Water supply for testing

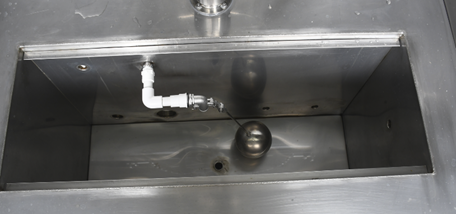

With a built-in water tank of approx. 90L, the water can be recycled

IPX3–IPX6 Automotive Component Jet Nozzle Water Spray Test System
Total Weight Approx. 450kg
Required site place 4.4m(D)*2.2m(W)*2.4m(H)

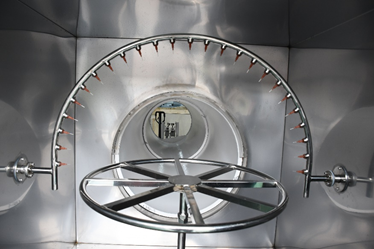

IPX34 Oscillating Tubes Parameters
Oscillation Tube

R200 mm and R400mm and R600mm

IPX3–IPX6 Automotive Component Jet Nozzle Water Spray Test System
Distance between Nozzle Sample Within 200mm
Spray Aperture Spacing 50 mm
Oscillating Tube Swing Angle

±60° (IPX3),

approximately ±160°(IPX4)

(Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Angle Between Two Holes

120°(IP3)

180°(IP4)
Needle Hole φ0 .4 mm
Oscillating Speed IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole 0.07 L/min +5%
Spray Pressure 80-150Kpa

Details

IPX3–IPX6 Automotive Component Jet Nozzle Water Spray Test SystemIPX3–IPX6 Automotive Component Jet Nozzle Water Spray Test System
