Specifications
Brand Name :
Sinuo
Model Number :
SN1101B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Drive mode :
Electric
Application force :
5±1N
Test Cycle :
0-9999 cycles
Test speed :
One cycle/s
Sample clamping method :
Mechanical clamping
Electrical control method :
Button control
Description

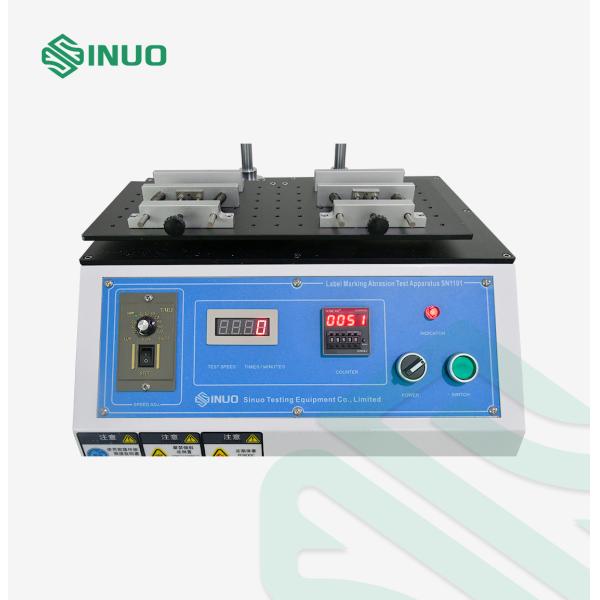

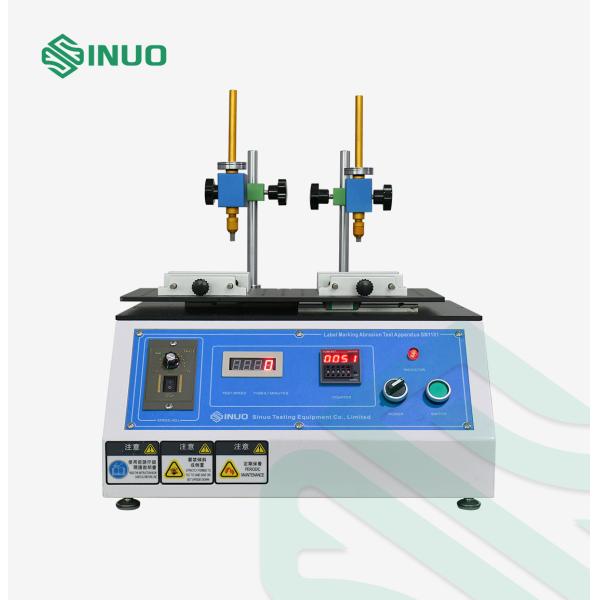

EV Connector Marking Endurance Tester Label and Marking Abrasion Tester

Complied Standards & Clauses


This label marking abrasion test apparatus conforms to IEC 62196-1:2022 clause 8.7, figure 8.


Product Overview

This Marking Endurance Test Equipment is designed to precisely evaluate the durability and legibility of product markings under mechanical wiping and chemical exposure conditions. It faithfully simulates real-world wear by performing controlled rubbing tests using water and 95% n-hexane, ensuring compliance with stringent international marking endurance requirements.

The tester applies a stable and repeatable rubbing motion at approximately one cycle per second, delivering a precisely controlled pressure force of (5 ± 1) N. A specially designed test piston—wrapped with standardized cotton and medical gauze—ensures uniform contact with the marking surface. Manufactured from chemical-resistant elastic material with a Shore-A hardness of 47 ± 5, the piston guarantees consistent performance and long-term reliability. For longer markings, the system allows focused testing over a defined path of at least 20 mm, providing flexible yet compliant test execution.

With its accurate force control, realistic test simulation, and robust construction, this equipment offers dependable and repeatable assessment of marking endurance. It is an essential solution for EV connectors, electrical components, and industrial products where permanent, readable markings are critical for safety, compliance, and product quality.


Technical Parameters

Test station 2 stations
Force 5±1N,applied by a weight
Test piston NF C 61-314 figure 48,rayon, Shore-A hardness shore A 47± 5
Drive mode Electric
Test Cycle 0-9999 cycles, can be preset
Test speed One cycle/s (a cycle comprising forward and backward movement along the length of the marking)
Electrical control method Button control
Sample clamping method Mechanical clamping, clamping point position is adjustable
