IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
Specifications
Brand Name :
Sinuo
Model Number :
SN4411
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Export packing
Chamber internal diameter :
350mm diameter
Chamber internal height :
>400mm
Maximum pressing force :
4.0 bar
IP code test range :
IPX8 test
Tank material :
SUS304 stainless steel
Sample size :
W170mm*D90mm*H30mm
Drive :
External air compressor drive
Control :
PLC control
Description
High-Pressure Water Immersion Tank Automotive Component Waterproof IPX8 Test System
Complied Standards & Clauses

Conforms to IEC 60529:2013 IPX8 etc.

Product Overview

Designed to meet the stringent requirements of IEC 60529:2013, this high-pressure water tank provides a reliable and precise solution for IPX8 continuous immersion testing. It is widely used to verify the waterproof protection performance of enclosures for electronic and electrical products, automotive and motorcycle components, household appliances, seals, and lighting products.

Constructed from high-quality stainless steel, the tank ensures excellent durability and corrosion resistance. The system is fully PLC-controlled, allowing all test parameters—such as immersion depth, pressure, and duration—to be easily set and monitored via an intuitive touch-screen interface. With automatic water supply and pressure control, the equipment delivers stable, repeatable, and highly accurate test conditions, helping manufacturers and laboratories confidently evaluate product reliability under real-world immersion environments.

Technical Parameters
Pressure management methods Manual adjustment
Height inside the tank 590mm
Inner diameter of the tank 350mm
External dimensions of the tank Approximately 360mm in outer diameter * 900mm in height
Stainless steel tank thickness 5mm
Time control 1～99999S
Maximum limit pressure The settings are configurable at the factory. It features pressure switch protection, typically set to automatically vent when the pressure reaches 550 KPa.
Pressure display method The touchscreen display allows for pressure setting and pressure display via the touchscreen.
Pressure gauge adjustment range Atmospheric pressure to 500 kPa (1–50m water depth)
Control system Touch screen control

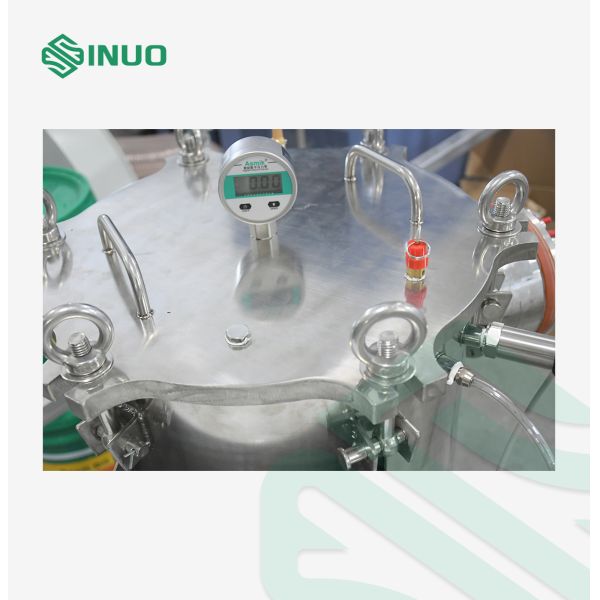

Pressure protection Spring-loaded safety relief valve; Program control: If the pressure exceeds the upper limit, the system immediately shuts down and releases the pressure.
Pressure release method Automatic pressure release after the test is completed.
Lid opening method Manual opening and closing
Pressurization system External air supply (to be provided by the user, ≥ 5 kg)
Features This water immersion test device is equipped with a pressure protection and explosion-proof device and a drainage and pressure relief device.
Container material 304 stainless steel
Safety and protection system Alarm sound notification
Equipment usage conditionsDrain pipe diameterPlease plan the equipment placement carefully, and install the circuit breaker nearby in advance. The drain pipe should be installed below the circuit breaker, and the drain pipe (1/2 inch pipe) should be installed close to the ground.
Power requirements

AC 220-240V, 50Hz±10%; Power: 1KW;

Install a separate 16A circuit breaker; the circuit breaker must have terminal blocks, and the power cord must be ≥2.5㎡
The pressure gauge reading corresponds to the water depth

0.1MPa=1Kg/cm²=10M；

0.2MPa=2Kg/cm²=20M；

0.3MPa=3Kg/cm²=30M；

0.4MPa=4Kg/cm²=40M；
Environmental conditions

Temperature: 15℃ to 35℃;

Relative humidity: 25% RH to 75% RH;

Atmospheric pressure: 86 kPa to 106 kPa
Drain pipe diameter

Please plan the equipment placement carefully, and install the circuit breaker nearby in advance. The drain pipe should be installed below the circuit breaker, and the drain pipe (1/2 inch pipe) should be installed close to the ground.
Details

IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test SystemIPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System
