Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Automatic EV Charging Gun Test System with PLC Control and MES Integration for Comprehensive Connector Testing
Specifications
Brand Name :
Sinuo
Model Number :
SNEQ08
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood box
Resistance Test Range :
1 – 5000Ω
Thermistor Test Range :
100 – 50,000Ω
Voltage Withstand Range :
AC 0 – 5kV/DC 0-6kV
Insulation Test Voltage :
DC 100 – 1000V
Insulation Resistance Range :
1MΩ – 1GΩ
Data Input Method :
Scanner (barcode/QR code)
Control System :
PLC + Industrial Computer
Computer Integration :
Supports MES integration (optional)
Description
AC/DC Electric Vehicle Charging Gun Test Equipment Comprehensive Test System
This advanced testing system performs comprehensive functionality checks on AC and DC charging guns that comply with Chinese, European, and American standards. Each charging gun is assigned a unique QR code for traceability, with test results automatically saved to detailed reports. The system supports printing of passing results and performs all functional tests automatically in a single operation.
Designed for maximum efficiency and minimal manual intervention, this system is ideal for full batch inspections in manufacturing facilities, ensuring consistent quality control and reliable performance verification.

Comprehensive Test Capabilities
  • Complete wire testing for breakage, continuity, short circuits, and wiring sequence verification
  • Main line continuity resistance measurement
  • Internal resistor testing including pushbutton functionality in both pressed and unpressed states
  • Electronic lock function verification
  • Inter-wire insulation testing
  • Inter-wire withstand voltage testing
  • Thermocouple wire functionality testing

Technical Specifications
Power Input Single-phase AC 220V / 50Hz
Air Supply Input 0.6 MPa
Control System PLC + Industrial Computer
Computer Integration Supports MES integration (optional)
Data Input Method Scanner (barcode/QR code)
Resistance Test Range 1 - 5000Ω, Accuracy: 1%
Thermistor Test Range 100 - 50,000Ω, Accuracy: 2%
Voltage Output (Drive) DC 12V (positive and negative), with continuity monitoring
Insulation Test Voltage DC 100 - 1000V (adjustable)
Insulation Resistance Range 1MΩ - 1GΩ, Accuracy: ±5%
Withstand Voltage Range AC 0 - 5k

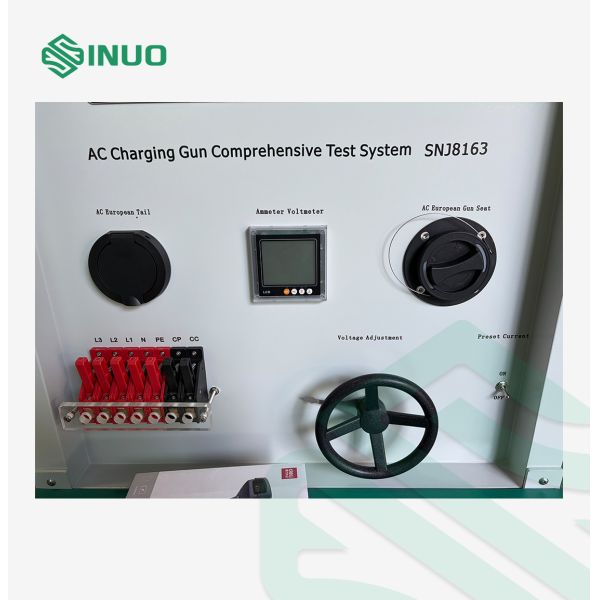

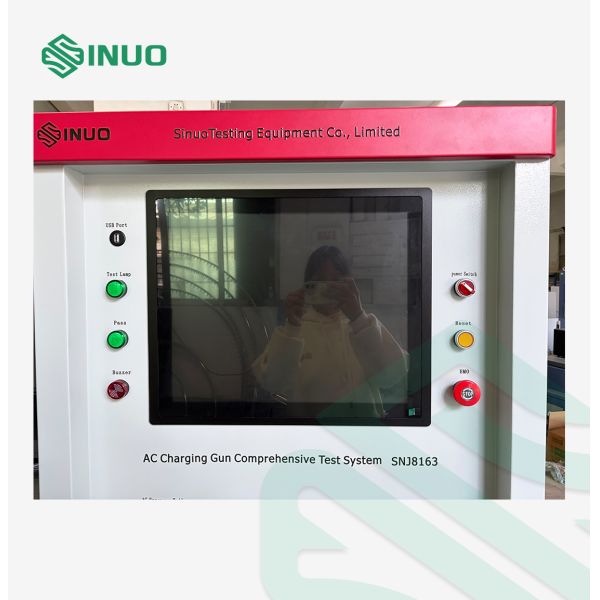

System Overview
