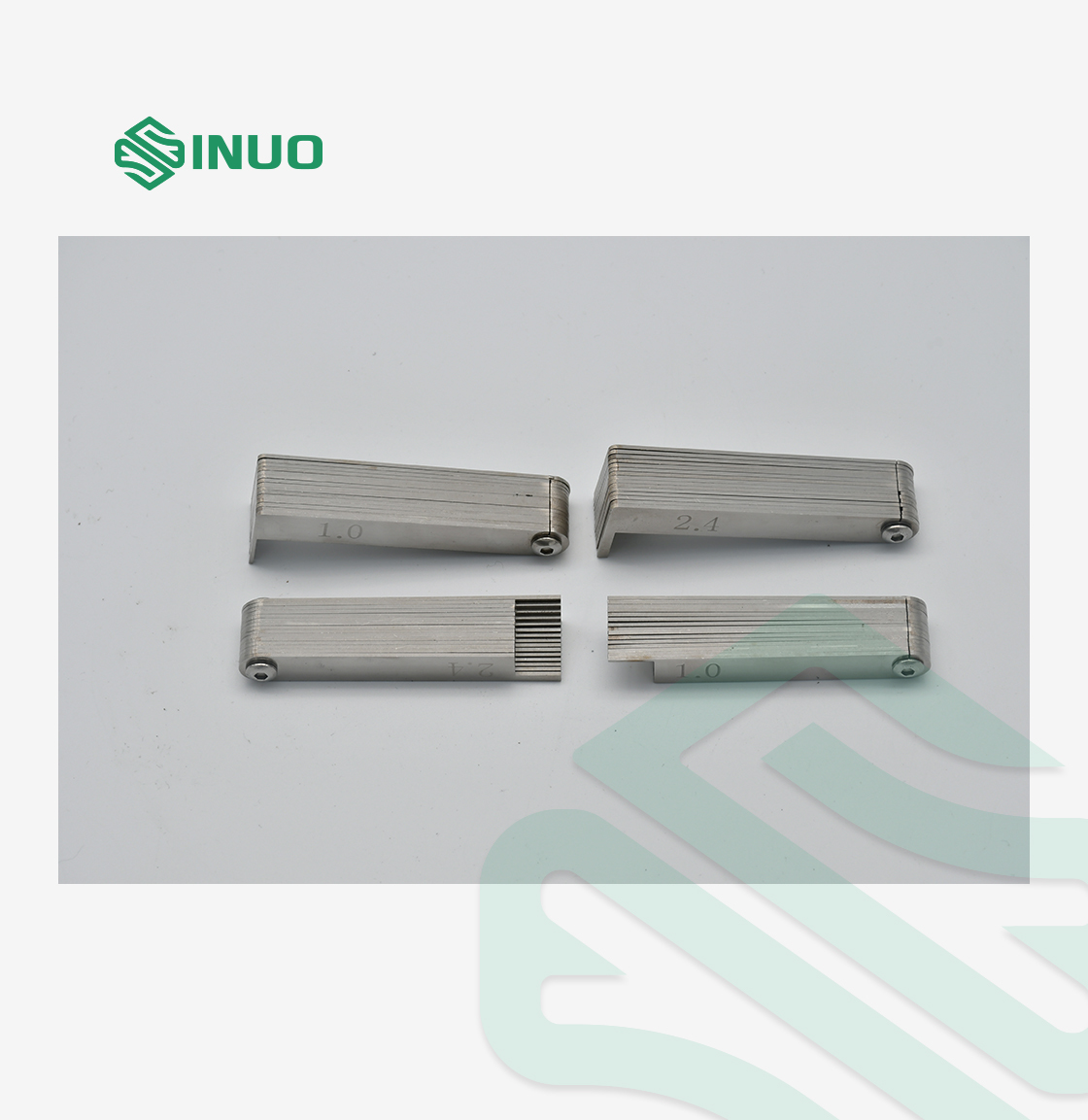

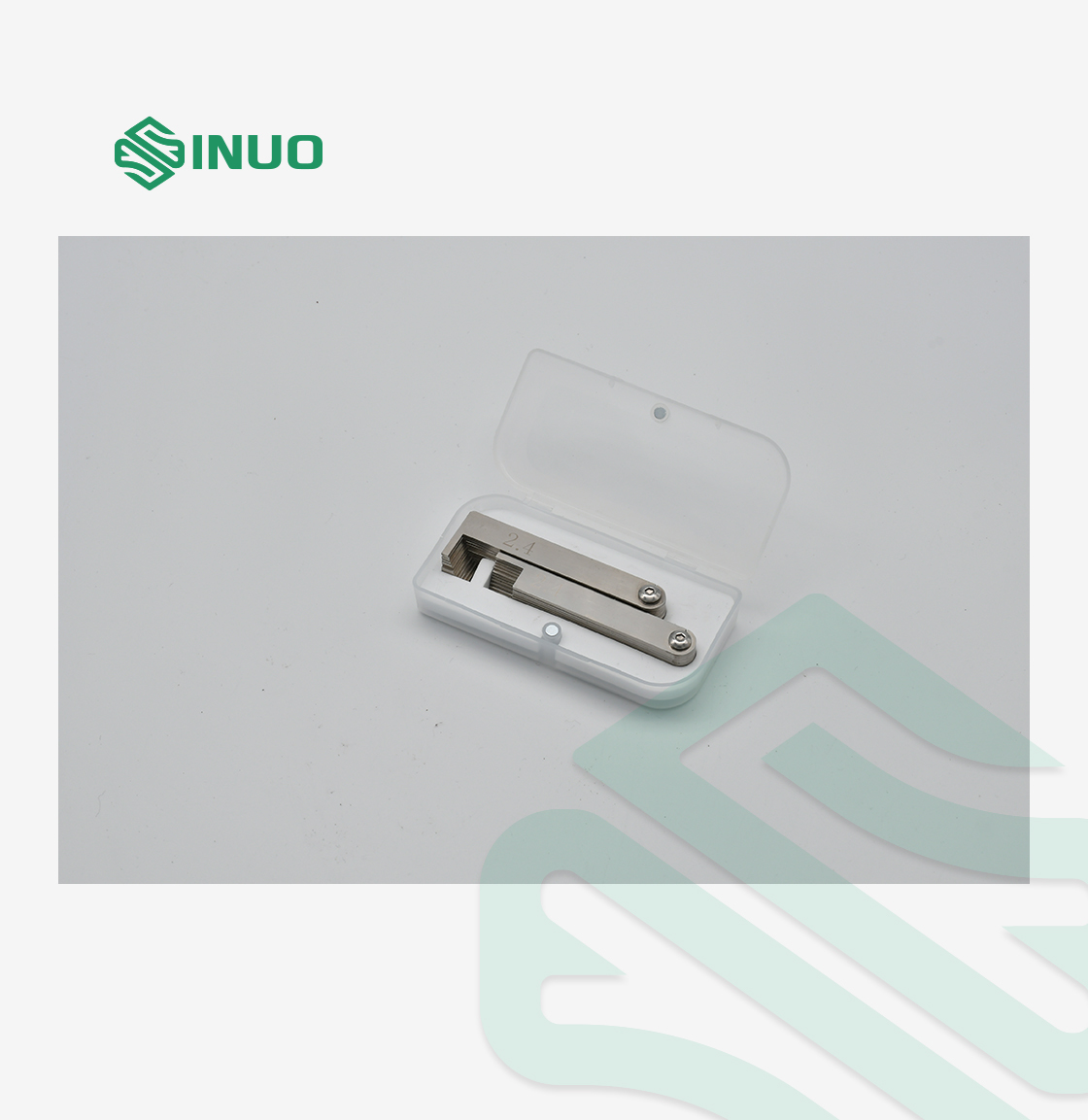

IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
Specifications
Payment Terms :
T/T
Model Number :
SN2134
Product Material :
Stainless Steel
MOQ :
1
Delivery Time :
10 working days
Product Type :
Creepage Distance Test Gauges
Price :
Customized
Test Sample :
Electrical Clearance of Appliances
Certification :
Calibration Certificate（Cost Additional）
Gauge Sizes :
1.0mm‑10.0mm
Place of Origin :
China
Gauge Quantity :
30 Pcs creepage distance gauges
Supply Ability :
90 Sets/month
Brand Name :
Sinuo
Standard :
IEC 62196-1
Packaging Details :
Carton boxed
Description

IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing

Complied Standards

IEC 62196-1 Ed.4CDV 2020 clause 28.

Product information:

These test gauges conform to IEC60598-1, IEC60335-1 Clause 29 and IEC60884-1 etc. They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing

Technical parameters:

Model No. Size Specification
SN2134

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/

1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm/2.5mm/2.8mm/3.2mm/3.6mm/

4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Total 30 creepage distance gauges
