Specifications
MOQ :
1
Delivery Time :
30 working days
Vibration Time :
1s–99 h, adjustable
Packaging Details :
Plywood Case
Dust Concentration :
2 kg/m³
Certification :
Calibration
Brand Name :
Sinuo
Model Number :
SN441-2000L
Payment Terms :
T/T
Fine Dust :
≤75 μm
Air Flow Meter :
1–20 L/min
Price :
Customized
Airflow Velocity :
≤2 m/s
Supply Ability :
10 Sets / Month
Dust Heating Temperature :
RT + 10°C to 60°C
Place of Origin :
China
Description
IEC 60529 Sand And Dust Test Chamber For Dust‑Resistance & Sealing Performance Test
Product Information

The equipment is used to test the dust resistance and sealing performance of electrical and electronic products, automotive and motorcycle components, and seals under dusty conditions. It evaluates product performance during operation, storage, and transportation, including the potential effects of airborne particles.

Working Principle

A conical funnel at the bottom collects the dust. A high-pressure turbine fan draws the dust upward and delivers it to the top of the chamber, where it falls freely onto the test sample. The dust is continuously circulated throughout the chamber.

Applicable Standards

The equipment complies with the following test requirements:

IEC 60529-13.4, EN 60598 and etc.

It is suitable for dust protection testing of household appliances, low-voltage electrical equipment, automobiles, motorcycles, and related components.

Technical Parameters
Working Chamber Size 2000*1000*1000 mm (W × D × H)
Overall Dimensions Approx. 2400 *1800 *2300 mm (W × D × H)
Sample Size IEC 60529 Sand And Dust Test Chamber For Dust‑Resistance & Sealing Performance Test
Dust Heating Temperature RT + 10°C to 60°C
Fine Dust ≤75 μm
Airflow Velocity ≤2 m/s
Dust Concentration 2 kg/m³
Talcum Powder Consumption 2–5 kg/m³
Dust Blowing Direction Top to bottom
Air Flow Meter 1–20 L/min
Wire Diameter 50 μm
Nominal Wire Spacing ≤75 μm
Vibration Time 1 s–99 h, adjustable
Test Timer 1 s–99 h, adjustable
Dust Blowing Cycle 1 s–99 h, adjustable
Vacuum Time 1 s–99 h, adjustable
Controller Functions Dust blowing time (stop/blow) adjustable in h/min/s; cycle period freely adjustable; preset test time: 0 s–999 h 99 min 99 s; power mode: OFF–ON–OFF
Circulation Fan Enclosed low-noise alloy motor with multi-blade centrifugal fan
Load Capacity 10 kg
Viewing Window 1 pc
Lighting 1 pc
Test Power Outlet Dustproof AC 220 V, 16 A socket
Control System PLC + Touchscreen (Teelong)
Vacuum System Pressure regulator, suction nozzle, three-piece regulator set, connecting tube, vacuum pump
Dust Heating System Stainless steel mica heating jacket
Inner Chamber Material SUS201 stainless steel mirror-finish panel
Outer Chamber Material A3 steel plate with electrostatic powder coating
Operating Environment
Power Supply AC 380 V, three-phase five-wire, 50 Hz; dedicated 32 A circuit breaker with terminals; power cable ≥4 mm²
Environmental Conditions Temperature: (23 ± 5)°C; Relative Humidity: 25–70% RH; Atmospheric Pressure: 86–106 kPa
Power 3 kW (no load)
Safety Protection Phase sequence protection, leakage protection, abnormal-condition protection, and instrument over-temperature protection
Product Details

IEC 60529 Sand And Dust Test Chamber For Dust‑Resistance & Sealing Performance Test

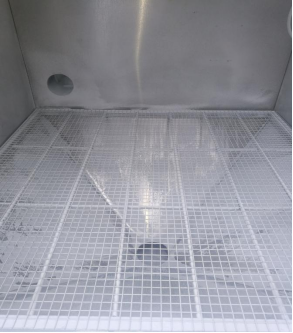

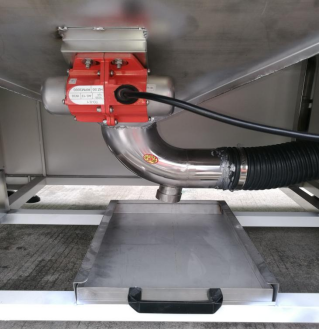

Internal Structure of the Sand and Dust Test Chamber

IEC 60529 Sand And Dust Test Chamber For Dust‑Resistance & Sealing Performance TestIEC 60529 Sand And Dust Test Chamber For Dust‑Resistance & Sealing Performance Test
