Specifications
MOQ :
1
Delivery Time :
30 Days
Pressure Accuracy :
Gas-liquid booster: 0.1MPa; Variable frequency water pump: 0.001MPa
Packaging Details :
Plywood Case
Model Number :
SN1125-2.5Mpa
Pressurization rate :
0.05~0.13MPa/s can be preset
Payment Terms :
T/T
Price :
Customized
Hold Time :
0-999999s can be set
Supply Ability :
10 sets per month
Place of Origin :
China
Water temperature :
RT+5℃~60℃ controllable (accuracy ±1℃)
Certification :
Calibration Certificate (Cost Additional)
Test pressure :
Gas-liquid booster: 0.5-2.5MPa; Variable frequency water pump: 0.001~0.5MPa
Brand Name :
Sinuo
Power supply :
Single phase AC 220V ±10%, 50Hz
Description

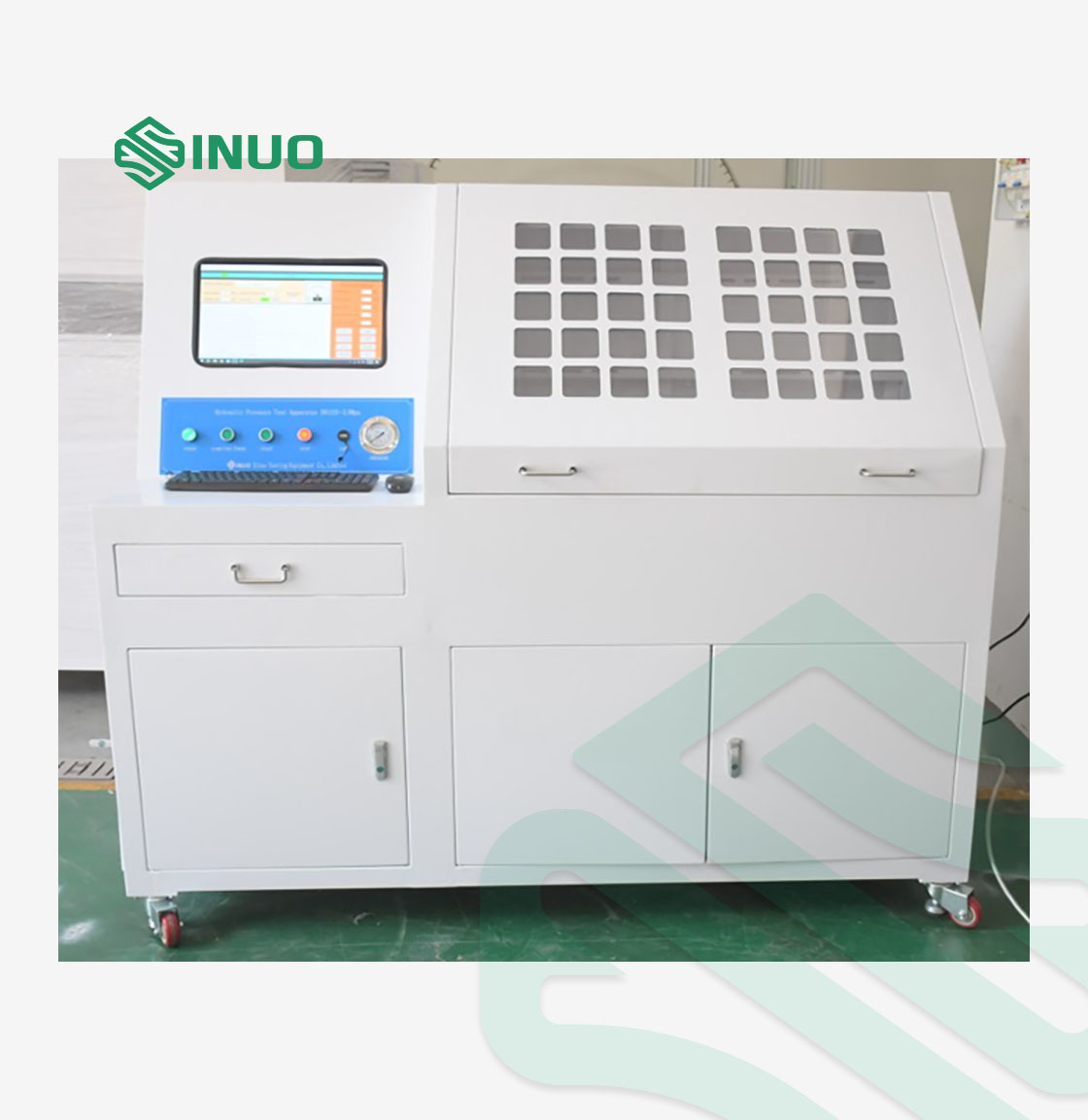

IEC 62368-1 Hydraulic Pressure Test Apparatus for Water Pressure Resistance Testing
Product Overview

The Hydraulic Pressure Test Apparatus is a professional pressure testing system designed for evaluating the water pressure resistance, hydraulic endurance, bursting performance, and sealing reliability of pressure-bearing components and household appliances.

The equipment is widely used in compliance testing laboratories and manufacturing facilities for products including water valves, water heaters, pumps, treated fabrics, heating appliances, plumbing components, and other liquid pressure-bearing assemblies.

Designed according to international safety testing requirements such as IEC 62368-1 Annex G.15 and related pressure tests, this hydraulic pressure tester provides accurate pressure control, automatic test operation, pressure curve monitoring, and test data recording.

The system integrates a pneumatic hydraulic booster pump and intelligent pressure regulation unit, ensuring stable pressurization performance and reliable repeatability for laboratory and production testing applications.

Key Features
● Automatic Computer-Controlled Pressure Testing System

Equipped with a touch-type computer control interface, the system allows users to preset test pressure, pressure holding time, pressure rising speed, and automatically record test results.

● High-Precision Pressure Regulation

The hydraulic system supports different pressure ranges through gas-liquid booster technology and variable frequency water pump control, providing flexible solutions for various testing requirements.

● Real-Time Pressure Curve Monitoring

The software can display pressure variation curves during testing and generate test records for quality analysis and traceability.

● Wide Application Range

Suitable for pressure resistance and leakage evaluation of household appliances, plumbing components, valves, containers, and other liquid-contact products.

● Stable Water Temperature Control

Integrated constant-temperature water tank provides controlled testing conditions for applications requiring specified water temperature.

IEC 62368-1 Hydraulic Pressure Test Apparatus for Water Pressure Resistance Testing

Technical Parameters:

No.: Contents Parameters
1 Power supply Single phase AC 220V ±10%, 50Hz
3 Operation interface Computer
4 Pressurized mode Air pressure
5 Test pressure

1. Gas-liquid booster: 0.5-2.5MPa;

2. Variable frequency water pump: 0.001~0.5MPa
6 Pressurization rate 0.05~0.13MPa/s can be preset
7 Hydraulic pressure control accuracy

1. Gas-liquid booster: 0.1MPa;

2. Variable frequency water pump: 0.001MPa
8 Water temperature RT+5℃~60℃ controllable (accuracy ±1℃)
9 Constant temperature water tank volume 30L
10 Pressure apply or hold time 0-999999s can be set
11 Use environment

Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80)%RH;

Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation
Why Choose Our Hydraulic Pressure Test Equipment?
  • Designed for IEC 62368-1 compliance testing
  • Professional solution for water pressure resistance and burst performance evaluation
  • Automatic pressure control with real-time monitoring
  • Suitable for laboratory certification and production quality inspection
  • Custom pressure range and fixture solutions available
