IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
Specifications
Capacitive Load :
70uf, 140uf,7.3uf are switchable
Test Times :
0~999999 times, can be preset
Certification :
Calibration Certificate (Cost Additional)
Output Power :
0～10KW, accuracy ±0.5%, digital display
Model Number :
SN2117
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Brand Name :
Sinuo
Supply Ability :
10 sets per month
Output Current :
Output Current
Place of Origin :
China
Payment Terms :
T/T
Output Voltage :
0～300V, accuracy ±0.5%, digital display
Test Station :
3 stations, independent output
MOQ :
1
Price :
Customized
Description
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
Product Overview

The Electrical Load Cabinet is designed for breaking capacity and endurance testing of switches, plugs, and socket-outlets according to international electrical safety requirements.

Complying with IEC 60884-1:2022 Clause 20 & 21 Figure 23 and IEC 60669-1:2017 Clause 18 & 19, this testing system simulates real operating conditions by applying controlled electrical loads to evaluate the reliability and durability of electrical connection devices.

It is widely used in electrical safety laboratories, certification organizations, and switchgear manufacturers to assess contact performance, switching durability, abnormal wear, overheating risks, and potential failures after repeated operation.

With integrated resistive, inductive, and capacitive load configurations, the system provides flexible testing conditions for household and similar fixed electrical installations.

Applicable Standards:
Standard Application
IEC 60884-1:2022 Clause 20 & 21 Figure 23 Plug and socket-outlet breaking capacity and normal operation testing
IEC 60669-1:2017 Clause 18 & 19 Switch breaking capacity and normal operation testing
Technical Parameters:
Power Supply Three-phase four-wire AC220 ± 10% / 60Hz.
Note: must have neutral wire.
Test Station 3 stations, independent output

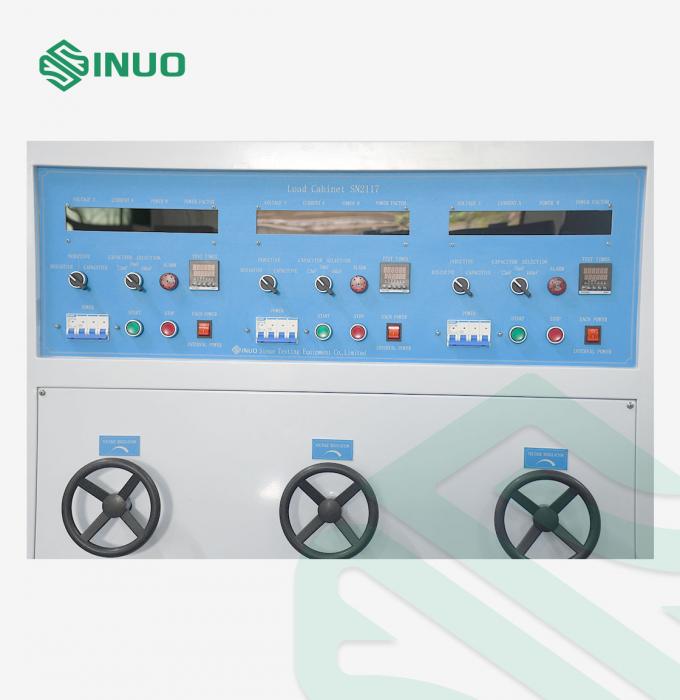

Electrical Control Method Button control
Output Voltage 0～300V, accuracy ±0.5%, digital display
Output Current 0～30A, accuracy ±0.5%, digital display
Power Factor 0.3～0.98, accuracy ±0.5%, digital display
Output Power 0～10KW, accuracy ±0.5%, digital display
Load Type Resistive, inductive, capacitive three-in-one, switchable
Capacitive Load 70uf, 140uf,7.3uf are switchable

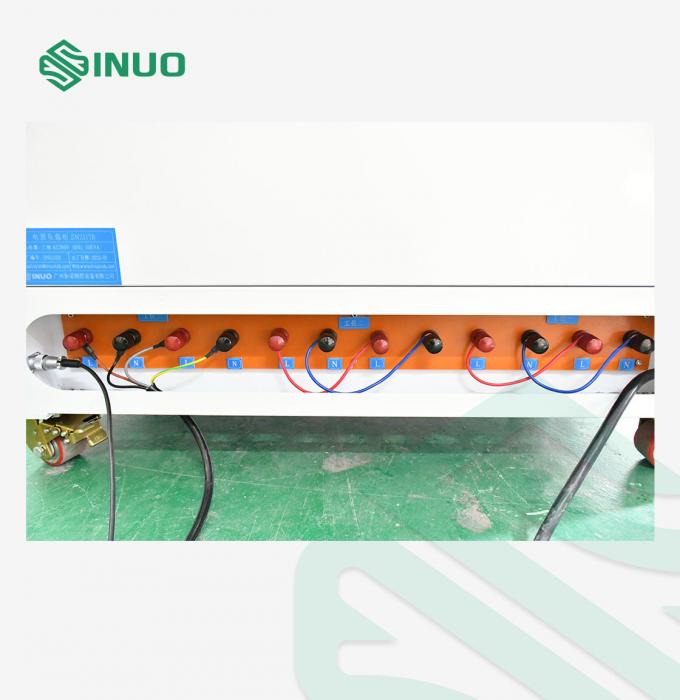

Load Output Optional for each load output and separate load output
Test Times 0~999999 times, can be preset
Load Power Supply Capacity 3*10KVA
Overrun Alarm Upper limit of output current is 30A, automatically cut off if over 32A
Dimensions & Weight Approximately:1200*800*1800(mm)W*D*H, 450kg
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
IEC 60884-1 Load Cabinet for Plug Socket Breaking Capacity and Endurance Testing
Why Choose SN2117 Load Cabinet?
  • Designed according to IEC 60884-1 and IEC 60669-1 requirements
  • Professional solution for switch and socket endurance testing
  • Supports resistive, inductive, and capacitive load simulation
  • Three independent testing channels improve efficiency
  • Accurate voltage, current, power, and power factor control
  • Suitable for global electrical safety laboratories and manufacturers
