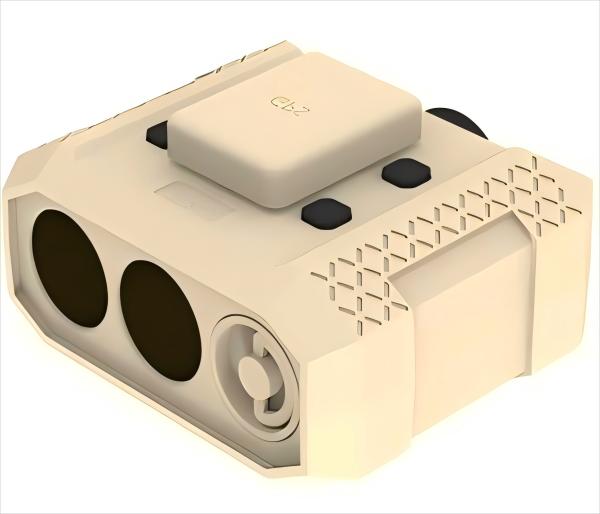

High Accuracy Laser Range Finder 0m-5000m Range with Clarity Adjustment Tripod Interface
High Accuracy Laser Range Finder 0m-5000m Range with Clarity Adjustment Tripod Interface
Specifications
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Description

Features:
1.Ultra-Long Measurement Range
0m to 5000m (±0.3m accuracy) with advanced DSP signal processing for reliable readings in extreme conditions.
2.Dynamic Clarity Adjustment
Auto-focus/Manual diopter for sharp reticle and target visualization across distances.
3.Tripod Interface
Standard 1/4"-20 threaded mount for rock-steady stabilization during precision ranging.
4.Military-Spec Laser (905nm)
Class 1 eye-safe laser with atmospheric penetration optimized for fog/rain.
6x-8x Magnification
Multi-coated ED glass optics minimize chromatic aberration.

Details

Model

5000X

Range

0m-5000m

Distance accuracy

±0.1m (15-300m) ±0.2m (300-600m) ±0.3m (600-1000m) ±1m (1000-5000m)

Distance display

built-in OLCD display

Magnification

8.0X

Field of view

6.8°

Kilometer field of view

110m

Eyepiece aperture

22mm

Exit pupil diameter

4.2mm

Objective & emission aperture

32mm

Receiving aperture

32mm

Exit pupil distance

24mm

Clarity adjustment

Yes

Diopter range (diopter)

±5 dpt

Transmittance

85%

Coating

Multi-layer optical coating

Objective lens focus compensation

Yes

Focus method

Eyepiece focus

Laser eye safety

Yes

Vertical angle

±0.1°

Azimuth

±1°

Temperature measurement range

-45°-130°

Data storage

100 groups

Dynamic speed measurement

18-300km/h

Static speed measurement

0-300km/h

Azimuth range

0 degrees-360 degrees

Vertical angle range

-90 degrees +90 degrees

Charging method

USB Type interface

Battery life

>3000h

Working temperature

-20C to +60C

Storage temperature

-40C to +80

Tripod interface

Yes

Size

115*105*65 mm

Measurement function

horizontal distance, straight distance, vertical distance, angle measurement, two-point height measurement, three-point height measurement, distance between any two points in space, horizontal distance between two points in space, azimuth measurement, speed measurement, volume area measurement, Bluetooth APP data transmission, temperature and humidity, sag measurement, air pressure altitude, GPS positioning

Tripod

Support

Power supply

18650 2000mah, 3.7v
