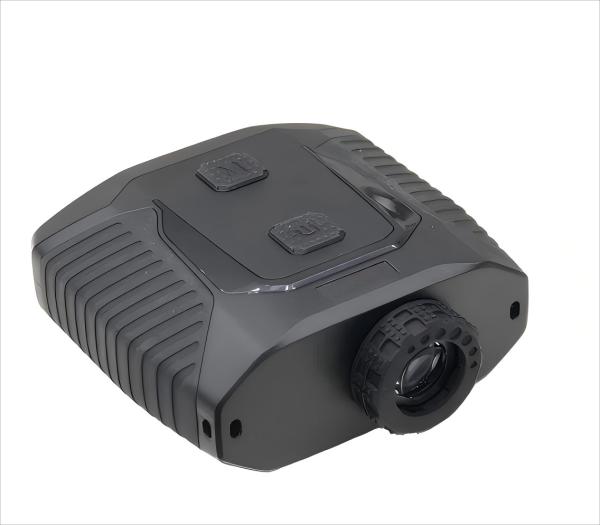

Advanced Laser Range Finder Lightweight 7X Magnification 10m-5000m Range With Bluetooth
Advanced Laser Range Finder Lightweight 7X Magnification 10m-5000m Range With Bluetooth
Specifications
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Description

Features:
1.Exceptional Measurement Range
10m to 5000m (±0.5m accuracy) – Industry-leading distance capability for extreme long-range applications.
2.Class 1, 905nm Laser
Eye-safe wavelength with superior atmospheric penetration (vs. 1550nm), effective in varied weather conditions.
3.7x Magnification Optics
High-quality, multi-coated lenses provide clear target acquisition with minimal distortion.
4.Advanced Ranging Modes
Scan Mode (continuous distance updates)
Fog Mode (enhanced signal processing for low-visibility conditions)
Slope Compensation (calculates angle-adjusted horizontal distance)

Details

Model

LF5000

Range measurement range

10~5000m

Measurement accuracy

±0.5m

Angle range

±90°

Angle accuracy

±0.25°

Laser type

905nm (Class 1 laser)

Magnification

7X

Objective diameter

24 mm

Effective eyepiece

16 mm

Exit pupil diameter

3.4 mm

Exit pupil distance

15.5 mm

Field of view

6.6°

Focus mode

Eyepiece focus

Measurement unit

Meters/yards

Vibration reminder

Yes

Flagpole lock

Yes

Data transmission hole

Yes

Bluetooth

Support

Distance measurement mode

Single measurement, continuous measurement, distance measurement, angle measurement, horizontal distance, vertical height, two-point height measurement

Battery

18650 (3.7V 2000mAh)

Tripod

1/4 inch threaded hole (standard camera tripod)

Product weight

223g (without battery)

Dimensions

101*99*46 (mm)
