EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
Specifications
Brand Name :
EVERGEAR
Model Number :
EK37~EK187
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$69
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999999
Delivery Time :
25-30Days
Packaging Details :
Export strong wooden case and pallet
Power range :
0.18KW-200KW
Ratio :
5-33000
Output Speed :
2.6-360rpm
Output torque :
200N.m-50000N.m
Input  speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm.
Output shaft diameter :
25mm-190mm
Reduction stage :
two transmission stages, three transmission stages
Mounting way :
foot mounted, shaft mounted, flange mounted，torque arm mount,shrink disc mount,spline shaft mount
Input way :
solid shaft input, hand wheel input, AC motor input, servo motor input
Output way :
Solid shaft , hollow shaft,shrink disc,spline shaft
Weight :
19KGS-1669KGS
Ambient temperature :
-15.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Description

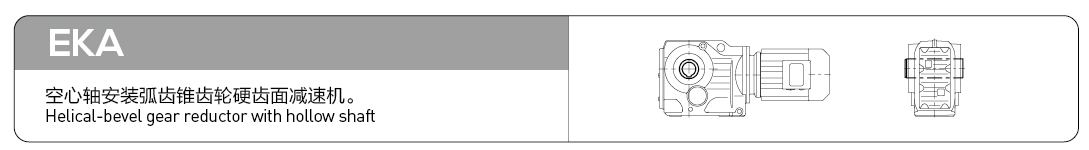

EKA Series Helical Bevel Gear Motor With Hollow Shaft
Product Overview
The EKA series helical bevel gear motor offers reliable power transmission with high efficiency and durability for industrial applications.
Available Models
EKA37, EKA47, EKA57, EKA67, EKA77, EKA87, EKA97, EKA107, EKA127, EKA157, EKA167, EKA187
Technical Specifications
Model EKA 37 EKA 47 EKA 57 EKA 67 EKA 77 EKA 87
Structure Form EK/EKAB/EKF/EKAF/EKA/EKAT/EKAZ/EK..ER/EK..S
Input Power (KW) 0.18-3 0.18-3 0.18-5.5 0.18-5.5 0.25-11 0.37-22
Ratio 5.14-106.3 5.83-128.33 7.71-146.36 7.12-142.31 8.98-191.87 8.78-195.55
Permissible Torque (Nm) 200 400 600 820 1550 2700
Weight (KGS) 19 26 29 33.5 62 103
Model EKA 97 EKA 107 EKA 127 EKA 157 EKA 167 EKA187
Structure Form EK/EKAB/EKF/EKAF/EKA/EKAT/EKAZ/EK..ER/EK..S
Input Power (KW) 0.75-30 1.5-45 4-90 5.5-200 7.5-200 15-200
Ratio 10.19-166.25 8.48-151.36 8.41-141.28 12.92-138.57 20.59-158.88 16.53-174.72
Permissible Torque (Nm) 4300 8000 13000 18000 32000 50000
Weight (KGS) 170 275 437 679 1110 1736
Product Images
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft

EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft

Need More Technical Data?
Contact us online for detailed technical specifications and custom solutions.
