EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
EK Series Helical Bevel Gear Motor
Specifications
Brand Name :
EVERGEAR
Model Number :
EK37~EK187
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$69
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999999
Delivery Time :
25-30Days
Packaging Details :
Export strong wooden case and pallet
Power range :
0.18KW-200KW
Ratio :
5-33000
Output Speed :
2.6-360rpm
Output torque :
200N.m-50000N.m
Input  speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm.
Output shaft diameter :
25mm-190mm
Reduction stage :
two transmission stages, three transmission stages

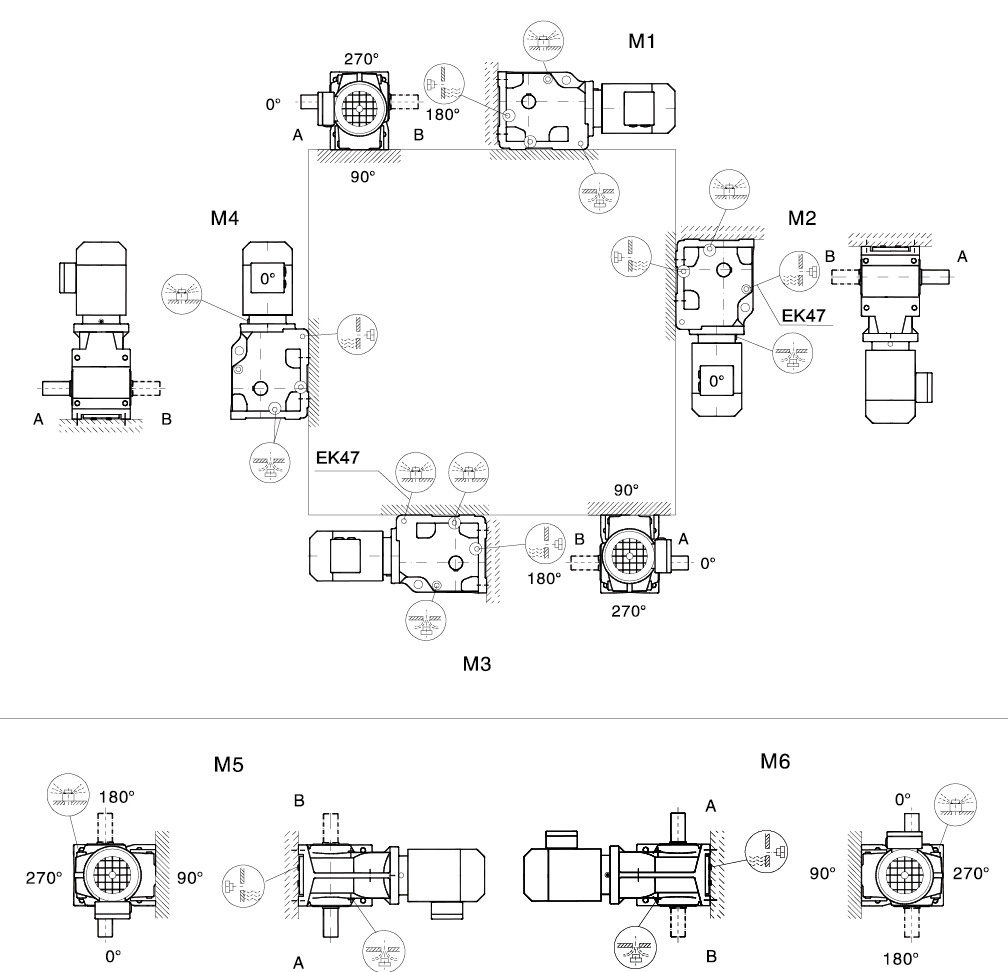

Mounting way :
foot mounted, shaft mounted, flange mounted，torque arm mount,shrink disc mount,spline shaft mount
Input way :
solid shaft input, hand wheel input, AC motor input, servo motor input
Output way :
Solid shaft , hollow shaft,shrink disc,spline shaft
Weight :
19KGS-1669KGS
Ambient temperature :
-15.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Description

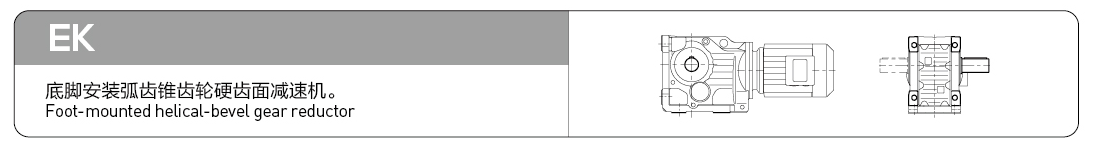

Model: EK series helical bevel gear motor

Size: EK37, EK47, EK57, EK67, EK77, EK87, EK97, EK107, EK127, EK157, EK167, EK187

Model selection table:

Model EK 37 EK 47 EK 57 EK 67 EK 77 EK 87
Structure form EK/EKAB /EKF/EKAF/EKA /EKAT/EKAZ/EK..ER/EK..S
Input power(KW) 0.18-3 0.18-3 0.18-5.5 0.18-5.5 0.25-11 0.37-22
Ratio 5.14-106.3 5.83-128.33 7.71-146.36 7.12-142.31 8.98-191.87 8.78-195.55
Permissible torque(Nm) 200 400 600 820 1550 2700

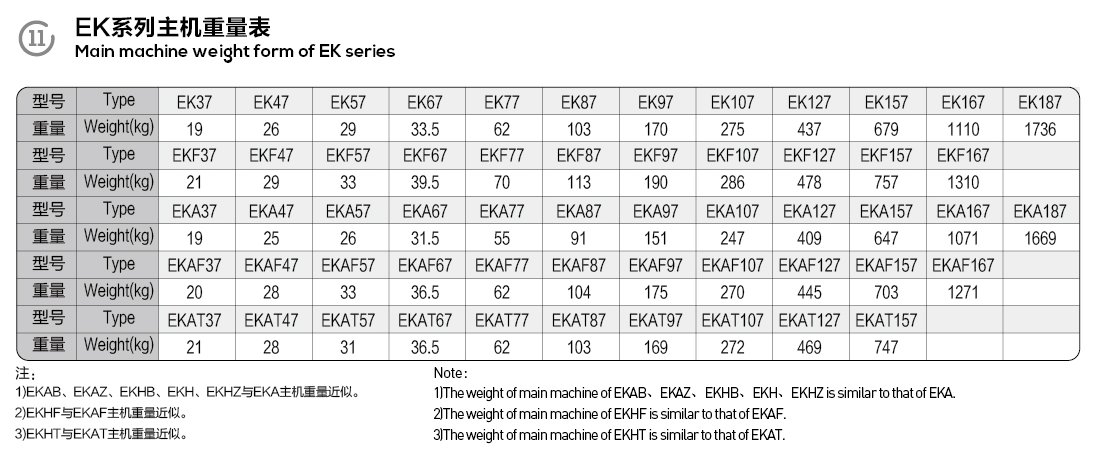

Weight(KGS) 19 26 29 33.5 62 103
Model EK 97 EK 107 EK 127 EK 157 EK 167 EK 187
Structure form MTJ/MTJAB /MTJF/MTJAF/MTJA /MTJAT/MTJAZ/MTJ..MTD/MTJ..S
Input power(KW) 0.75-30 1.5-45 4-90 5.5-200 7.5-200 15-200
Ratio 10.19-166.25 8.48-151.36 8.41-141.28 12.92-138.57 20.59-158.88 16.53-174.72
Permissible torque(Nm) 4300 8000 13000 18000 32000 50000
weight(KGS) 170 275 437 679 1110 1736

EK Series Helical Bevel Gear Motor

EK Series Helical Bevel Gear Motor

EK Series Helical Bevel Gear Motor

EK Series Helical Bevel Gear Motor

EK Series Helical Bevel Gear Motor


EK Series Helical Bevel Gear Motor

EK Series Helical Bevel Gear Motor

EK Series Helical Bevel Gear Motor

If you need more technical data, welcome to contact us online!
