EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
Specifications
Brand Name :
EVERGEAR
Model Number :
EF37~EF157
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$59
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999999
Delivery Time :
25-30 Days
Packaging Details :
Export Strong wooden case and pallet
Power range :
0.18KW-200KW
Ratio :
4.81-259.74
Output Speed :
0.12-310rpm
Output torque :
200N.m-18000N.m
Input  speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Output shaft diameter :
25mm-120mm
Mounting way :
foot mounted, shaft mounted, flange mounted,shrink disc mounted,Buffer rubber mount,Backstop mount
Input way :
Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input
Output way :
Solid shaft , Two side output shaft ,hollow shaft, Shrink disc etc
Weight :
19KGS-679KGS
Ambient temperature :
-15.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Description
EFA Series Parallel Shaft Helical Gear Motor
Product Overview
The EF Series parallel shaft helical gear motor offers reliable power transmission with high efficiency and durability for industrial applications.
Available Models
EFA37, EFA47, EFA57, EFA67, EFA77, EFA87, EFA97, EFA107, EFA127, EFA157
Technical Specifications
Model EFA 37 EFA 47 EFA 57 EFA 67 EFA 77

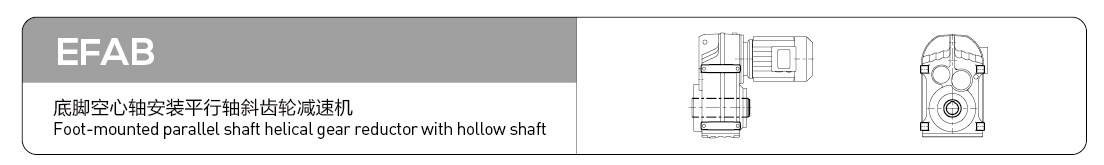

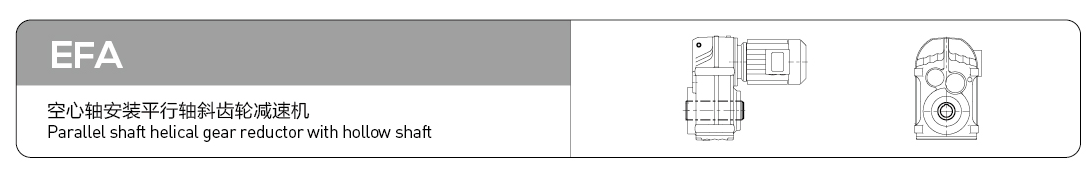

Structure Form EF/EFAB/EFF/EFA/EFAF/EFAZ
Input Power (KW) 0.18-3 0.18-3 0.18-5.5 0.18-5.5 0.18-11
Ratio 4.81-111.63 6.85-148.5 4.92-199.7 5.07-195.1 5.7-286.59
Permissible Torque (Nm) 200 400 600 820 1500
Weight (KGS) 19 25 29 35 62.5
Model EFA 87 EFA 97 EFA 107 EFA 127 EFA 157
Structure Form EF/EFAB/EFF/EFA/EFAF/EFAZ
Input Power (KW) 0.37-22 0.55-30 0.75-45 4-90 5.5-200
Ratio 5.31-268.37 4.36-227.85 5.5-248.6 5.11-172.24 11.92-259.74
Permissible Torque (Nm) 3000 4300 7840 12000 18000

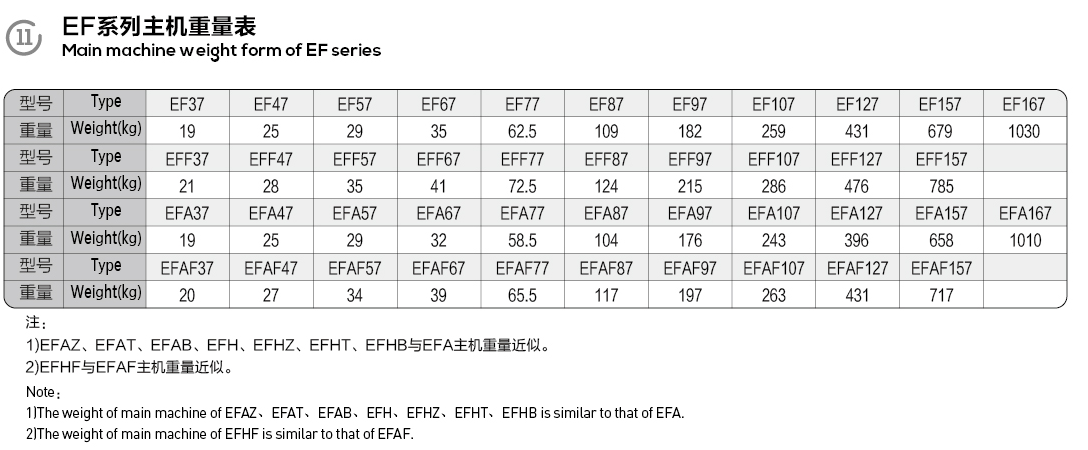

Weight (KGS) 109 182 259 431 679
Product Images
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque

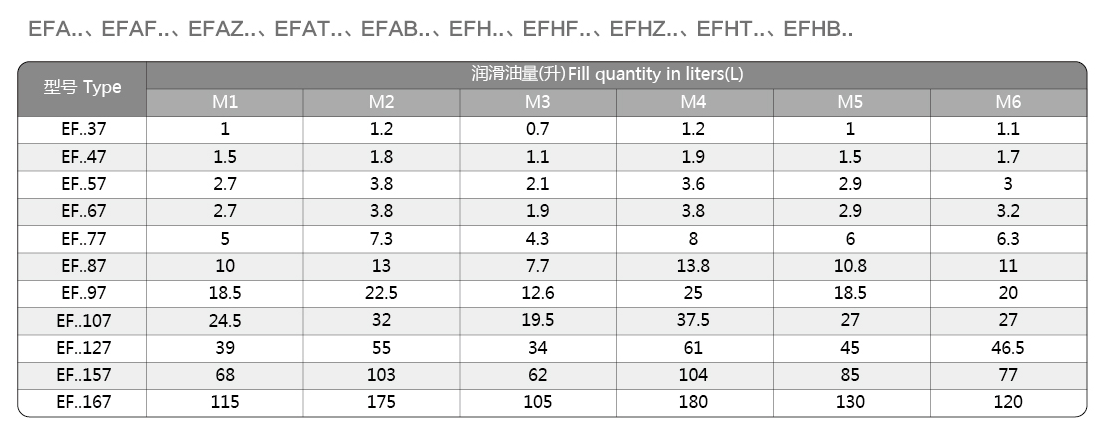

Gear oil quantity filled with gearbox:ISO VG220/320 Mineral Oil or Synthetic Oil
EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque

For detailed technical data and custom specifications, please contact our engineering team for professional assistance.
