EF series parallel shaft helical gear motor
EF series parallel shaft helical gear motor
EF series parallel shaft helical gear motor
EF series parallel shaft helical gear motor
EF series parallel shaft helical gear motor
EF series parallel shaft helical gear motor
Specifications
Brand Name :
EVERGEAR
Model Number :
EF37~EF157
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$59
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999999
Delivery Time :
25-30 Days
Packaging Details :
Export Strong wooden case and pallet
Power range :
0.18KW-200KW
Ratio :
4.81-259.74
Output Speed :
0.12-310rpm
Output torque :
200N.m-18000N.m
Input  speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Output shaft diameter :
25mm-120mm
Mounting way :

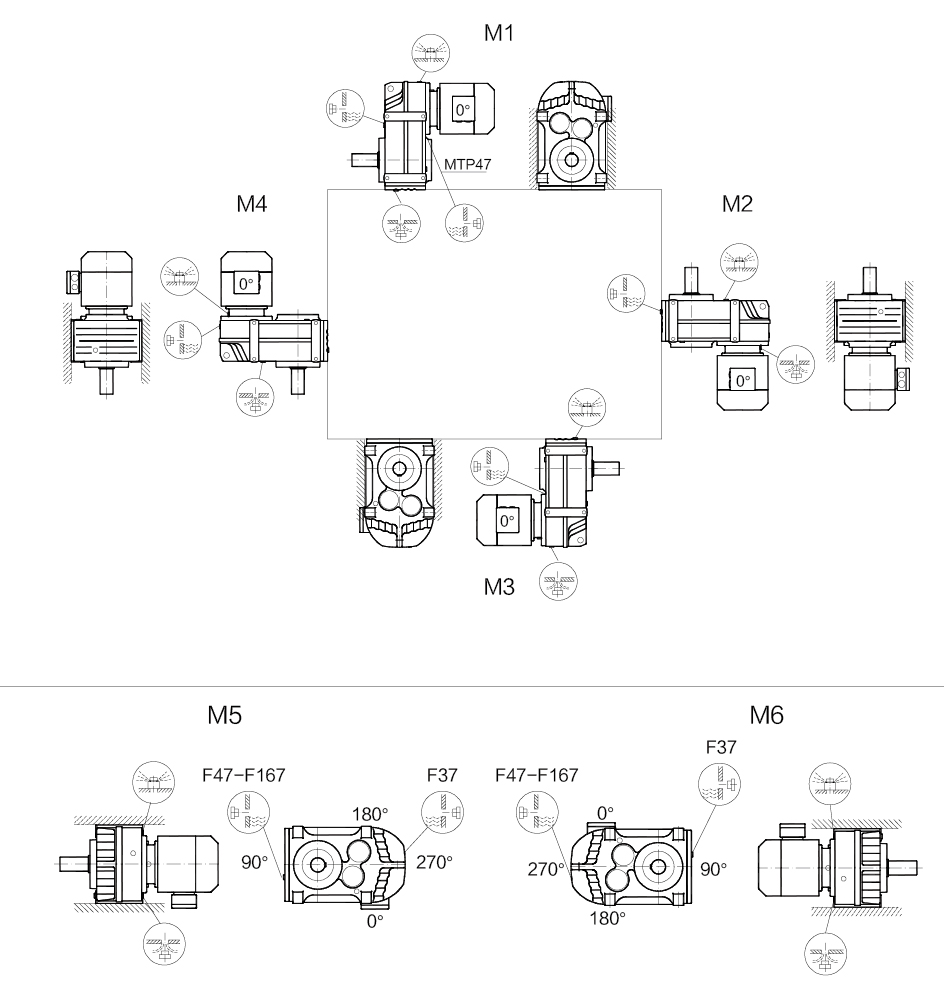

foot mounted, shaft mounted, flange mounted,shrink disc mounted,Buffer rubber mount,Backstop mount
Input way :
Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input
Output way :
Solid shaft , Two side output shaft ,hollow shaft, Shrink disc etc
Weight :
19KGS-679KGS
Ambient temperature :
-15.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Description

Model: EF series parallel shaft helical gear motor

Size: EF37, EF47, EF57, EF67, EF77, EF87, EF97, EF107, EF127, EF157

Model selection table:

Model EF 37 EF 47 EF 57 EF 67 EF 77

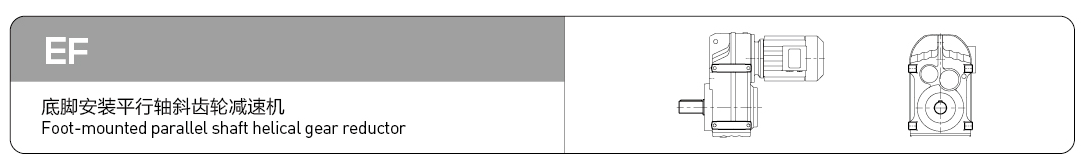

Structure form EF/EFAB /EFF/EFA/EFAF/EFAZ
Input power(KW) 0.18-3 0.18-3 0.18-5.5 0.18-5.5 0.18-11
Ratio 4.81-111.63 6.85-148.5 4.92-199.7 5.07-195.1 5.7-286.59
Permissible torque(Nm) 200 400 600 820 1500
Weight(KGS) 19 25 29 35 62.5
Model EF 87 EF 97 EF 107 EF 127 EF 157
Structure form EF/EFAB /EFF/EFA/EFAF/EFAZ
Input power(KW) 0.37-22 0.55-30 0.75-45 4-90 5.5-200
Ratio 5.31-268.37 4.36-227.85 5.5-248.6 5.11-172.24 11.92-259.74
Permissible torque(Nm) 3000 4300 7840 12000 18000

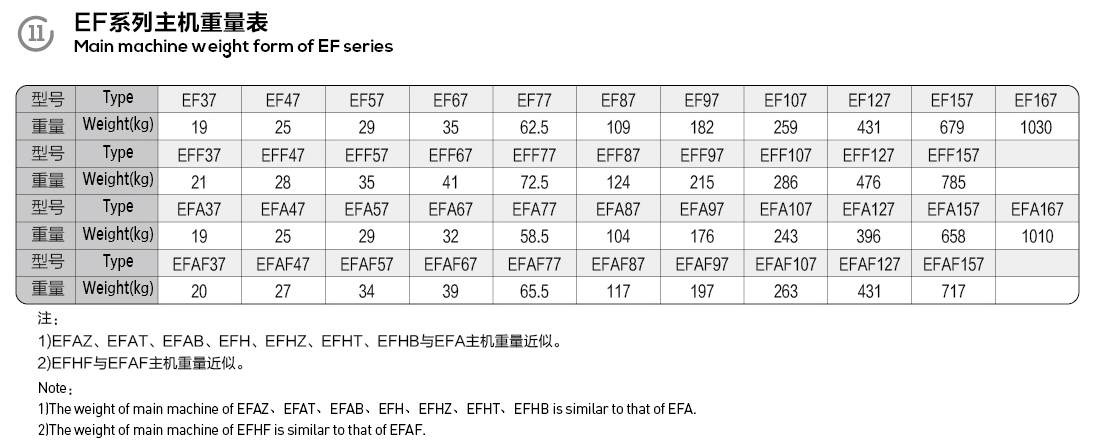

Weight(KGS) 109 182 259 431 679

EF series parallel shaft helical gear motor

EF series parallel shaft helical gear motor



EF series parallel shaft helical gear motor

EF series parallel shaft helical gear motor

EF series parallel shaft helical gear motor

EF series parallel shaft helical gear motor

EF series parallel shaft helical gear motor

EF series parallel shaft helical gear motor

If you need more technical data, welcome to contact us online!
