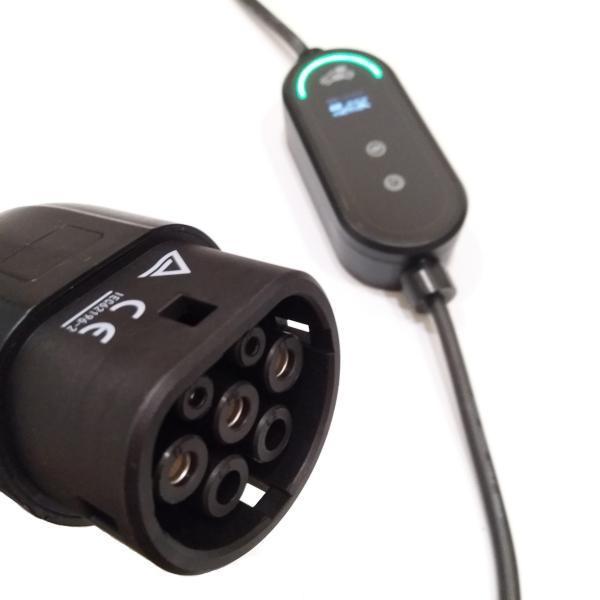

3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
3 Phase 11kW Portable EV Charger with 5m Cable IP67
Specifications
Brand Name :
ANS
Model Number :
EVA11B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
3 Phase 11kw Portable EV Charger
Type :
Portable EV charger
Weiht :
3.2kg
Rated Frequency :
50Hz/60Hz
Charging cable :
5m
Cable Colour :
Black or Customization
Protection :
IP67
Description

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

Meet the EVA11B—a powerful 11kW portable EV charger engineered for high-performance electric vehicles and 3 phase power systems.

Operating at 400V AC with a maximum output of 11kW , this charger delivers faster charging speeds ideal for EVs with larger batteries. It complies with IEC 62752:2016/COR1:2019 and carries CE certification, ensuring top-tier safety and compatibility across European markets.

The EVA11B integrates full protection mechanisms including over/under voltage, overload, short circuit, leakage, over-temperature, and lightning protection, plus a built-in Type B RCD for maximum safety. Despite its high power, it remains portable at just 3.2kg and features a compact, rugged design with an IP67 rating, performing reliably in temperatures from -30°C to 60°C. With an intuitive OLED screen, adjustable current, delay charging, and a 5-meter cable, the EVA11B brings professional-grade charging to your fingertips.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA11B
Input/Output voltage AC 400V
Input frequency 50/60Hz
Max.output power 3-Phase up to 11kW(@400V 16A)
Max.output current 16A for 3- Phase
Standard IEC 62752:2016/COR1:2019
Protection
Certificate CE
Over voltage protection Yes
Under voltage protection Yes
Over load protection Yes
Short circuit protection Yes
Leakage protection Yes
Over - temp protection Yes
Lightning protection Yes
Function and Accessory
LED indicators Yes
OLED screen Yes
RCD Type B
Current adjustment Yes
Delay charging adjustment Yes
Ethernet/WIFI/4G/Bluetooth No
Working environment
Protection degree IP 67
Operation temperature -30℃ - 60℃
Relative humidity ≤95%RH
Operating elevation limit ≤2000m
Cooling Natural air cooling
Standby power consumption <0.5W
Mechanical parameters
Charging cable 5m (Standard configuration)
Control box H×W×D = 200mm×90mm×52mm
Weight ≤3.2kg
Colour&Material Black;Tempered Glass,PC


Features

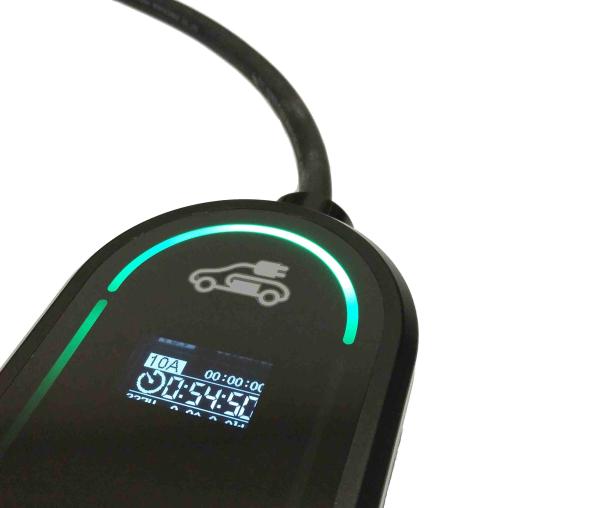

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

3 Phase 11kW Portable EV Charger with 5m Cable IP67

3 Phase 11kW Portable EV Charger with 5m Cable IP67

LED Indicators

3 Phase 11kW Portable EV Charger with 5m Cable IP67

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install​

3 Phase 11kW Portable EV Charger with 5m Cable IP67

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.


Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
