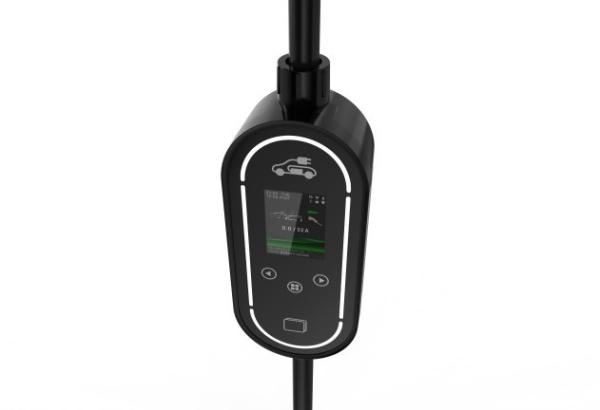

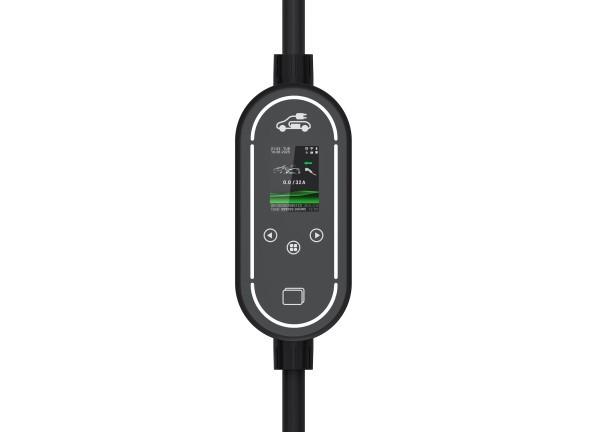

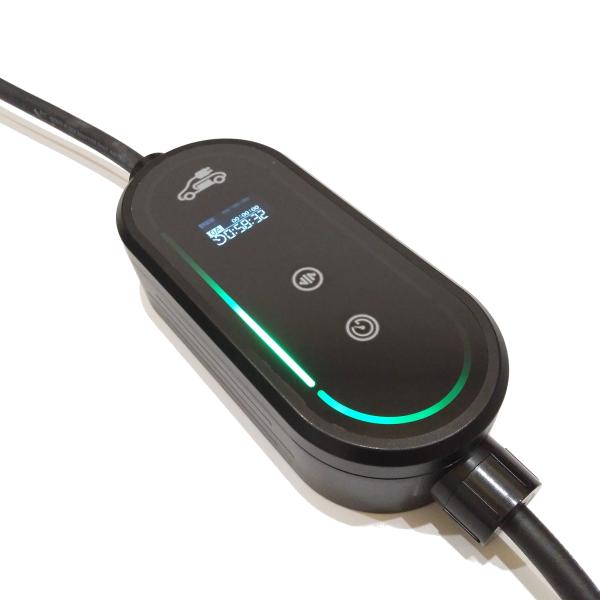

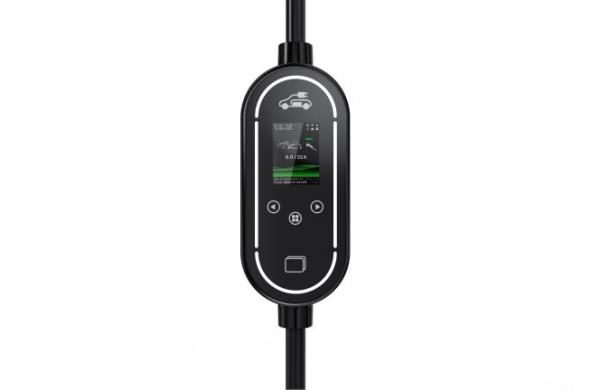

New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
Specifications
Brand Name :
ANS
Model Number :
ANS-EVB
Certification :
CE/RoHS/REACH/NTL
Place of Origin :
China
MOQ :
1pcs
Price :
USD90-160
Payment Terms :
T/T, Western Union,Paypal, L/C
Supply Ability :
600pcs/day
Delivery Time :
10-30days
Packaging Details :
Carton box. Carton size: 43*43*21cm
Product Name :
portable ev charger
Cable Length :
5M or customized
Input/Output voltage :
AC110V/230V
Max.output current :
16A for 3-Phase
Max.output power :
1-Phase up to 11kW(@400V 16A)
Standard :
IEC 62752:2016/COR1:2019
RCD Protection :
Type B Protection
Delay charging adjustment :
Yes
Protection degree :
IP67
Description

New Portable EV Charger 2.4 Inch Screen with APP Bluetooth WIFI RFID Card Intelligent Car Charger


This EV portable chargers is type 2 with schuko plug, max 16A, 18 foot cable with ControlBox, a portable and simple charging solution when you travel or you are away from a traditional charging station. The charger allows you to charge your electric/hybrid vehicle's type 2 port via the schuko plug. Equipped with overvoltage, overheat and overcurrent protection. Indicators on the charging station help to show the stages of charging and show errors.

Specification

Input/Output voltageAC110V/230V/400V
Input frequency50/60Hz
Max.output power1-Phase up to 3.7kW(@400V 16A)
Max.output current16A for 3-Phase
Standard16A for 1-Phase
CertificateEN62752

Function and Accessory
LED indicators
30 RGB LED lights
Display Screen
2.4-inch OLED screen
RCD
Type B
Current adjustment
Yes
Delay charging adjustment
Yes
Working environment
Protection degreeIP 67
Operation temperature-30℃~+60℃
Relative humidity≤95%RH
Operating elevation limit≤2000m
CoolingNatural air cooling
Standby power consumption<0.5W


Protection

Over voltage protectionYes
Under voltage protectionYes
Overload protectionYes
Short circuit protectionYes
Leakage protectionYes
Over-temp protectionYes
Lightning protectionYes

Mechanical parameters
Charging cable
5m (Standard configuration)
Control box
HxWxD=200mm*90mm*52mm
Weight
3.0kg
Colour&Materia
Black;Tempered Glass,PC


Product Information

New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger

Date and Time,Charging time,Consumption(kWh)
Charging voltage / current / power,Total electricity(kWh),Temperature
Multi national language selection
Current adjustable from 6A to 16A in steps of 1A
Appointment for charging (based on week and time)
The screen and LED can automatically turn off according to the set time
APP remote control (Bluetooth and WIFI)
Charging mode (RFID/APP/Password/Plug and Play)
Charging history (up to 30 records)
Load control, adjustable phase number and current (ModBus TCP)
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
Setting display
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
Data&time
If the device is used for the first time or has not been used for more
than 20 days, please set the date and time after turning it on.
Incorrect time will affect the scheduled charging function.
Display
The LCD brightness can be adjusted from 10% to 100%.
Turn off the screen after the set delay time without touching the button,
If Off-LED is enabled, the LED will turn off simultaneously with the LCD.
PIN setting
When the PIN is turned on, PIN code needs to be entered to check the
Menu, and the icon on the status display page will light up.
Reservation
Three reservations can be set, reservation can be achieved between
the start and end times. If the stop charging is enabled, charging will
pause upon the stop time; otherwise, it will continue until the battery
is fully charged, and it needs to meet the week setting. After the
reservation is enabled, the icon on the status display page
will light up.
Charge mode
Once Plug & charge is enabled, you can start charging when the vehicle
plug connected, no other authorization required.
Charging history
The device can store up to 30 records, which can
be viewed through the left and right buttons (turn
orange and touch the button).
RFID management
RFID can be added or disabled, with maximum of six cards added
and saved.
Wi-Fi
The device needs to be set with wireless name and password through
the APP, and you can also set static IP address. The ChargeID and
URL for OCPP need to be set via the APP.
OCPP setup steps:
1. Successfully bind the charger with APP via Bluetooth.
2. Set up WiFi to successfully connect to the network.
3. Configure OCPP parameters on the settings page using the APP.
4. Enable OCPP on the charger's LCD.
Load balancing
The device can be communicated through ModBus TCP in WiFi mode.
After enabling load balancing, control the current during the charging
process through the enabled communication mode.
Start charging
1 Connect the power plug of the charger to a grounded outlet, wait
for the device to enter charging standby.
2 Couple the vehicle-end connector of the device to the vehicle's
charging port.
3. Enter the reservation page( If reservation is enabled ). Swipe
RFID, use APP or enter PIN to skip countdown for charging.
4 Wait for the vehicle authorization signal, and then enter the
charging mode.
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
Stop charging
1 Stop the charging process at the controls inside the vehicle, this
releases the lock on vehicle's charging coupling.
2.First disconnect the connector coupled to the vehicle, then unplug
the connector plug from the power socket or the charging station.
APP Overview
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger


Certification

New Portable EV Charger with 2.4 Inch Screen APP Bluetooth WIFI RFID Card Intelligent Car Charger
