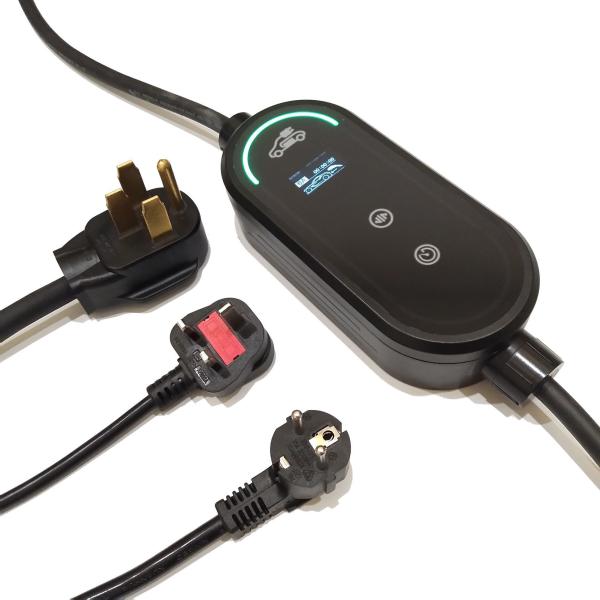

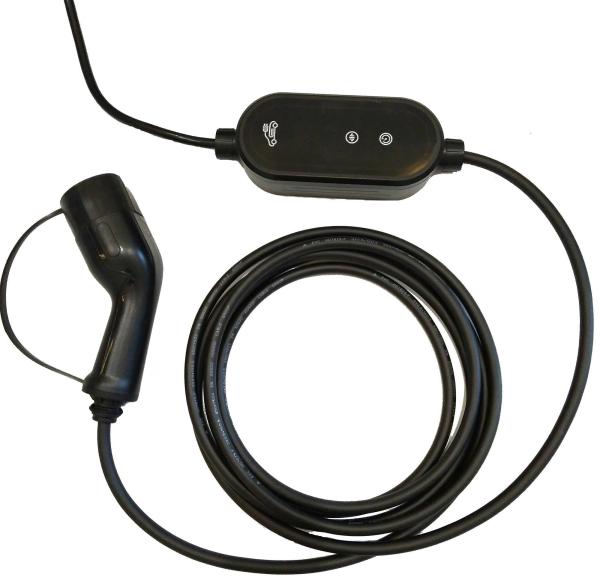

16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
16A IP67 Portable EV Charger 3.7kW 110V/230V
Specifications
Brand Name :
ANS
Model Number :
EVA03B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
IP67 3kw Portable EV Charger
Type :
Portable EV charger
Rated Current: :
16A
Rated Frequency :
50Hz/60Hz
Storage Temperature :
-30 ℃ to +50℃
Stardard :
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017
Cable Colour :
Black or Customization
Protection :
IP67
Input/Output voltage :
AC110V/230V
Description

IP67 3kw 1-Phase Portable Home Ev Charger AC110V/230V

Product Description

Safety is a top priority with the EVA03B portable EV charger. It integrates seven key protection mechanisms: over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection. The built-in Type B RCD offers enhanced electrical safety, preventing electric shock hazards. With an IP87 rating, it operates reliably in harsh environments, from -30°C to 60°C, and up to 95% humidity. Its standby power consumption is below 0.5W, promoting energy efficiency. Whether used in rain or shine, the EVA03B delivers peace of mind for every EV owner.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA03B
Input/Output voltage AC 110V/230V
Input frequency 50/60Hz
Max.output power 1 - Phase up to 3.7kW(@230V 16A)
Max.output current 16A for 1 - Phase
Standard IEC 62752:2016/COR1:2019
Protection
Certificate CE
Over voltage protection Yes
Under voltage protection Yes
Over load protection Yes
Short circuit protection Yes
Leakage protection Yes
Over - temp protection Yes
Lightning protection Yes
Function and Accessory
LED indicators Yes
OLED screen Yes
RCD Type B
Current adjustment Yes
Delay charging adjustment Yes
Ethernet/WIFI/4G/Bluetooth No
Working environment
Protection degree IP 67
Operation temperature -30℃ - 60℃
Relative humidity ≤95%RH
Operating elevation limit ≤2000m
Cooling Natural air cooling
Standby power consumption <0.5W
Mechanical parameters
Charging cable 5m (Standard configuration)
Control box H×W×D = 200mm×90mm×52mm
Weight ≤2.1kg
Colour&Material Black;Tempered Glass,PC


Features

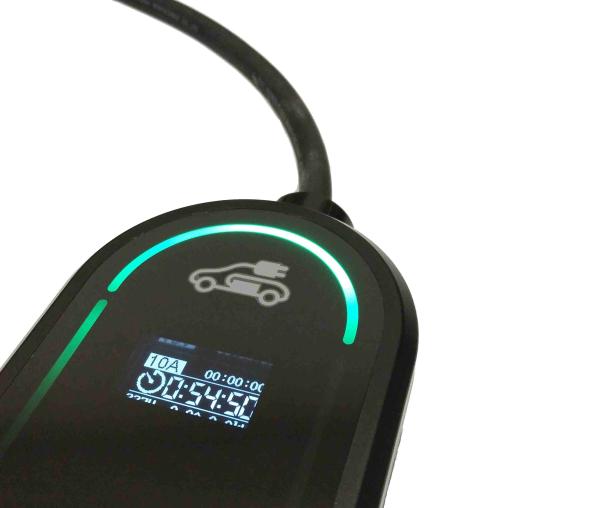

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

16A IP67 Portable EV Charger 3.7kW 110V/230V

16A IP67 Portable EV Charger 3.7kW 110V/230V

LED Indicators

16A IP67 Portable EV Charger 3.7kW 110V/230V

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

Packaging

16A IP67 Portable EV Charger 3.7kW 110V/230V


Our Certification

16A IP67 Portable EV Charger 3.7kW 110V/230V


Exhibition
16A IP67 Portable EV Charger 3.7kW 110V/230V

Visits from Various Countries (looking forward to your arrival)

16A IP67 Portable EV Charger 3.7kW 110V/230V
