Three Phase 11kW 16A Home EV Charger 400V
Three Phase 11kW 16A Home EV Charger 400V
Three Phase 11kW 16A Home EV Charger 400V
Three Phase 11kW 16A Home EV Charger 400V
Three Phase 11kW 16A Home EV Charger 400V
Three Phase 11kW 16A Home EV Charger 400V
Specifications
Brand Name :
ANS
Model Number :
EVB11B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/month
Delivery Time :
20-30days
Packaging Details :
15.7*15*3.15(in)
Product name :
11kw Home EV Charger
Type :
Home EV charger
Weiht :
3kg
WIFI :
2.5GHz
Key Feature :
2.4 inch LCD Screen
Cable Colour :
Black or Customization
Protection :
IP67
Description

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

The EVB11B Home Fast Charging Station revolutionizes at-home EV charging by delivering professional-grade power in a compact, user-friendly design. Engineered specifically for residential use, this 11kW charging solution can fully recharge most electric vehicles overnight, with many models achieving complete charges in just 4-6 hours - up to three times faster than standard Level 1 chargers.

Featuring intelligent power management, the EVB11B automatically adjusts charging current from 6A to 16A, preventing circuit overload while optimizing charging speed for your home's electrical capacity. The sleek control box with IP67 rating ensures reliable outdoor performance, perfectly suited for driveway or garage installation. Its 5-meter charging cable provides ample reach, while the flame-retardant, UV-resistant housing maintains integrity through years of exposure.

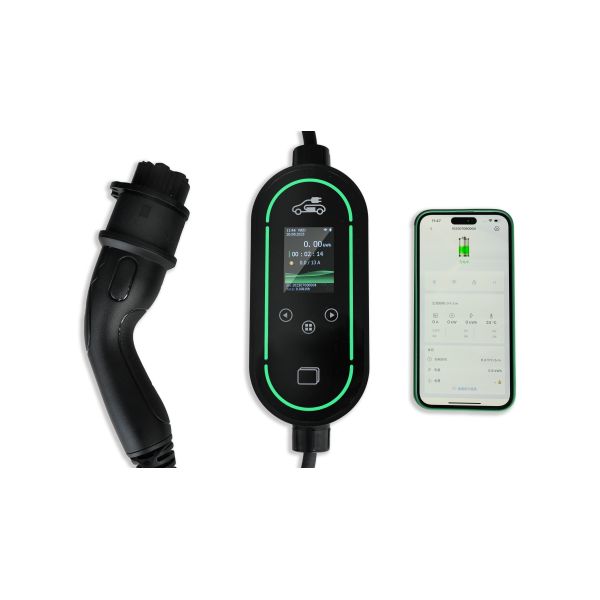

Smart connectivity transforms your charging experience. Through intuitive mobile app control via WiFi/Bluetooth, homeowners can schedule charging sessions during off-peak hours for maximum cost savings, monitor real-time energy consumption, and receive charging completion alerts. The 2.4-inch LCD display clearly shows charging progress, voltage, power, and accumulated energy costs. Multiple security layers, including RFID authentication and password protection, ensure that only authorized users can access the charging functions. With comprehensive safety certifications and Type B RCD protection (AC 30mA+DC 6mA), the EVB11B provides enterprise-level safety for family use, making premium home EV charging accessible and worry-free.

Core Points:

  • 3-phase 400V input, up to 11kW output power

  • Type B RCD with AC/DC leakage protection

  • Current adjustable from 6A to 16A

  • IP67 rated for indoor/outdoor use

Specificaiton

Product Model EVB011B
Input/Output voltage AC 400V
Input frequency 50/60Hz
Max.output power 3 - Phase up to 11kW(@400V 16A)
Max.output current 16A for 3 - Phase
Standard IEC 62752:2016/COR1:2019
Certificate CE,RoHS
Protection
Over voltage protection Yes
Under voltage protection Yes
Over load protection Yes
Short circuit protection Yes
Leakage protection Yes
Over - temp protection Yes
Lightning protection Yes
Function and Accessory
LED indicators Yes
Led screen 2.4-inch
RCD Type B((AC 30mA+DC 6mA)
Current adjustment Yes
Relay adhesion detection Yes
RFID manageable Yes
WIFI/Bluetooth Yes(WIFI 2.4GHz)
Working environment
Protection degree IP 67
Operation temperature -30℃ - 55℃
Relative humidity ≤95%RH
Operating elevation limit ≤2000m
Cooling Natural air cooling
Standby power consumption <3W
Mechanical parameters
Charging cable 5m (Standard configuration)
Control box H×W×D = 200mm×90mm×52mm
Weight ≤3kg
Colour Black
Material PC(Flame retardant, UV resistant)


Three Phase 11kW 16A Home EV Charger 400V

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install​

Three Phase 11kW 16A Home EV Charger 400V

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.


Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

Three Phase 11kW 16A Home EV Charger 400V

Packaging

Three Phase 11kW 16A Home EV Charger 400V


Our Certification

Three Phase 11kW 16A Home EV Charger 400V


Exhibition
Three Phase 11kW 16A Home EV Charger 400V

Visits from Various Countries (looking forward to your arrival)

Three Phase 11kW 16A Home EV Charger 400V
