High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A
High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A
High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A
High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A
Specifications
Place of Origin :
China
Brand Name :
Energy Splendor
Model Number :
ES-AF-45
Packaging Details :
carton
Supply Ability :
1000 Piece/Pieces per Month
Price :
USD
Certification :
CE
MOQ :
1
Delivery Time :
7-30days
Type :
Dc Ev Charging
Networking :
2G,4G,WIFI,Applets
Screen :
7inch LCD Colorful Touchable Screen
Charger Method :
Swipe Card,mobile App
Description

High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A

Description

Product Description
High Power 60-240kw Single/Double Commercial Split Fast Dc Ac Ev Charger
Output Power: 60KW
Outlet: Single/Double outlet
Charging standard developed from ISO15118/DIN70121
OCPP1.6J.
All components come with CE certificate.
SECC controller pass TUV test.
Make the load balance within a charging staion.
The fast charger is developed mainly for public commercial use with its modern appearance design and user-friendly operation interface. The modular design and overall output power can be configured arbitrarily function can reduce the drive waiting time, enhance the utilization rate of the charger and also easy to operate and do maintenance.

Applications

This product integrates charging interface, communication, billing, and human-computer interaction for fast charging of electric vehicles. It is suitable for sanitation and clean vehicles, operating taxis, urban electric public buses, tourist electric scenic buses, etc., and fixed and centralized management. Application scenarios.

Company introduction

Energy splendor is a professional company selling electric products and electric energy vehicle charging products, such as wall-mounted distribution boxes, portable distribution boxes, couplers, industrial sockets, plugs, power overhaul boxes, and electric energy vehicle charging guns, charging piles, and accessories customized plug, cable, etc. Our factory is located in Wenzhou, Zhejiang.
Products are in line with IEC60309-1, and IEC60309-2 international standards, at the same time in line with GB/T 11918-2014, GB/T 11919-2014 national standard requirements, and through the European Germany RWE CE certification, products are in line with RoHS. We are committed to providing customers with quality products and services, as well as suitable product strategies for customers, to help customers get a bigger market.

specifications

Product number
DC-45KW
DC-60KW
DC-80KW
Detailed specification
rated power
45KW
60KW
80KW
Charging equipment
User Interface
7 inch LCD color display touch screen
installation
Floor-standing/Down in down out
Routing mode device size
635*423*1600(mm)
Input voltage
AC380V±20%
Input frequency
45~65Hz
The output voltage
200-750VDC
Single gun output current range
200V-500V
200V-500V
200V-500V
The output voltage
0-90A
0-120A
0-160A
Single gun output current range
200V-750V
200V-750V
200V-750V
The output voltage
0-60A
0-80A
0-107A
Charging equipment
Single gun output current range
0-112A
0-150A
/
Cable length
5m
Electrical index
Measurement accuracy
Level 0.5
Current limit protection value
≥110%
Voltage regulation accuracy
≤±0.5%
Steady flow accuracy
≤±1%
Ripple coefficient
≤±0.5%
effectiveness
≥94.5%
Power factor
≥0.99 (50% load or more)
Harmonic content THD
≤5% (50% load or more)
feature design
HMI
7 inch LCD color display touch screen, LED indicator
Charging mode
Auto full / fixed power / fixed amount / fixed time
payment method
Credit card payment / APP payment / scan code payment
Communication Interface
Ethernet 2/3/4G (optional)
Safety design
Executive standard
GBT 20234, GB/T 18487, GB/T 27930, NBT 33008
security function
Charge gun temperature detection,overvoltage protection,
undervoltage protection,overload protection,
short circuit protection, grounding protection,
over temperature protection,low temperature protection,
insulation monitoring protection,
polarity reverse connection protection,
lightning protection,emergency stop protection,
leakage protection
Environmental indicators
Operating temperature
-25°C~+50°C
Working humidity
5%~95% non-condensing cream
Working elevation
<3000m
Protection level
IP54
cooling method
Forced air cooling
Noise control
≤60dB
MTBF
100,000 hours

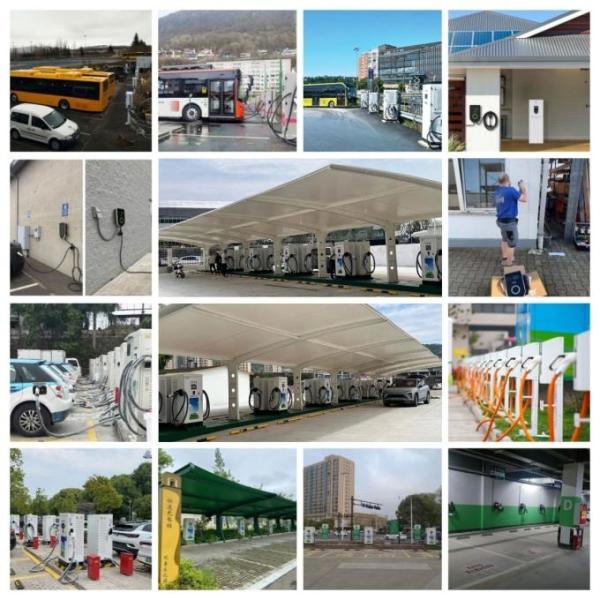

Application scenario display

The Best electric Car Charging Station products have been sold to dozens of countries, including the United Kingdom, France, Spain, and the United Arab Emirates, providing high-quality services to thousands of customers worldwide.

High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A

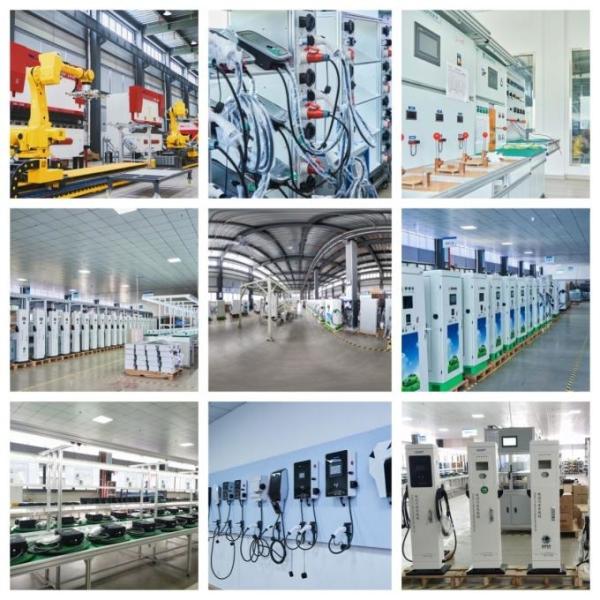

Factory Display

ANENGJI (CHENGDU) NEW ENERGY CO., LTD is engaged in the research, development, and manufacturing of charging station technology. As of now, the company has a range of products and technologies, including 7-44KW AC charging stations and 30-960KW DC charging stations that meet the requirements of Europe, the United States, Japan, the Middle East, and other countries. The company continues to invest in the research and development of cutting-edge technologies such as ultra-fast charging and vehicle-to-grid (V2G). The products have obtained dozens of patents as well as certifications including CE, TUV, CSA, and FCC.

High Power Output 120kW DC EV Charger CCS2 Fast Charging Station 0-250A
