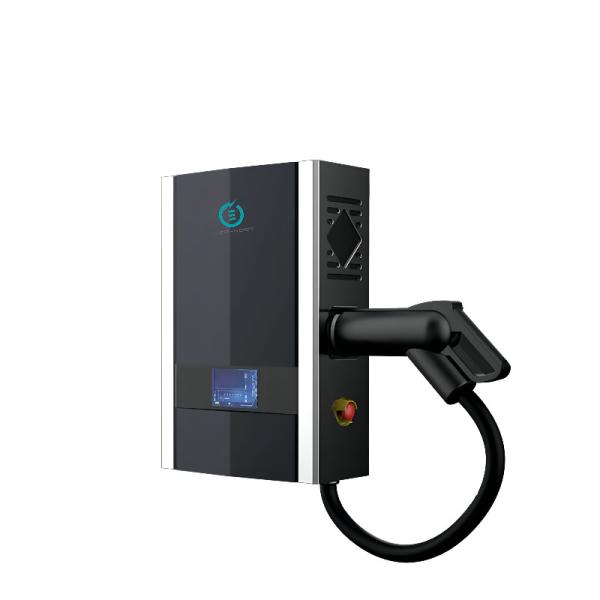

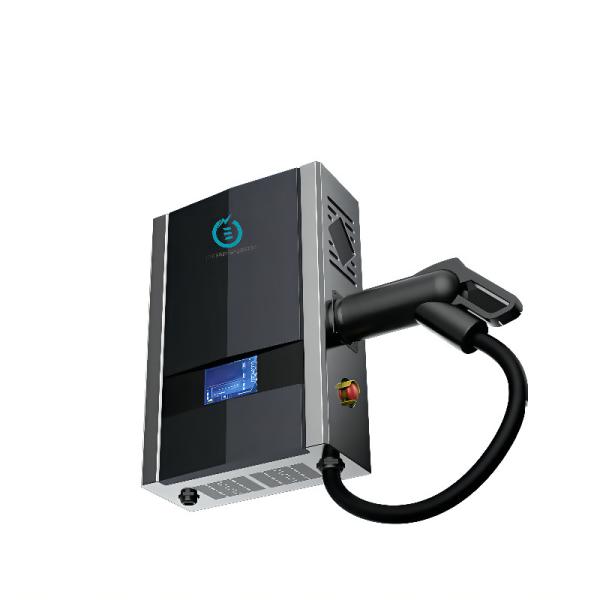

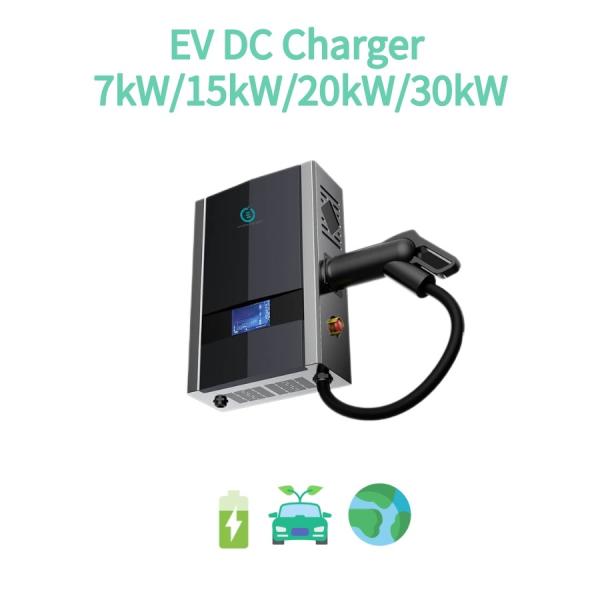

30kW DC Wall-mounted Electric Car Charging Station CCS

Product Desciption:

30KW Wallbox DC EV charger with CCS and CHAdeMO dual connectors EV charging station

380V 400V 480V 30kW IP54 CCS and CHAdeMO EV charging station for car is the most advanced Electric Vehicle Charging Station currently available. Its modular design construction allows for free configuration of power modules and electrical components - increase the output power from 45kW to 90kW or even higher, application of a Ethernet/WiFi/3g/4g communication or RFID card reader.

This series chargers can be operated stably in various application scenarios and environments, even if low or high temperatures.

Warranty & Service:

1. OEM/ODM

ODM your own logo, OEM the LED menu and other special requirement.

2. TRAINING

Electronic user manual and we also provide one to one online training for your installation and

operation.

3. Product Automatic Inspection

The charger has the function of automatic inspection. If any issue occur, it will send the error code to the backstage

automatically.Then we can find out the exact problem as well as the solution.

4.Software Upgrade.

Our technology team will be keep following and working on the software to make sure all the chargers apply to the newest version

including the PCR-OCPP platform.

5. Two Years Quality Warranty

We will provide free parts for your replacement for Non-human damage during this period.

FEATURES:

• Indoor/Outdoor rated enclosure

• Interactive touch screen

• SAE J1772 /IEC62196compliant

• RFID validation interface

• 2G/3G/4G, WiFi and Ethernet capable (optional)

• Advanced safe&efficient AC-AC charging system

• Backstage data management and metering system (optional)

• Smartphone APP for status changes and notifications (optional)

Safety---30KW DC wallbox EV charging station

• Auto de-energized when fully charged

• Short circuit and ground fault protection

• Connector parts are de-energized until latched in EV inlet

• Overvoltage, undervoltage, overcurrent and undercurrent protection

• Insulation test before charging

• Auto restart after ground fault or main power loss

• Protection against electric shock

With some charging stations successfully applied in the United States and Europe, we are confident to reach more customers and cooperation around the world.

SPECIFICATION:

CAUTION:

1. Don't submerge the ev charging box in water;

2. Don't step on, fold or knot the cable;

3. Don't drop the EV charging box or place a heavy object on it;

4. Don't place the charging cable near high temperature object when charging；

5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；

6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；

It is suggested that the power distribution is done by the professionals；

7. Don't put fingers into the charging connector when the power plug is still connecting to the

power;

8. Don't use this EV charging box when the cable is damaged;

9. The ev charging box is only for ev charging using;

10. Don't use this device with an extension cord or adaptor
