High Voltage Cables Charging Connector CCS2 Charging Adapter 400/750VDC Flame Retardant Grade Ul94 V-0

CCS1 CCS2 Charging Adapter 400/750VDC

Product Desciption:

Features: AC Charging Plug ,Vehicle End Plug, New Energy, European standard,AC,16A Products complies with GB/T20234-2011 standard; Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating). Humanized design with a good grasp feel, easy to use. Various accessories available, protection cap include damping cap, metal string cap,etc. The plug and socket termination type is wire crimping.

usage:

For connection between high voltage cables in electric vehicles.

application:

High voltage connections for car chargers, high voltage distribution boxes, motor controllers, air conditioners, PTCs, batteries, etc., can also be used for short circuit control.

technical parameter:

Electrical properties

Rated current and contact resistance:

Rated Voltage: 250/440V AC, 750V DC

Insulation resistance: ≥1000MΩ (AC charging connector)

Mechanical behavior

Durability: more than 10000 times, (non-charged state)

Environmental performance

Ambient temperature: -65°C ~ +125°C (PE cable -40°C ~ +85°C)

Vibration: MIL-STD-202 Method204

Corrosion Resistance: MIL-STD-202 Method 101

Main technical specifications

Material:

- Shell: Thermoplastic

- Insulator: Thermoplastic

- Sealing ring: rubber material

- Insulation flame retardant grade: UL94-V0

- Contacts: Copper alloy, gold plated contacts, gold plated signal contacts

Environmental performance:

- Operating temperature: -30℃~+50℃

- Relative humidity: 98% at 40°C

- Protection class: IP54 (while charging)

Specification:

Features:

1. Comply with 62196-3 IEC 2011 SHEET 3-Im standard

2. Simple shape, support after installation

3. Contact design drainage structure to improve safety performance

4. The pin head is designed with safety insulation to prevent accidental direct contact with human hands.

5. Back protection rating IP54

6. DC maximum charging power: 127.5kW

7. AC maximum charging power: 41.5kW

Safety Protection: leakage current; under and over voltage, frequency, current; high temperature; grounding protection and lightning protection.

Connector Type:IEC 62196-2(Type 2), SAE J1772(Type 1),GB/T20234.2-2015

Charging Cable Length: 5m |Long cable length will help you to solve the charging problem of complex surroundings.

Package:

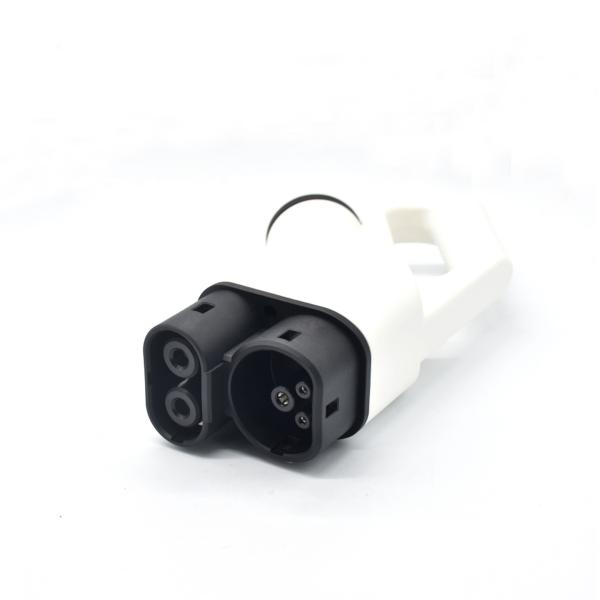

1pc (AS the picture)

WARNING:

1. Do not modify, retrofit, or change any EV Charging Cable Station's part by yourself under any circumstances

• Do not allow rain water to run along the length of charge cable, causing the electrical outlet or charging port to become wet.
• Make sure that Portable EV Charger Station all safety facilities are available at all times and test then regularly to ensure Safety
• Portable EV Charging Box's all metal parts should be insulated to prevent short circuit caused by the touch of the tool with the metal frame.
• The leakage protection would stop the charger working if it gets water into it, or even worse, cause the fire, electrical shock or serious injury.

Regularly check whether the portable EV charger has visible damage, there may be an electric shock hazard when using the damaged product Package
