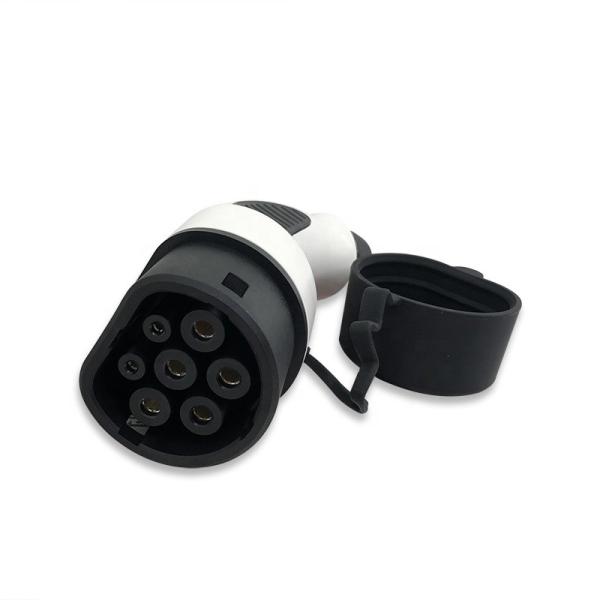

TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
Specifications
Brand Name :
Energy splendor
Model Number :
ES-Plug
Certification :
TUV CE
Place of Origin :
China
MOQ :
1
Price :
239 USD
Payment Terms :
L/C, T/T
Delivery Time :
7-14days
Packaging Details :
carton
Operating voltage :
250V AC
Insulation resisitance :
>1000MΩ(DC500V)
Withstand voltage :
2000V
Installation method :
Portable
conector :
5 pin
Color :
White
IP :
67
Pin Material :
Aluminum alloy, silver plated + top insulation
Description

Power Supply Cable Charger Gun AC/DC Household Charging Gun AC EV Charging Gun

Description

Energy splendor has established the specialized project teams, in which 63 members for R&D are dedicated to developing products that address the needs of the customers and the markets. Up to the present, 86 patents have been granted in grand total, including 15 core patents for invention. Energy splendor possesses an independent laboratory, which is recognized by the cooperative clients.
Material:
- Shell: Thermoplastic
- Insulator: Thermoplastic
- Sealing ring: rubber material
- Insulation flame retardant grade: UL94-V0
- Contacts: Copper alloy, gold plated contacts, gold plated signal contacts
Features: AC Charging Plug ,Vehicle End Plug, New Energy, European standard,AC,16A Products complies with GB/T20234-2011 standard; Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating). Humanized design with a good grasp feel, easy to use. Various accessories available, protection cap include damping cap, metal string cap,etc. The plug and socket termination type is wire crimping. Degree of protection: IP55 High Quality with 30 days 100% Money back; From the OEM Original Factory, same quality with much better price. Usage: Used for connection between the high voltage cables inside the electric vehicle. Application : For high-voltage connection of car charger, high voltage distribution box, motor controller, air conditioning, PTC, battery, etc. Can also be used for short circuit control. Techinial Datasheet: Electrical Characteristics Rating current and contact resistance Rating voltage:250/440V AC, 750V DC Insulation resistance: ≥1000MΩ( AC charging connector); Mechanical Characteristics Durability: exceed 10,000 times (Non-charged state) Main Technical Specification Material:——Shell: Thermoplastics——Insulator: Thermoplastic——Sealing ring: rubber material——Insulator flame retardant grade: UL94-V0——Contact: copper alloy, power contact with gold-plated, signal contact with gold-platedEnvironmental Performance:——Operating temperature:-30°C~+50°C——Relative humidity : 98% at40°C——Degree of protection: IP54 (during charging)
application:
High voltage connections for car chargers, high voltage distribution boxes, motor controllers, air conditioners, PTCs, batteries, etc., can also be used for short circuit control.
technical parameter:
Electrical properties
Rated current and contact resistance:
Rated Voltage: 250/440V AC, 750V DC
Insulation resistance: ≥1000MΩ (AC charging connector)
Mechanical behavior
Durability: more than 10000 times, (non-charged state)
Environmental performance
Ambient temperature: -65°C ~ +125°C (PE cable -40°C ~ +85°C)
Vibration: MIL-STD-202 Method204
Corrosion Resistance: MIL-STD-202 Method 101
Main technical specifications
Environmental performance:
- Operating temperature: -30℃~+50℃
- Relative humidity: 98% at 40°C
- Protection class: IP54 (while charging)

specifications

Pin No. Line number CHAdeMO definition function descriptor
1 1 IM Grounding wire
2 2 CP Chargr sequence signal 1
3 NC NC
4 6 CP2 Vehicle charge permission
5 Blue DC- DC output -cathode
6 Brown DC+ DC output -anode
7 7 CS Connector proximity detection
8 8 COM1 CAN-H
9 9 COM2 CAN-L
10 3 CP3 Chargr sequence signal 2
4 EL- Electromagnet&LED - cathode
5 EL+ Electromagnet&LED - anode
TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101TUV CE 250V Portable Car EV AC Charger MIL-STD-202 Method 101
