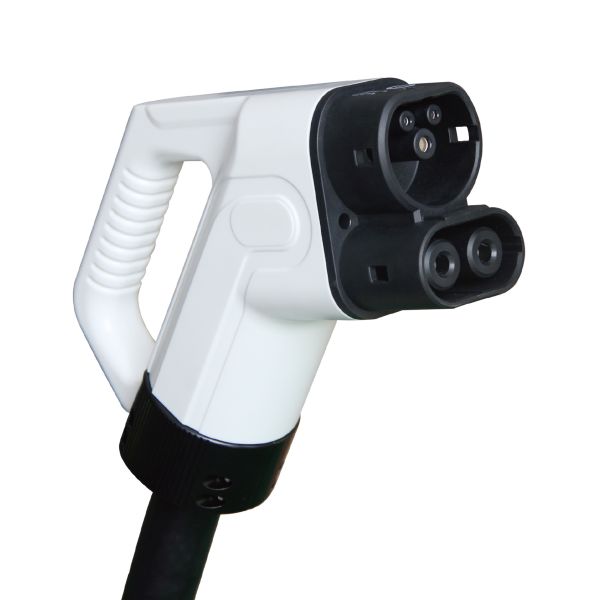

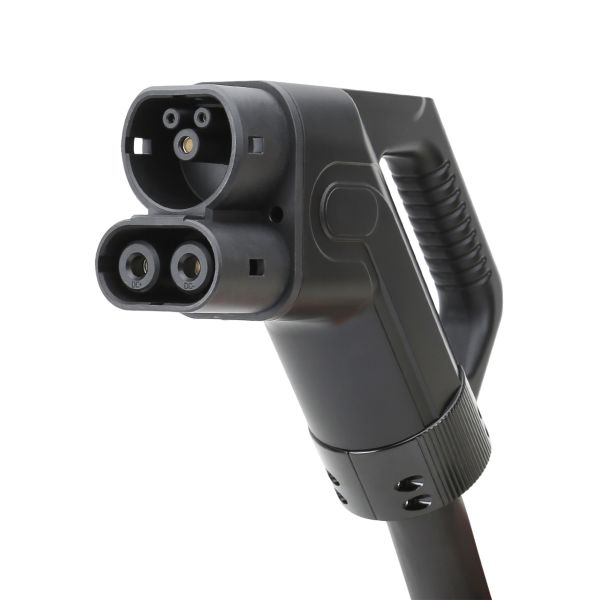

EV Charger Chademo Guns 125A 150A 200A CCS2 Combo EV Charger Gun Meet IEC62196-3

DC Rapid Charger Plug
DC Input: 125A 500V DC MAX
DC Max Charging Power: 62.5KW
Terminal Temperature Rise: <50K
Contact Resistance: 0.5m Ω Max
Withstand Voltage: 3200V

Features
1.Meet 62196-31EC 2011 SHEET 3-m standard
2.Housing massive structure promote protection performance
3LED shows working condition
4. Product entire insertion and extraction force < 100N
5.Protection classIP55
6.Max charging power:127.5kW

Mechanical properties
1. Mechanical life : no-load plug in/pull out> 10000 times
2 lmpat of external force: can afford 1m drop and 2t vehicle run over pressure

Electrical Performance
1. Rated current: 150A
2.Operation voltage: 1000V DC
3.Insulation resistance: >2000MQ(DC1000V)
4. Terminaltemperature rise: <50K
5.Withstand Voltage: 3200V
6.Contact Resistance: 0.5mQ Max

Applied Materials
Environmental performance
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Conntact bush: Copper alloy,silver plating
1.Operating temperature: -30°C~+50°C

Product Features

It complies with the relevant standards and requirements of IEC62196-3, and can normally charge new energy vehicles produced in Europe and the United States.

The third-generation design concept is adopted, and the appearance is beautiful. The handheld design conforms to ergonomic principles and feels comfortable in the hand.

The cable insulation adopts XLPO electrical aging resistance. The jacket adopts TPU jacket to improve the bending life and abrasion resistance of the cable. Currently the best material on the market, in line with EU standards.

The product protection level reaches IP55 (working state). Even in harsh environments, the product can isolate water and enhance safe use.

Reserve laser marking space for customers. Provide OEM/ODM service, which is helpful for customers to expand the market

Customer Service

1.We can provide customers with professional product advice and purchase options.

2. All emails will be responded within 24 hours during working days.

3. All customers will get one-on-one service.

Delivery Time

1.Samples or test orders can be delivered within 2-5 working days.

2.Orders in standard products above 100pcs could be delivered within 7-15 working days.

3.Orders that require customization could be produced within 20-30 working days.

Customized Service OEM&ODM

1.We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.

2.OEM includes color, length, logo, packaging, etc.

3.ODM includes product appearance design, function setting, new product development, etc.

4.MOQ is depend on different customized requests.

After Sale Service

1.The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.

2.However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory.
