Electric Car Charging Box Wall-mounted 22kW EV Charger with OCPP1.6

Wall-mounted 22kW EV Charger with OCPP1.6

Products Description:

Charging station for electric cars, 22kW, 32A, 3-phase, with Type 2 connector, wallbox, IP54 (for indoor and outdoor conditions).This type of charger can provide high speed charging, with OCPP1.6 which can match with your own platform.EV Charging Station The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode. It incorporates 4.3-inch LCD touch screen for monitoring and control. Fully programmable RGB Light Ring around charging port, to quickly determine the device state. It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.

CE CERTIFIED EV CHARGER. DEFAULT CHARGE RATE is 32A. WiFi Internet connection is required to raise or lower charge rate.

Features and Benefits:

The charging station allows charging up to 22kW.

Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).

Max. charging current: 32A (3-phase).

Max. charging power: 22kW (3-phase).

Input: 400V AC (3-phase), 32A (max.), 50 / 60Hz.

Output: IEC 62196, Type2 (European), Type 1

Charging control: Plug & Play / RFID card / app.

Screen: LED display.

Housing material: thermoplastic.

Front panel: tempered glass.

Screen color: customization.

Operating temperature: -30°C-50°C.

Operating humidity: <95% RH.

Safety class: IP54 (adapted to indoor and outdoor conditions).

Protection against: overheating, over-voltage, overload, under-voltage, short circuit,

surge, earth-leakage; ground protection.

Cooling: natural.

Dimensions: 75.5*54*22.

Weight: 16.34kg.

Specification:

CAUTION:

1. Don't submerge the ev charging box in water;

2. Don't step on, fold or knot the cable;

3. Don't drop the EV charging box or place a heavy object on it;

4. Don't place the charging cable near high temperature object when charging；

5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；

6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；

It is suggested that the power distribution is done by the professionals；

7. Don't put fingers into the charging connector when the power plug is still connecting to the

power;

8. Don't use this EV charging box when the cable is damaged;

9. The ev charging box is only for ev charging using;

10. Don't use this device with an extension cord or adaptor.

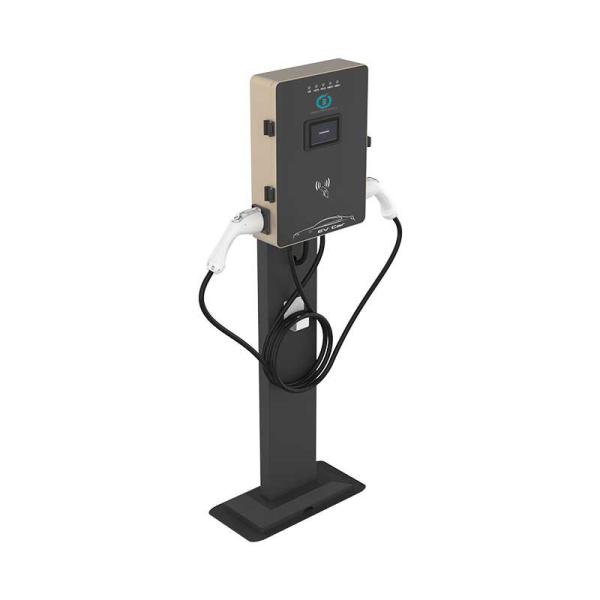

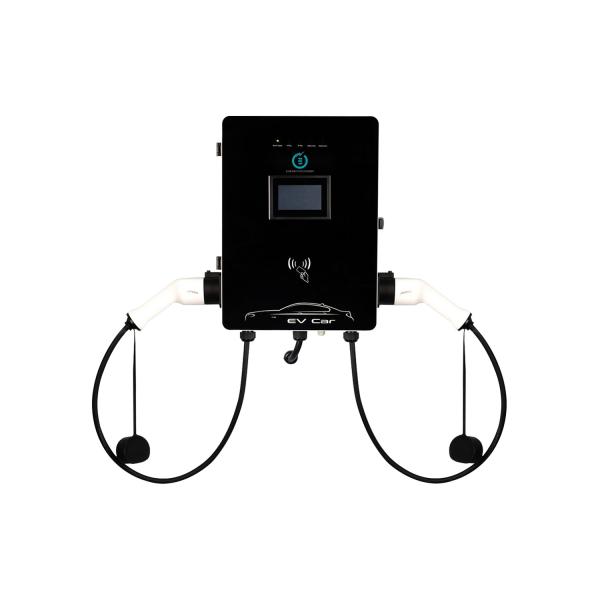

Product Display:
