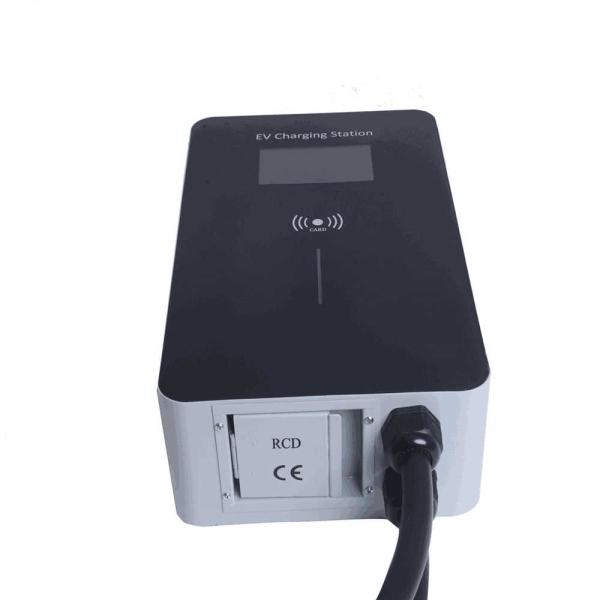

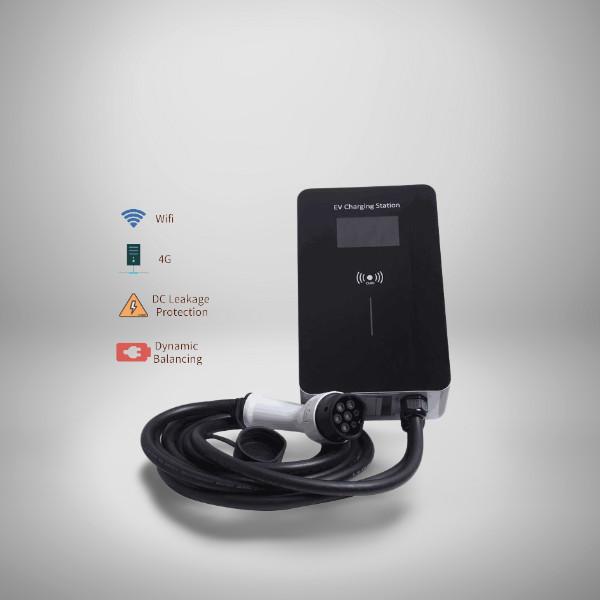

7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
Specifications
Brand Name :
Energy splendor
Model Number :
1
Certification :
CE
Place of Origin :
China
Price :
$268.00/Pieces 1-99 Pieces
Payment Terms :
T/T, L/C
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
7-14Days
Packaging Details :
carton
MOQ :
10
Product Name :
AC EV Charger
Items :
EV Accessories
Function :
For Electric Vehicle Power Supply
Feature :
Battery Protection
Color :
Black
Warranty :
2 Years
Over Voltage Protection :
Yes
ODM/OEM :
Welcome
Port :
Shanghai
Cable :
5 Meters
Description
7kw Home Easy Use Commercial EV Charging Station AC Single-Phase Wallbox EV Charger Black Ev Electric Vehicle Charger
Description
The Home Easy Use Commercial EV Charging Station is the single-phase 7kW AC charger with a maximum 32A output current, specially designed for private use. It saves space and is easy to operate, which is an ideal solution for your home or company.
The charger is equipped with RFID card function for ID authentication to prevent theft of electricity. Only the user with RFID card has access to the charging.
A 7kW charger adds up to 25-miles of range per hour, taking around 7 hours to top up a battery by 50kWh.
Charging is all about convenience, and the best way for it to be convenient is for it to be fast.
If you live in a house with a single-phase power supply, the fastest EV charger you can get is 7.4kW, which adds up to 30-miles of range per hour.
The fastest single-phase home chargers are 7kW, 7.2kW and 7.4kW. A higher number means faster charge speeds if your electric car supports the max rate.
How long does it take to charge an electric car?
It takes five to eight hours to top up most electric car batteries from 10-80% at 7kW. You shouldn’t go over 80% SoC to preserve the battery.
The last 20% in a battery generates the most heat and also adds 2-3 hours onto the charge time at 7kW.
Calculating total charge time (cheat calculation)
As a general rule of thumb, for every two decimal point increases (e.g., 7kw to 7.2kw), charge times are slashed 2%. So, a 7.4kW charger is 4% faster than a 7kW charger.
How to get faster home charge speeds
Sometimes, your car might charge slowly. Try pre-heating the battery before charging and see if this helps. Your charger might also be balancing the power demand.
If you want even faster home charge speeds than 7kW, you need to upgrade from a single-phase to a 3-phase power supply, which will unlock the world of 11kW home chargers which are 57% faster than 7KW chargers.

Feature
Features
1. Emergency protection and alarming function, including over-voltage, under-voltage, over-current, over-temperature, phase missing, output short-circuit, leakage protection, and so on.
2. Charging protection function, the charging process will suspend immediately when BMS communication faults, disconnection, over-temperature, and over-voltage occur.
3. Emergency stop function, the charging process can be suspended immediately by the emergency stop switch.
4. Has multiple communication interfaces such as CAN, RS485/ RS232, Ethernet, and 3G wireless networks, which can achieve communication among AC input unit, charging module, and DC charging terminal interface, obtain electric vehicle battery system parameters and battery operation parameters during the charging process.
5. Has insulation monitoring function, automatically turns off the output to ensure safe charging when insulation level is low.
6. High efficiency, high reliability, ultralow radiation, fast maintenance, flexible capacity expansion, energy efficiency, and environmental protection
7. High adaptability of temperature range, has isolated heat dissipation air ducts. Power heat dispassion is separated from the control circuit to ensure a dust-free of control circuit.
8. Metal closed shell, to prevent fire.
9. Have a display interface that can be customized
specification
Rated Current 32A
Voltage 380V
Connetor Type 2
Charging way Plug and in
Output Power 7KW
Waterproof IP54
Operating Temperature -30~+50 C
Cable Length 0.7m
Weight 4.03kg
Packing way Carton
Charging standard EN IEC 62196 ,61851
Certificate CE TUV
Key Words 62196 EV Charger
Warranty 2 Year
Installation method Wallbox
OEM accept
capacity 5000pcs/mont
7KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 621967KW Commercial Smart Wallbox EV Charger Single Phase EN IEC 62196
