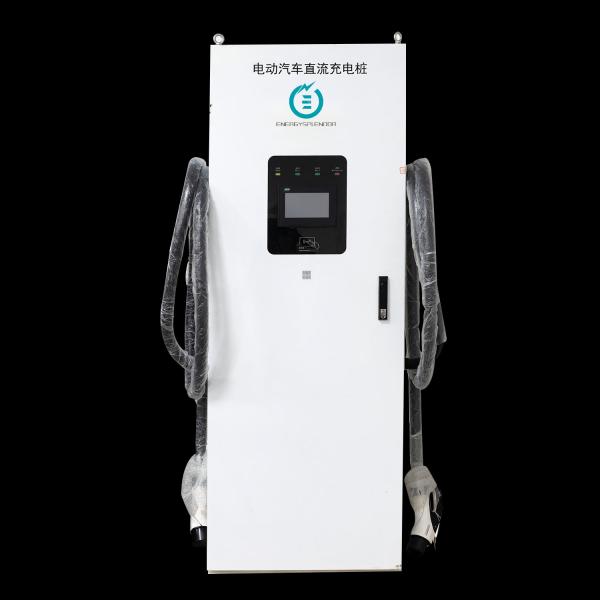

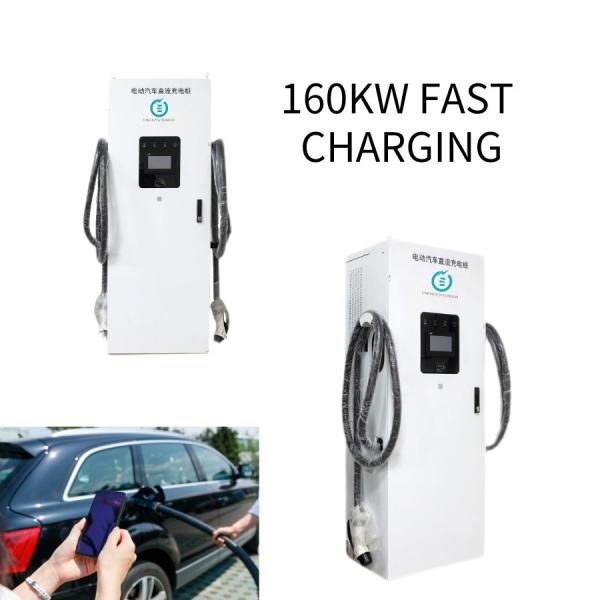

160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
160kW 180kW Universal Car DC Fast Charging Stations IEC 62196-2
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-DC-160kW/180kW
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
18000-20100USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
7-14Days
Packaging Details :
box
Type :
180kW
Dimensions :
720*557*1700（mm）
HMI(Human Machine Interface) :
7 inch touch screen
AC Power :
380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE
Rating Current :
250-280A
Output Power :
160KW/180kW
Work Condition :
Elevation: ≤2000m; Temperature: -20°C~+50°C;
Charging Mode :
Swipe card, scan code
Protection Function :
under voltage
Connector Type :
IEC 62196-2(Type 2)
Description

High Voltage Products Communication Connection Customization Service 180kW DC EV Charger High Voltage Electric Vehicle

Customization Service 160kW DC EV Charger High Voltage

Products Description:

EnergySplendor-fast charging station for the public sector

To meet the changing market demands, the chargers have a scalable power up to 160 kW and can be expanded with additional external dispensers for up to two additional charging cables. All are cloud-connected devices which allows operators to monitor and manage the chargers remotely.

High charging speed, highly efficient charging for two vehicles simultaneously. Over 96% efficiency, reducing overall operating costs: save > 3000CHF per year per station.

Scalable solution. From 80kW to 160kW. On-site upgrade from 80kW to 160kW in increments of 20kW at any time.

Unique all-in-one design. Everything is included in one single compact unit. No external cabinet for a DC converter needed.

Can be controlled remotely with a mobile application

Drivers are able to manage and track their charging with an iOS or Android application, accessing a range of features such as remotely starting or stopping charging, accessing charging statuses in real time or recharging users’ accounts at any time.

Specification:

Product Integrated DC Charging Station
Type DC-160KW DC-180KW
Dimensions 720*557*1700(mm)
HMI(Human Machine Interface) 7 inch touch screen
AC Power 380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE
Rating Current 250-280A
Output Power 160KW 180KW
Work Condition Elevation: ≤2000m; Temperature: -20°C~+50°C;
Charging Mode Swipe card, scan code
Networking Mode Ethernet, 4G, wifi,mini program
Operating Pattern noncharge offline,charge offline, charge online
Protection Function Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.
Connector Type SAE J1772(Type 1)/IEC 62196-2(Type 2)
Charging Cable Length 5m (customizable)
Protection Grade Ip54

Standard Features

– CCS1 / CCS2 / CHADEMO Support

– Internet with Wifi/3G/4G/Ethernet; OCPP 1.6 compliant

– Ready to use software embedded

– IP65 design for harsh environment

– Easily configure the output power form 60KW to 120KW

– TUV CE certificated

– Customized Brand Painting support

Widely application for business center, highways, public charging palce, gas stations etc...

After-sale Service:

1. Two years warranty for all parts. If any parts break during the period, we will provide free replacement.

Non-quality factor damage is not included.

2. One to one technical engineer support for installation&operation and communication connection assistance

between your app and our OCPP platform.

Additional Accessories for Options

1. Pestle.

2. Wifi connection to Internet.

3. 3g/4g/GPRS connection to Internet.

4. Customized cable length.

5. Customized Box color and customized logo
