Ethernet 4G EV Supercharger DC Fast Charging Stations 120kW 180kW
Ethernet 4G EV Supercharger DC Fast Charging Stations 120kW 180kW
Ethernet 4G EV Supercharger DC Fast Charging Stations 120kW 180kW
Ethernet 4G EV Supercharger DC Fast Charging Stations 120kW 180kW
Ethernet 4G EV Supercharger DC Fast Charging Stations 120kW 180kW
Ethernet 4G EV Supercharger DC Fast Charging Stations 120kW 180kW
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-DC120kW
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
10000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
7-14Days
Packaging Details :
box
Type :
DC EV Charger
Color :
Customizable
Warranty :
2 years
Cable Length :
Customizable
Charging Mode :
Swipe card, scan code
Rating Current :
250A-280A
HMI :
7'' touch screen
Dimentions :
720*557*1700*(mm)
Output Power :
120kW
Networking :
Ethernet, 4G, wifi,mini program
Protection Function :
under voltage
Charging Cable Length :
5m
Description

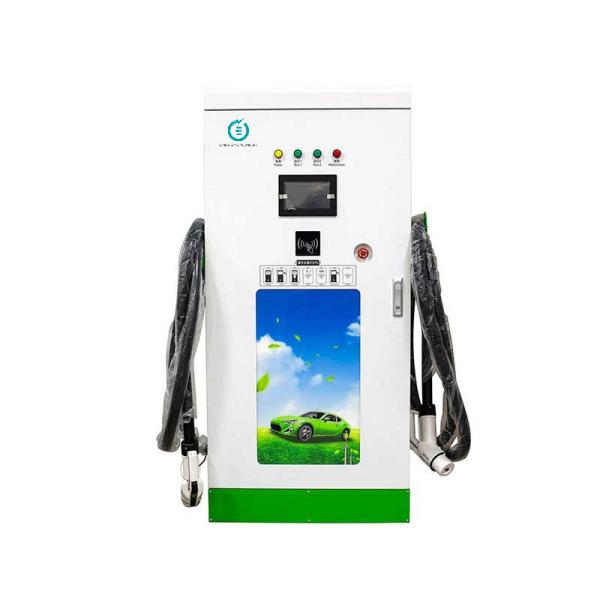

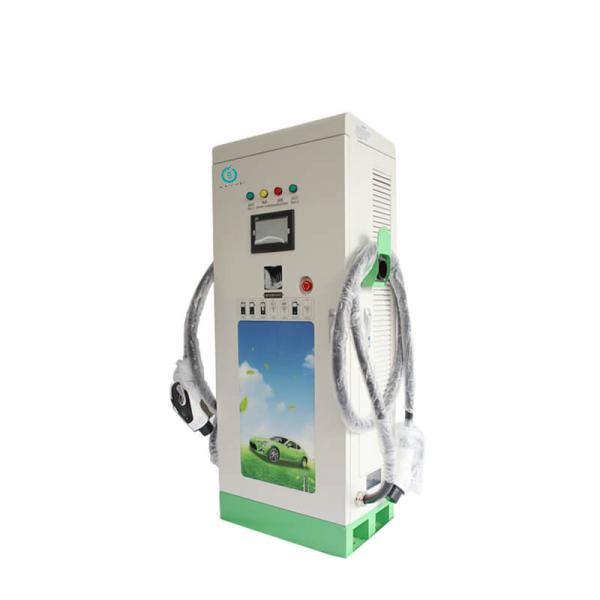

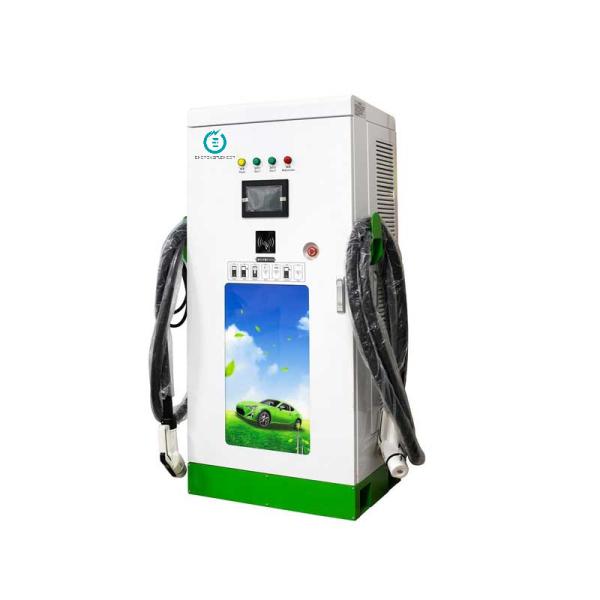

Supercharger Electric Cars 120kW 180kW EV Charging Station Fast Charger

120kW CCS2 EV DC Charging Outdoor

Products Description:

  • High compatibility: our DC EV charger is compatible with most electric vehicles with CCS1, CCS2, CHAdeMo and GB/T standard.
  • Application scenes: suitable for all kinds of electric vehicles on the market, including electric car, electric van, electric bus, electric truck, electric yacht, electric forklift, etc.
  • Environmental adaptability: the housing is air isolated from the charging module to prevent heat conduction. Two layer structure and maintenance-free centrifugal fan for heat dissipation are more environmentally adaptable.
  • LCD screen: the screen can show you the real-time charging data including the charging power, current, voltage, time and approximate rest charging time of the ev dc charger.
  • RFID control: the users can start or stop charging with the RFID cards.
  • CMS: our EV chargers support OCPP, which can connect to CMS via 4G or LAN or WIFI. This platform can provide operators with real-time information on charging stations and vehicles.

Feature:
1.Speed charging with up to 300 Km/h!
2.The CHR-50S quick-charging station was developed for electric vehicles with CHAdeMO or CCS Combo DC charging sockets and is
designed for commercial use.
3.It is compatible with all popular industrial sockets and can be used with CEE125 plug sockets.
4.This charger is internet connected via OCPP client and server.
5.RFID card,Paypal,credit card payment systems supported (need Wi-fi or 4G).
6.With 7 inch touching display screen panel.

Specification:

Product Integrated DC Chariging Station
Type DC-120KW
Dimensions 720*557*1700(mm)
HMI(Human Machine Interface) 7 inch touch screen
AC Power 380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE
Output Voltage 150-1000VDC
Output Current CCS: 0 – 200A, CHAdeMO: 0 – 125A,3-phase 32A max
Rating Current 250-280A
Output Power 120KW
Efficiency ≥ 94%
Power factor ≥ 0.99
Work Condition Elevation: ≤2000m; Temperature: -20°C~+50°C;
Working humidity 5% ~ 95% without condensation
Charging Mode Swipe card, scan code
Networking Mode Ethernet, 4G, wifi,mini program
Operating Pattern noncharge offline,charge offline, charge online
Protection Function Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.
Charging standards CCS-1/2, CHAdeMO
Charging Cable Length 5m (customizable)
Protection Grade Ip54


Security Function:
Charge gun temperature detection,
overvoltage protection,
undervoltage protection,
overload protection,
short circuit protection,
grounding protection,
over temperature protection,
low temperature protection,
insulation monitoring protection,
polarity reverse connection protection,
lightning protection,
emergency stop protection,
leakage protection
