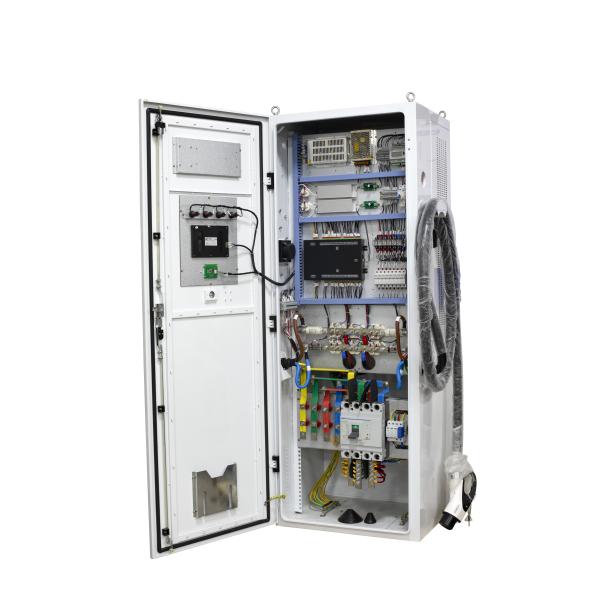

Fast Charging Stations HMI 7 Inch Touch Screen 160kW Fast DC EV Car Charger OCPP 1.6 Scan Code

160kW Fast DC EV Car Charger OCPP 1.6

Products Description:

ES-DC-160kW series outdoor DC integrated charger adopts a new generation of intelligent charging module single and double output can be selected according to customer requirements.The dual-gun type can be distributed according to the actual charging demand to meet the charging needs of small and medium-sized passenger cars and logistics vehicles. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports 2G/4G/WiFi/Ethernet/Mini-program communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.

Main features:

Modular design

Parallel modular layout, support hot swap of module components, flexible power combination and convenient maintenance

Extreme heat dissipation

Application of isolation air duct technology to improve the internal heat dissipation efficiency and ensure the stability of operation

Security

With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormality detection, leakage, lightning protection and other active protection functions

Output current: 0-160A

Output voltage: 200-1000V DC

Rated Output Power: 160KW

IP protection class: IP 54 ( working condition)

Security Function:Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection

Operation

1 Operator Instruction

A: Integrate the VPOS to the CSMS (Charging Station Management System) Server

B: Integrate the parking barrier to the EV Charger or OCPP Gateway

C: Configure the VPOS payment option from CSMS

2 User Instruction

A: Start the charging session with credit card via VPOS

B: Move the car to the parking area when the barrier is released

C: Stop the charging session when charging complete

D: Parking barrier will be activated when users drive away

Or

A: Start the charging session via mobile App

B: Move the car to the parking area when the barrier is released

C: Stop the charging session when charging complete

D: Parking barrier will be activated when users drive away

The load balancing management ensures that your power grid is not overloaded or that appliances in the house fail. Thanks to the load balancing management, the devices in the house are always running and the charging solution only uses the available power.

Specification:
