71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System
71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System
71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System
71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System
71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System
71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System
Specifications
Net Weight(kg) :
≈870
Place of Origin :
China
Battery Type :
LiFePO4
Cycle Life :
≥8000 Cycles (25℃±2℃,0.5C,80%DOD@65%EOL)
Waterproof Rating :
IP55
System Cooling Method :
Air Cooling
Price :
Negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transportation
System Rated Voltage (V) :
716.8
Brand Name :
EUE Power
Payment Terms :
L/C, T/T, DDP, DDU
System Nominal Energy(kWh) :
71.68
MOQ :
10 pcs
Model :
G-CUBE 71kWh
Description

G-CUBE 71kWh Energy Storage System

The system features a plug-and-play design for convenient installation, high energy density to save space and reduce costs, and an intelligent BMS for accurate cell balancing and long service life. It includes an integrated safety system with air conditioning and fire protection, and supports flexible parallel operation for both grid-tied and off-grid scenarios.

  • ✅ Plug-and-Play Design: Fast and convenient installation.
  • ✅ High Energy Density: Optimized space usage and cost efficiency.
  • ✅ Intelligent BMS: Precision cell balancing for extended service life.
  • ✅ Integrated Safety: Built-in air conditioning and fire protection.
  • ✅ Flexible Operation: Supports parallel connection for grid-tied and off-grid use.

Product Advantages

  • Smart BMS

    Intelligently identify the master-slave batteries auto DIP address

  • Easy maintenance

    Compact and lightweight for easy installation

  • Deep Cycle

    ≥8000 Cycles (25℃±2℃, 0.5C, 80% DOD @65% EOL)

  • Warranty

    Up to 5 years

Product Features

Plug and play

The system adopts a plug-and-play design, making installation and commissioning faster and more convenient.

High energy density

With high energy density, the system helps reduce transportation costs and save installation space.

Safer installation

The design reduces installation risks for operators and improves overall product stability.

Intelligent BMS management

The intelligent BMS provides continuous cell balancing, keeping SOC more accurate, improving cell consistency and ensuring a system service life of more than 10 years.

Integrated safety system

The system integrates air conditioning and fire protection systems to improve stability and operational safety.

Flexible parallel operation

The system supports multi-unit parallel operation with AC coupling. When connected to the grid, the number of parallel units is not limited. For off-grid parallel operation, fewer than 4 units are supported, depending on the customer’s off-grid load type and load power.

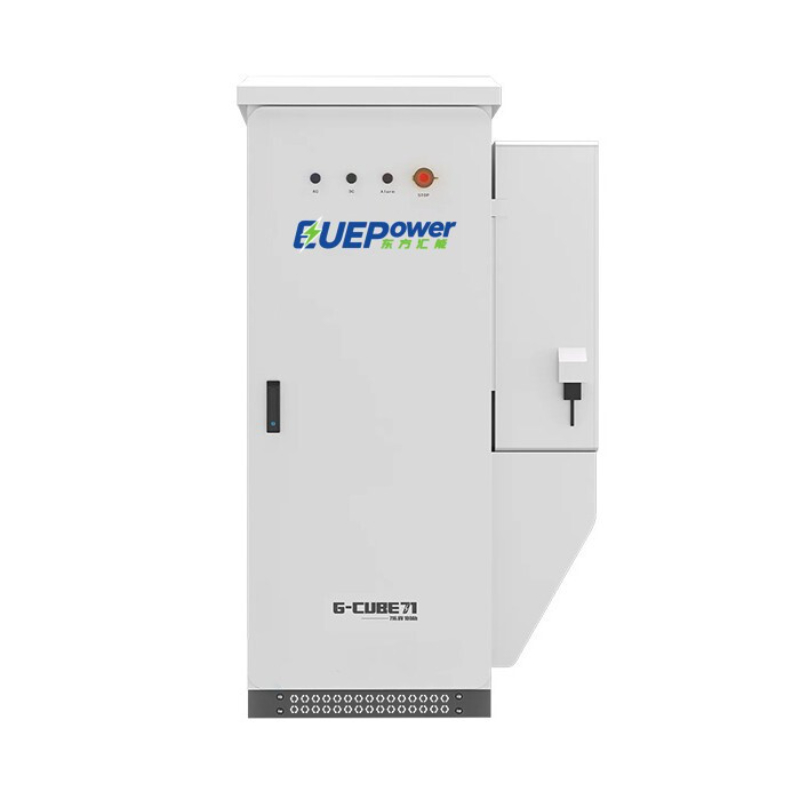

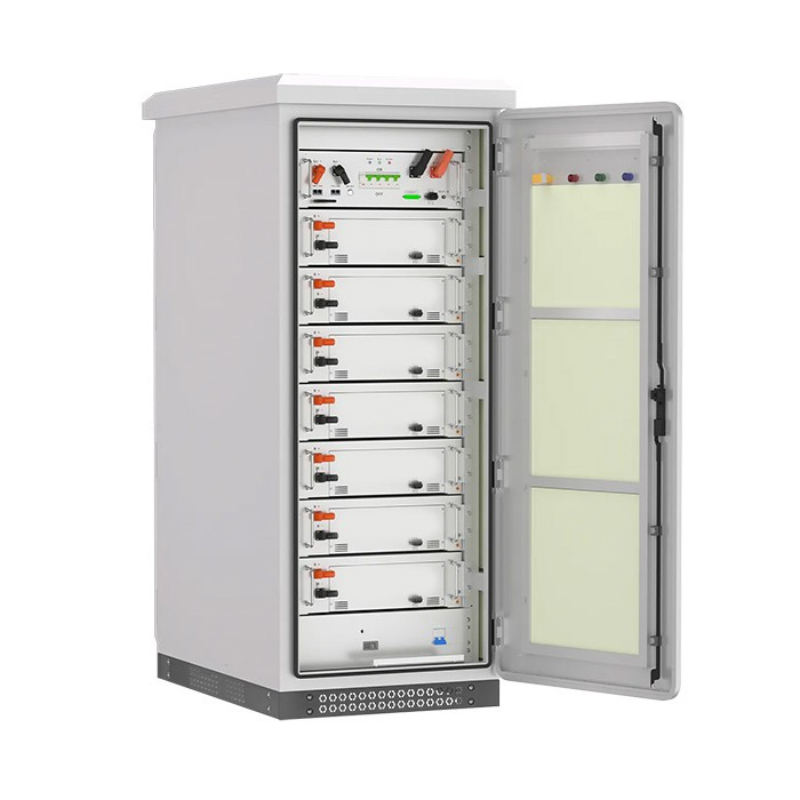

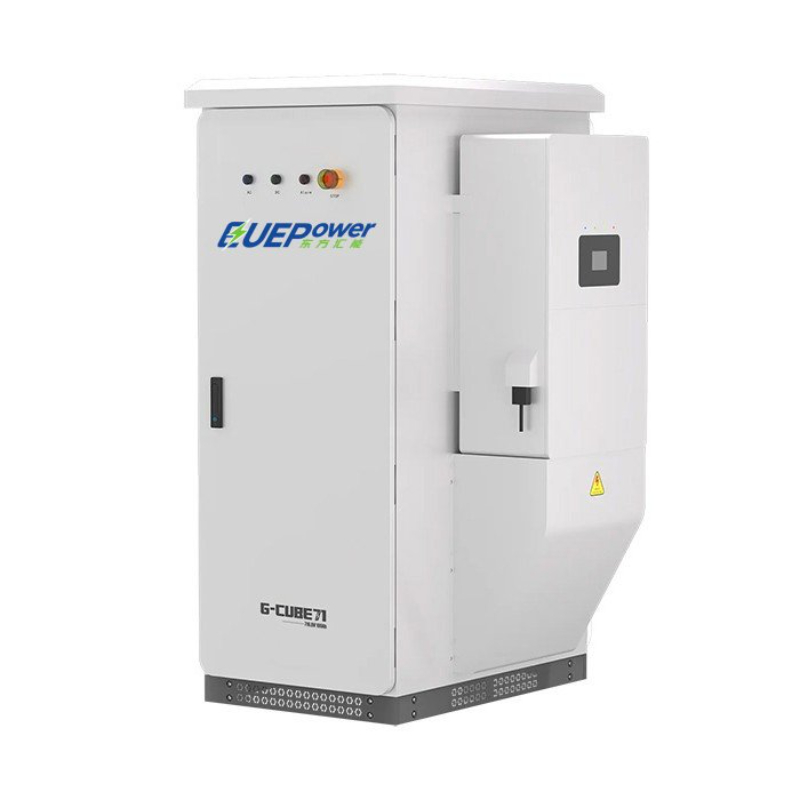

Product Photos

71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System71kWh BESS High Voltage LiFePO4 Battery Outdoor Energy Storage System

Technical Parameters

Model G-CUBE 61kWh G-CUBE 71kWh
Main Parameters
Battery Type LiFePO4
Rated Capacity(Ah) 100
No. of System Module Series Connections(Optional) 6 7
System Rated Voltage (V) 614.4 716.8
System Operating Voltage(V) 537.6-691.2 627.2-806.4
System Nominal Energy(kWh) 61.44 71.68
Charge/Discharge current(A) Rated Current 50
Max. Current 100
Overload Current 115(10sec,25℃)
Output Terminal Voltage (AC side) 400V@AC
PCS Matching Power (kW) 50
Status indicator Light Blue: energy storage system start status, green: energy storage system operation status, red: energy system fault st
Communication Protocol CAN2.0
Operating Temperature Range(C) -10-50
Operating Humidity Range ≤95%(No Condensation)
Operating Altitude ≤2000m
System Cooling Method Air Cooling
Waterproof Rating IP55
Fire Fighting System Aerosol
Net Weight(kg) ≈780 ≈870
Maximum Size(mm) 1020*1080*1786
Storage Temperature(C) 0-35
Recommended Depth of Discharge(DOD) 90%
Cycle Life ≥8000 Cycles (25℃±2℃,0.5C,80%DOD@65%EOL)
System Composition BMS management system, fire protection system, air-cooled unit, cabinet, PCS system
Certification Cell: UL1973/IEC62619/CE/ROHS/MSDS/UN38.3
Warranty 5 Years(Under Warranty Terms)
Energy Throughput ** 134MWh 156MWh
