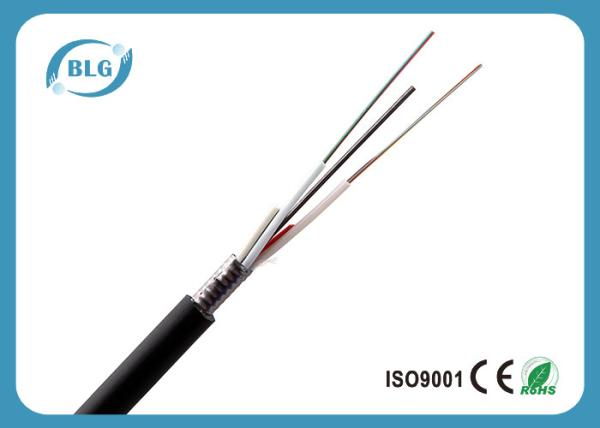

Exterior 8 Cores GYFTA53 Bulk Fiber Optic Cable With Aluminium Tape Armored
Exterior 8 Cores GYFTA53 Bulk Fiber Optic Cable With Aluminium Tape Armored
Exterior 8 Cores GYFTA53 Bulk Fiber Optic Cable With Aluminium Tape Armored
Exterior 8 Cores GYFTA53 Bulk Fiber Optic Cable With Aluminium Tape Armored
Specifications
Brand Name :
BLG/ OEM
Model Number :
Optical Fiber Cable
Certification :
CE/ROHS/ ISO
Place of Origin :
China
MOQ :
5000meters
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2 container per week
Delivery Time :
7~10days
Packaging Details :
wood drum or as customized.(standard:2KM~4KM/drum)
Cable type :
Outdoor cable
Fiber Mode :
SM/MM
Fiber cores :
8
Outer sheath :
PE/LSZH
Armored or not :
Aluminum tape armored
Application :
Telecom/network
Description

Outdoor Cable 8 Cores GYFTA53 Optical Fiber Cable

Aluminium Tape Armored Outdoor Cable

GYFTA53 is the steel tape armored outdoor fiber optic cable used for direct buried. We supply

single mode GYFTA53 fiber optic cable and multimode GYFTA53 fiber optic cables; fiber

counts from 2 to 288.

1. Applications:


These corrugated steel tape and aluminum tape armored and double sheath cables are

suitable for installation in harsh environments where mechanical impact on the cable is to be

expected.e.g. in direct buried application. They are also suitable for installation in ducts where

the rodent resistance is to be expected or the moisture resistance is expected.

2. Features:

Up to 288 fiber core.

The loose tube stranding technology make the fibers have good secondary excess length and

allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is

subjected to longitudinal stress.

Corrugated steel tape armored and double PE sheath providing excellent crush resistance and

rodent resistance.

Metal strength member provides excellent strain performance.

3. Specifications:

Item

Contents

 Value

Fiber Count

 4~12 24 48 72 96
Loose Tube

No.of tubes*fibers per tube

 1 2*12 4*12 6*12 8*12

Outer Diameter(mm)

 1.9 2
Central Strength Member

Material

 Steel wire

Diameter(mm)

 0.8~1.2
Water blocking material Material Cable filling compound
Moisture-proof

Material

 Laminated aluminum tape
Inner sheath

Thickness(mm)

 Nominal:1.0
Armor

Material

 Corrugated steel tape
Outer sheath

Thickness(mm)

 Nominal:2.0

Cable Diameter(mm)Approx

 13.5~18

Cable Weight(KG/KM)Approx

 210~280

Operating Temperature Range(℃)

 —40~+70

Tensile Strength Short/Long Term(N)

 2700/900

Crush Resistance Short/Long Term(N/100mm)

 3000/1000

*The color arrangement of fiber is specified in the color identification table

*Other structure and fiber count are also available according to customer requirements
