Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
FIBER OPTIC CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Kilometers per Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
2000M / Wooden Reel
Item :
Tight - Buffered Distribution Cable
Fiber Cores :
4 ~ 24 Fibers
Fiber Type :
Singlemode G.652D ( Yellow )
Application :
Cable Distribution
Description

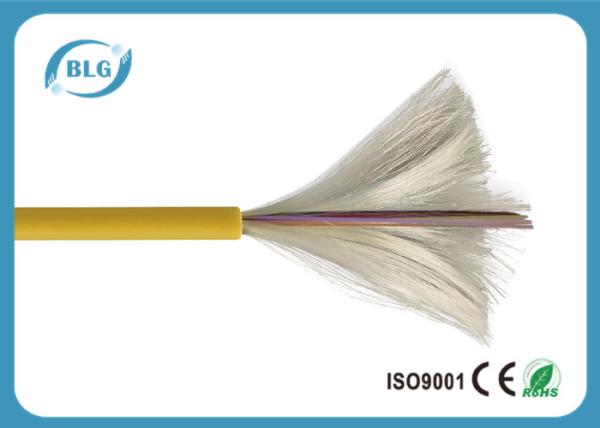

24 Fibers Bulk Fiber Optic Cable SM 9 / 125 OS2 Tight - Buffered Distribution Indoor Cable

GJFJV

Tight-Buffered Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, softness and easy to peel. It is widely used as pigtails and jumpers for communication equipments.

Applications:

  • Light weight and compact
  • 900μm tight-buffered fibers can be directly terminated
  • Flexible, flame-retardant & color coded outer jacket
  • Non-unitized designs provide space savings and cost advantages
  • For premises wiring
  • Work as pigtails and patch cords
  • Optical communication cables for inside plant installations
  • Suitable for indoor use, communication equipment

Possible options:

  • Single mode OS1 / OS2 ( 9 / 125 )
  • Multi mode OM1 ( 62,5 / 125 )
  • Multi mode OM2 ( 50 / 125 )
  • Multi mode OM3 ( 50 / 125 )
  • Multi mode OM4 ( 50 / 125 )

Construction:

Item

62.5µm ( OM1 )

850nm / 1300nm

50µm ( OM2 )

850nm / 1300nm

50µm ( OM3 )

850nm / 1300nm

SM

1310nm / 1550nm
Attenuation of max value ( dB / km ) 3.5 / 1.5 3.5 / 1.5 3.5 / 1.5 0.4 / 0.3
Attenuation of typical value ( dB / km ) 3.5 / 1.5 3.0 / 1.0 3.0 / 1.0 0.38 / 0.25

Standards:
ISO 11801 2nd edition, EN 50173 - 1:2002, IEC 50290 - 2 - 27, IEC 60794 - 1, IEC 60332 - 1 - 2 , IEC 60754 - 1, IEC 60754 - 2, IEC 61034 - 2.

Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2Tight - Buffered 24 Bulk Fiber Optic Cable For Premises Wiring SM 9 / 125 OS2
