SM Multimode Duplex 2 Fiber Optic Cable 1000 Feet , Yellow Fiber Optic Audio Cable
SM Multimode Duplex 2 Fiber Optic Cable 1000 Feet , Yellow Fiber Optic Audio Cable
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
FIBER OPTICAL CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Kilometers per Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
2000M / Wooden Reel
Item :
Fiber Optical Cable
Fiber Type :
9 / 125, 50 / 125, 62.5 / 125
Fiber Core :
2 Fiber
Strength Member Material :
Aramid Yarn
Sheath :
PVC
Package :
2000M / Wooden Drum or As Requested
Description

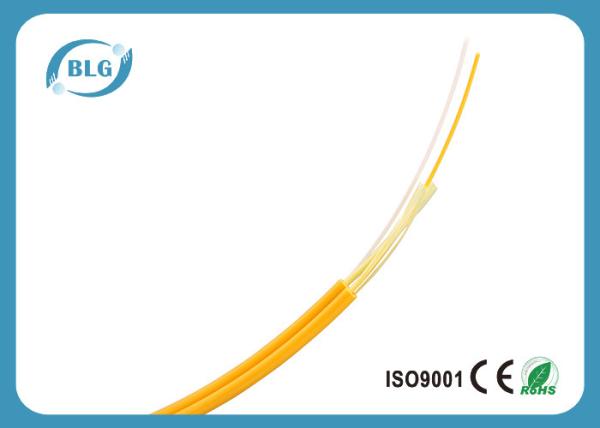

SM Duplex Bulk Fiber Optical Cable Aramid Yarn Zipcord Interconnect Cable

  • Description

2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.

  • Standards

· Comply with Standard YD / T 1258.3 - 2003, ICEA - 596, GR - 409, IEC794, etc;

  • Geometical Characteristics
Duplex Cable Type Φ3.0 Φ2.0 Φ1.8 Φ1.6
Duplex Cable Diameter ( mm ) 2.85 / 5.80 1.95 / 4.00 1.80 / 3.70 1.60 / 3.30
Duplex Cable Weight ( kg / km ) 14 8 7 6
TBF Diameter ( um ) 900 ± 50 600 ± 50

  • Mechanical Characteristics
Tensile Strength Long term 100N 100N
Short term 200N 200N
Crush Resistance Long term 200N / 100mm 100N / 100mm
Short term 1000N / 100mm 500N / 100mm
Bending Radius Dynamic 20 × H ( Cable Axis )
Static 10 × H ( Cable Axis )

  • Optical Characteristics
50 / 125μm 62.5 / 125μm G.652 G.655
Attenuation ( + 20 °C ) @ 850nm ≤ 3.5dB / km ≤ 3.5dB / km
@ 1300nm ≤ 1.5dB / km ≤ 1.5dB / km
@ 1310nm ≤ 0.45dB / km ≤ 0.50dB / km
@ 1550nm ≤ 0.30dB / km ≤ 0.50dB / km
Bandwidth (Class A) @ 850nm ≥ 500MHz · km ≥ 200MHz · km
@ 1300nm ≥ 1000MHz · km ≥ 600MHz · km
Numerical Aperture 0.200 ± 0.015NA 0.275 ± 0.015NA
Cable Cut-off Wavelength λcc ≤ 1260nm ≤ 1480nm
Attenuation at temperature cycling Δα ( - 20 °C ~ + 85 °C ) @ 1300nm ≤ 0.25dB / km ≤ 0.25dB / km
@ 1550nm ≤ 0.10dB / km ≤ 0.15dB / km

  • Environmental Characteristics
Transport Temperature - 20 °C ~ + 60 °C
Storage Temperature - 20 °C ~ + 60 °C
Installation Temperature - 5 °C ~ + 50 °C
Operating Temperature - 20 °C ~ + 60 °C
