LC SM MM Connector Fiber Optic Accessories For Active Device Termination
LC SM MM Connector Fiber Optic Accessories For Active Device Termination
LC SM MM Connector Fiber Optic Accessories For Active Device Termination
LC SM MM Connector Fiber Optic Accessories For Active Device Termination
Specifications
Brand Name :
OEM/ BLG
Model Number :
LC Connector
Certification :
CE/ ROHS/ ISO
Place of Origin :
China
MOQ :
1000pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 pcs per week
Delivery Time :
3~7days
Packaging Details :
Blister with carton box
connector type :
fiber optic connector
Core :
Simplex or Duplex
Nominal Outer Diameter :
0.9mm/2.0mm/3.0mm
Tight buffer diameter :
250μm
Mode :
Single mode or Multi mode
Application :
FTTH FTTB FTTX Network
Description

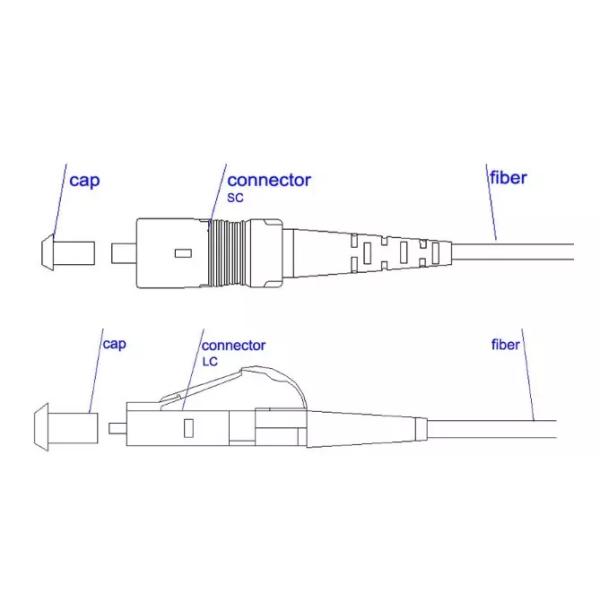

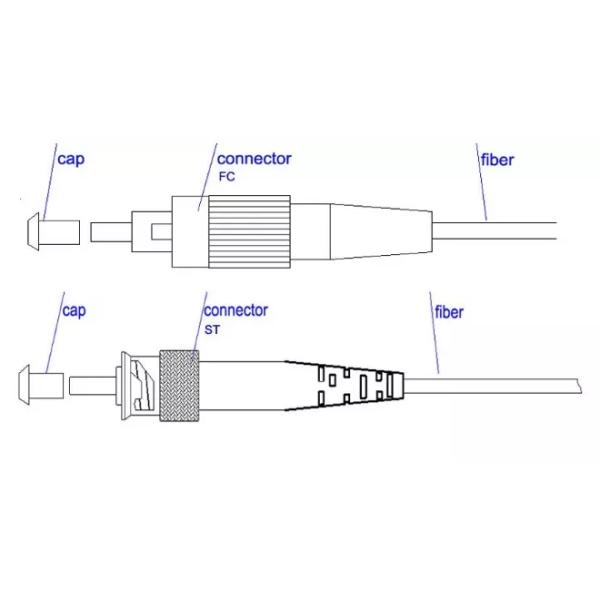

Provide ST LC SC FC Fiber Optic Connector Assemblies

LC SM MM Connector

1. Applications:

  • Gigabit Ethernet;
  • Active device termination;
  • Telecommunication networks;
  • Video;
  • Multimedia;
  • Industrial;
  • Military;
  • Premise installations
  • Metro.

2. Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---High precision alignment
---ROHS compliant
---Nickel plated brass body
---Free-floating ceramic ferrule
---Bayonet style housing for easy termination

3. Specification:
Single mode Multimode
Insertion Loss <0.20dB <0.2dB
Return Loss ≥55dB(PC) ≥65dB(APC)
Durability <0.25dB typical change,
500 matings
Operating Temperature -40 to +75 -40 to +75
Ferrule Hole Sizes 125.0+1/-0um,
Conentricity:≤1um		 125um,Conectricity:≤3um
125.3+1/-0um,
Conentricity:≤1um		 127um,Conectricity:≤3um
125.5+1/-0um,
Conentricity:≤1um		 128um,Conectricity:≤3um
126.0+1/-0um,
Conentricity:≤1um

4. Ordering Choice:

  1. LC/PC SM one-piece, multi-piece, 3mm , 2mm or 900um boot
  2. LC/PC SM duplex with clip
  3. LC/APC SM one-piece, multi-piece, 3mm or 2mm boot
  4. LC/APC SM duplex with clip
  5. LC/PC MM one-piece, multipiece, 3mm , 2mm or 900um boot
  6. LC/PC MM duplex with clip

5. Pictures:

LC SM MM Connector Fiber Optic Accessories For Active Device Termination

LC SM MM Connector Fiber Optic Accessories For Active Device Termination

LC SM MM Connector Fiber Optic Accessories For Active Device Termination

LC SM MM Connector Fiber Optic Accessories For Active Device TerminationLC SM MM Connector Fiber Optic Accessories For Active Device Termination
