ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
Specifications
Model Number :
HZ-30617
Brand Name :
Herzesd
Place of Origin :
China
MOQ :
1
Price :
$49-65
Thickness :
2mm/3mm
Material :
Nitrile Rubber

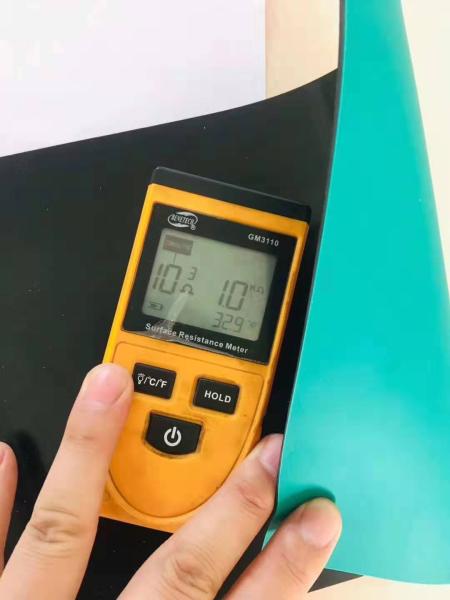

Surface resistance :
10e6-10e9 ohm
Under Layer resistance :
10e3-10e6 ohm
Size :
1*10M
Volume Resistance :
10e7-10e10 ohm*cm
Surface layer thickness :
0.5mm
Bottom layer thickness :
1.5mm
Heat resistance :
300℃
Surface type :
Matt/Glossy
Color options :
Green, Grey, Blue
Structure type :
Double-layer composite
Abrasion resistance :
Superior
Chemical resistance :
Superior
Humidity resistance :
Unaffected
Description
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
Thickness
1.8mm, 2mm, 3mm
Normal Size
1m*10m; 1.2m*10m
Color
Green/Grey/ Blue
Surface
Matt/Glossy
Surface resistance
≤10e6ohm
Volume Resistance
10e7-10e10 ohm·cm
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet

Options:

▶ Regular Premium Rubber Mat
▶ Heat Resistant 300℃ Rubber Mat
▶ Rohs 2.0 Original Rubber Mat
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet




ESD Rubber Mat

HerzESD has a wide range of ESD table mats available in flexible rubber and vinyl materials, as well as rigid ESD table mats are
ESD products and static control equipment serving the high-tech industry.
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet

Basic Features of ESD Table Mat

It is mainly made of anti-static (conductive) materials and static-dissipative materials such as synthetic rubber.
The surface layer is a static dissipative layer about 0.5 mm thick, and the bottom layer is a conductive layer about 1.5 mm thick.
Commonly used as 2mm double-layer composite structure, available colors are green, gray, blue, black, white and so on.
According to the structure, there are two types: whole body and compound; according to the surface brightness, there are two types: bright type and matte type.
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet

Advantages of Herzesd Rubber Mat


Anti-static table mat is mainly made of anti-static material and synthetic rubber. The surface layer is a 0.5mm thick
static-disspative layer. The bottom layer is a 1.5mm black conductive layer. Generally, 2mm thick double-layer structure is used.
The available colors include green, gray, blue, black and etc.Anti-static mat is designed to harmlessly drain charges from
presonel, esd boxes, components and etc. It is lie flat-will not cart and not affected by humidity and superior resistance to
abrasion, chemicals and heart resistant, easy to clean and maintain.
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
1, Why You Need ESD Protect For Your Production Line? ESD (Electrostatic Discharge) is an effect we may all experience when simply removing an article of clothing, but a static buildup and discharge when working with electronics can cause potential damage to components and latent failure of the printed circuit board. Before Buying Or Implementing ESD Safe Products One Needs Implementing An ESD Safe Procedure According To The ESD Standards IEC 61340 Or ANSI S2020 Which Is The Foundation Of ESD Preventive Protective Work And A Greater Guarantee Of Quality Assurance. 2, What we are offering？
ESD Package: Shielding Bag, EVA Foam, PU Foam, IXPE Foam, PP Corrugated Box, Tapes, Blister, Pallets, Bin Box, Tray ESD Mats: Table Mats, Floor Mats, Anti-Fatigue Mat, PVC Tile. ESD SMT Circulation: Magazine Rack, PCB Circulation Rack, Reel Rack, Trolley, Storage Wire Shelf, Wire Shelf Trolley. Grounding: ESD Wrist Straps, Grounders, Plugs ESD Apparel: Smock, Jacket, Shoes, Boots, Caps, Gloves ESD Tools: Brushes, Tweezers, office supplies, ESD Test Equipment, etc...
