Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Herzesd
Model Number :
Conductive PVC Tile
MOQ :
100
Price :
$3.75-6.80
Material :
PVC

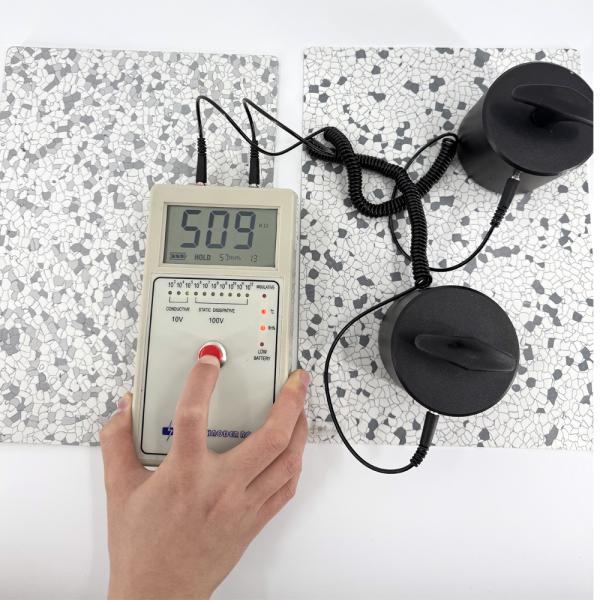

Surface Resistance :
10^4~10^6 ohm
Thickness :
2mm/2.5mm/3mm
Conductive Elements :
Carbon, Graphite, Metal-coated particles
Static Dissipative Range :
10^6~10^9Ω
Installation Underlayment :
Conductive copper foils or carbon-loaded adhesive
Grounding Method :
Copper grounding strips
Floor Structure :
Homogeneous
Electrical Conductivity :
Yes
Customizable Size :
Yes
Customizable Color :
Yes
Package Options :
Roll/Pieces
Indoor Usage :
Yes
ESD Protection :
Yes
Static Control :
Yes
Description
Products Description

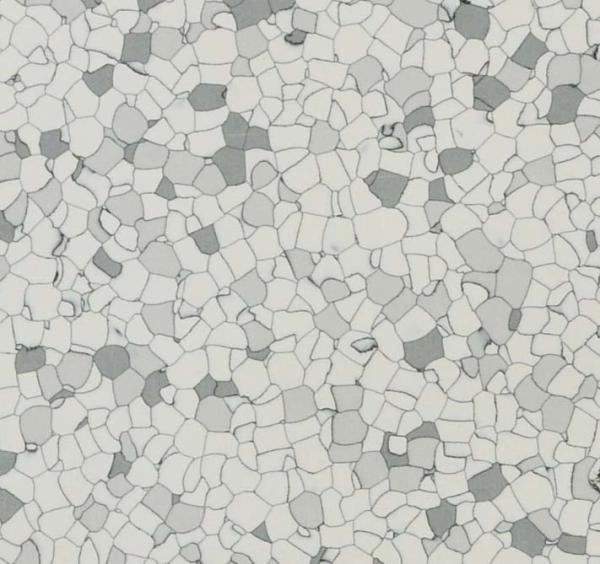

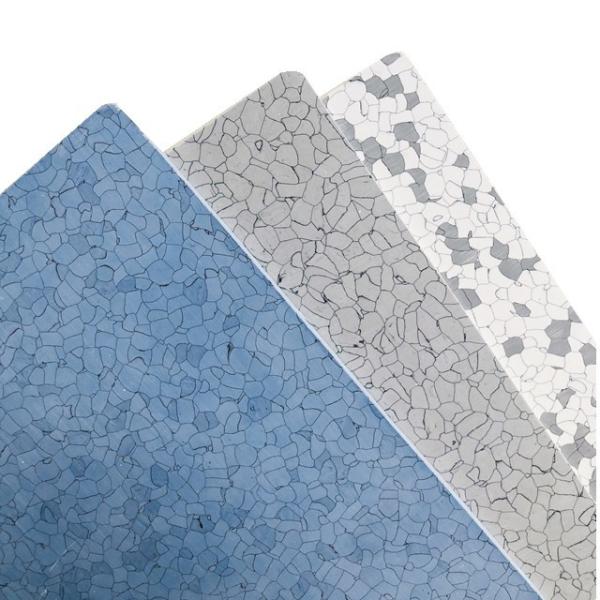

ESD vinyl flooring is widely used in clean rooms, manufacturing & assembly workshops of electronic products, hospitals, data centers & computer rooms, and other areas that require an anti-static environment. There are two kinds of ESD vinyl flooring, ESD tile and ESD sheet. Both tile and sheet are homogeneous structures, and electronic resistance can meet both conductive(10^4-10^6Ω) and static-dissipative(10^6-10^9Ω).
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
How Does a Static-Control Floor Provide a Path to Ground?

In the manufacturing process, ESD floor tiles are loaded with conductive elements, such as carbon, graphite or particles coated with metals, that provide electrical conductivity. When the floor becomes electrically charged, these conductive elements act as an electrical chain, conducting electricity from the surface of the floor through its entire thickness. Static-control flooring is installed over an electrically conductive underlayment, such as conductive copper foils or carbon-loaded adhesive. The underlayment forms a conductive ground plane that unifies all the contiguously-installed tiles in the room.

Copper grounding strips, attached to the underlayment, are connected to either an electrical outlet or an earth ground such as a steel I-beam or a grounding rod. This electrical connection allows static to complete its circuit and flow safely to ground.
The static generated when people walk on the ESD floor flows at a controlled rate through the conductive elements in the floor, across the underlayment, to the copper strips, to ground. Instead of remaining on the floor’s surface or moving through humans to whatever they touch, static is drawn downward, toward ground, where it can no longer wreak havoc.
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Company Profile
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable

Shanghai Herzesd Industry Co., Ltd


Specialized range of ESD products including anti-static equipments, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, etc.

In today's cutting edge competition of electronic products, Shanghai Herzesd Industry Co., Ltd enjoys a high reputation amongst customers due to its excellent product quality, reasonable price range, and top class professional services. Established in the year 2018, we are a reputed manufacturer, supplier, exporter and trader of ESD Products which include ESD Equipments, Anti-static Equipments, ESD Work Station Accessories, ESD Shielding bag,ESD Magazine Rack, ESD PCB trolley,ESD Workstation,ESD Garments, ESD Fabrics, Safe Packaging Materials, ESD Control Materials, Static Control Equipments, etc.
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Our Factory
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Certifications
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Packing and Shipping
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
Our Services
Conductive PVC ESD Flooring Tile 10^4-10^6 Ohm Customizable
FAQ
1. WHY IS ESD – ELECTROSTATIC DISCHARGE – A PROBLEM?

When we think of static in our everyday lives, most of us think nuisance—static cling, particle attraction, irritating static
shocks. To perceive these common effects of static electricity—to feel a static shock—the discharge must be at least 3500 volts. Though we may not enjoy feeling a 3.5 kV shock, it’s no big deal—to us. This illustration shows a hand reaching for a door knob to demonstrate an ESD event - a shock from touching metal - that might be felt by a human Electronic components built or assembled in electronics manufacturing plants, circuit boards, hand-held electronic devices, headsets, and sophisticated computer equipment typically used in labs, hospitals, server rooms, FAA flight towers, 9-1-1 dispatch operations, mission-critical call centers—even in theaters and casinos—contain microelectronic parts that are highly sensitive to minute changes in electrical current. So sensitive, in fact, that they can be damaged—and data compromised, if not lost or destroyed—by a static discharge as low as 20 volts. Well below the human threshold for perception. We’ve all, at one time or another, been slowed down, laid-up, or knocked out by a cold. A static discharge of 20 volts is about as perceptible as breathing the germs that cause the common cold. We don’t know they are there—until……….

2. WHY IS STATIC-CONTROL FLOORING NEEDED?
When we walk on certain floors, the friction between the soles of our shoes and the floor generates a static charge.* This static charge stays in place, on the surface of our body, until we touch something, then it jumps or discharges to that person or object.
This release of electricity is called an electrostatic discharge, or ESD. When static discharges to a static-sensitive electronic component, the sudden rush of electrical current can damage or destroy its internal circuitry.

In most workplace environments, the static generated when people walk is the biggest contributor to random ESD events (or problems caused by electrostatic discharge). For this reason, a static-protective floor—or an ESD floor/footwear combination—is the cornerstone of any effective static-control program.
