Heat-Release Adhesive Tape -TS618G Pyrolytic PSA Tape for Ceramic, Glass & Metal – Residue-Free Removal
Heat-Release Adhesive Tape -TS618G Pyrolytic PSA Tape for Ceramic, Glass & Metal – Residue-Free Removal
Specifications
Brand Name :
KHJ
Model Number :
TS618G
Certification :
RoHS
Place of Origin :
ShenZhen
Description

Heat-Release Adhesive Tape -TS618G Pyrolytic PSA Tape for Ceramic, Glass & Metal – Residue-Free Removal

Product Description

TS618G is a composite single-sided light red pyrolytic adhesive tape featuring high initial tackiness. Under conditions of 130-140°C, the adhesive loses its tackiness, enabling automatic separation from the substrate.

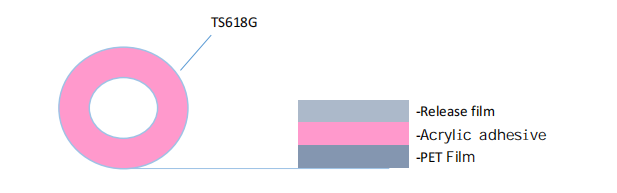

Product Structure

Heat-Release Adhesive Tape -TS618G Pyrolytic PSA Tape for Ceramic, Glass & Metal – Residue-Free Removal

Product Features
Initial heat resistance without adhesive transfer (re-stick resistance)
Strong instantaneous tackiness; easy component removal with no residue after thermal de-adhesion
Compliant with RoHS requirements
Product Applications
This product is suitable for temporary fixation of various components, ceramics, glass, and metal plates, as
well as special cutting protection in various electronic industry applications.
Performance Parameters
Test Item Specification Test Method
Substrate Thickness (μm) 233±3 Micrometer
Product Thickness (excl. release film) (μm) 293±5 Micrometer
180° Peel Strength (gf/25mm) 150-300

Per GB/T 2792-2014

Recommended De-adhesion Process:

130-140°C × 4-15 min (depending on heating method, substrate thermal conductivity, and heat transfer uniformity)

Storage

Storage Conditions 10-30°C, relative humidity 40-60%
Shelf Life 12 months

Precautions

Keep the product away from heat sources and open flames.
The substrate surface should be clean, dry, and free of oil or other contaminants.
This product shall not be used outdoors. Avoid outdoor weather conditions that may cause adhesive
residue to remain on the substrate upon tape removal.
Remarks

The above data is obtained from standard laboratory testing. Actual results may vary depending on the
user's operating conditions and methods. It is recommended to test the product before use
