Thermal Release Adhesive Tape -TS630HV
Thermal Release Adhesive Tape -TS630HV
Specifications
Brand Name :
KHJ
Model Number :
TS630HV
Certification :
RoHS
Place of Origin :
ShenZhen
Description
Thermal Release Adhesive Tape -TS630HV
Product Description
TS630HV is a blue thermal release tape featuring high initial adhesion. At a specific temperature (145°C),
the adhesive foam loses its tackiness, enabling automatic separation from the bonded surface.

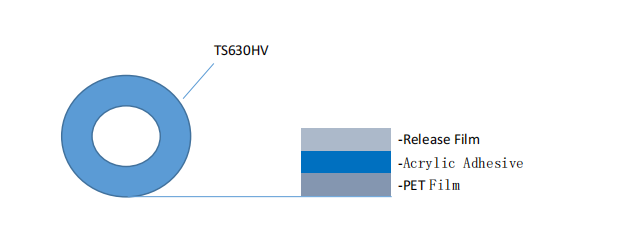

Product Structure
Product Structure

Thermal Release Adhesive Tape -TS630HV

Product Features
• High initial temperature resistance, no re-tackiness
• Strong instant adhesion with high positioning accuracy
• Easy component removal without residue after thermal release
Product Applications
This product is suitable for temporary fixing of various electronic components, ceramics, glass, metal
plates, and other materials during cutting and processing operations.
Performance Parameters
Test Item Standard Test Method Value
Base thickness (mm) GB/T 6672 Micrometer 75±2
roduct thickness (without release liner) (mm ) GB/T 6672 Micrometer 135±5

180° Peeling Force (N/25mm)

-

According to GB/T 2792-2014

N

 ³25 (before thermal release) o tackiness (after thermal releas
Breaking strength (KN/m) - According to GB/T 30776-2014 ³10
Elongation at break (%) - According to GB/T 30776-2014 ³120

Recommended Thermal Release Process
• Temperature: 145°C
• Time: 15 minutes for complete adhesive foaming and loss of tackiness
• Maximum heating time: Do not exceed 40 minutes (depending on thermal conductivity of substrate
and heating uniformity)
Storage Conditions
• Temperature: 10-30°C
• Relative Humidity: 40-60%
• Shelf Life: 6 months
Precautions
• Keep product away from heat sources and open flames;
• Ensure the substrate surface is clean, dry, and free from oil or other contaminants;
• Do not use outdoors to avoid weather conditions causing adhesive residue on substrate during
removal.
Remarks
The above data are measured under laboratory standard conditions. Actual performance may vary
depending on user conditions and methods. It is recommended to test the product before use.
