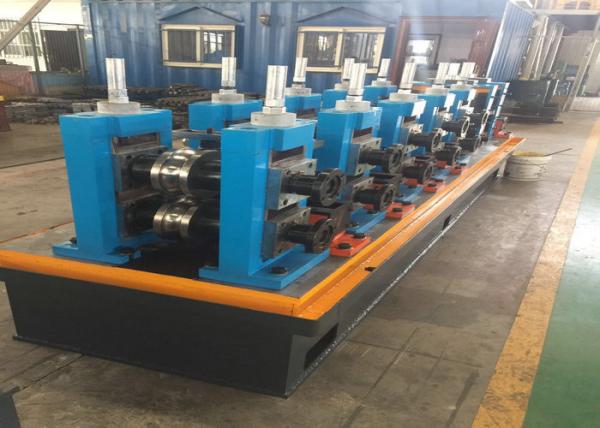

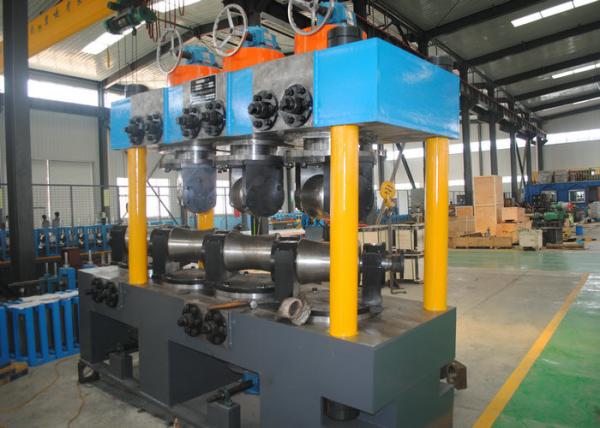

High Frequency Welded Pipe Mill 21-63mm CE ISO Certified
High Frequency Welded Pipe Mill 21-63mm CE ISO Certified
High Frequency Welded Pipe Mill 21-63mm CE ISO Certified
High Frequency Welded Pipe Mill 21-63mm CE ISO Certified
High Frequency Welded Pipe Mill 21-63mm CE ISO Certified
High Frequency Welded Pipe Mill 21-63mm CE ISO Certified
Specifications
Brand Name :
Tengtian
Model Number :
HG76
Certification :
CE, ISO9001, BV
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
35 set per year
Delivery Time :
three months
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
High Frequency Welded Pipe Mill Professional ERW Pipe Mill Line , Stainless Tube Mills BV CE Standard
certification :
CE ISO
worm gearing :
Max.80m/min
Pipe Diameter :
21 - 63mm
material :
carbon steel,stainless steel,low alloy steel
Keywords :
High Frequency Welded Pipe Mill
Description

Process Flow

Slit Coil ---- Un-Coiler ---- Shearing And Butter Welder ---- Storage/ Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging

High Frequency Welded Pipe Mill 21-63mm CE ISO Certified

Technical Parameter

Model RT28 RT32 RT45
Diameter of Welded Tubes 10-38mm 13-50.8mm 13-50.8mm
Size of Square Tube (Max.) 30×30mm 40×40mm 40×40mm
Size of Rectangle Tube (Max.) 20×40mm 30×50mm 30×50mm
Wall Thickness of Round Tube 0.5-1.5mm 0.6-2.0mm 0.8-2.0mm
Wall Thickness of Square & Rectangle Tube 0.5-1.2mm 0.6-1.6mm 0.8-1.6mm
Speed of Tube Welding 30-80m/min 30-80m/min 20-70m/min
Power of Major Motor 45KW 90KW 90KW
High Frequency Power 100KW 150KW 150KW

Machine Configuration

Entry Section
Double Side Un-Coiler Manual Expand Hydraulic Expand
Shear & Butt Welder Manual Automatic
Accumulator Vertical Horizontal
Forming Section
Leveling Unit 7-roller
Round shape Forming Normal Cassette-Bed Quick Change
Welding Section
Guide Roll Stand 1 set
Extruding Roll Stand 1 set
Scraper Frame 2 sets
H.F. Welder Solid State
Cooling Unit Water cooling tank
Sizing & Straightening Section
Sizing Unit Normal Cassette-Bed Quick Change
Turk’s Head 2 stations
Measuring Roll Stand With encoder
Flying Cutting Saw Pneumatic Friction Saw Flying Cold Saw
Run-out Table Singe side Double side

More

Specification

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
