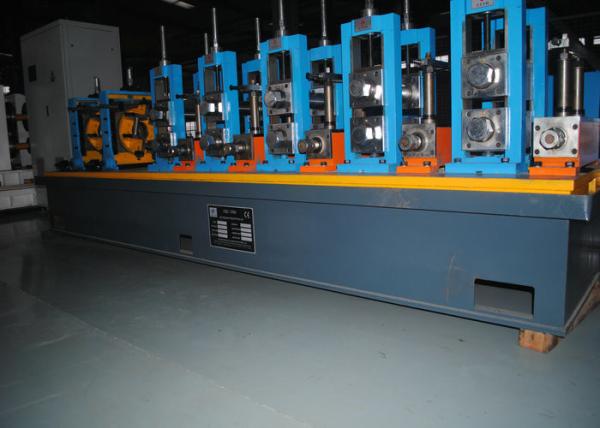

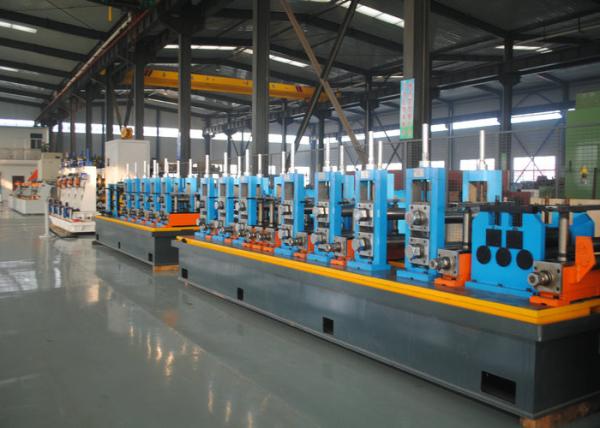

HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine
HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine
HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine
HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine
Specifications
Brand Name :
Tengtian
Model Number :
HG60
Certification :
CE, ISO9001, BV
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 set per year
Delivery Time :
2.5 months
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
High Frequency Welded Pipe Mill HG76 Stainless Steel Tube Mill Welded Pipe Making Machine CE Approved
Max.Thickness for Square Pipe :
0.8-3.0mm
worm gearing :
Max.80m/min
certification :
CE ISO
Pipe Diameter :
21 - 63mm
material :
carbon steel,stainless steel,low alloy steel
Other Pipe :
square pipe and Rectangular pipe
Coil Outer Diameter :
Max. Φ1600mm
Production :
Round pipe
Custom :
size diameter
Welder :
200KW
Wall Thickness :
1.0~4.0 mm
Pipe End Facing :
Beveling/Chamfering
Type Of Welding :
high frequency welding
Square Tubes :
Min 10 x10 ~Max 45 x 45 mm
Production Capacity :
100-1000 tons per month
Equipment Specification :
high frequency and precision
Main Drive Motor :
DC 55kW×2
Key Word :
High frequency welded pipe mill
Description
Model HG50 enlarge to 76
Size 42*5*1.6m
Weight 26T
Power of machine 400kw
Voltage 380v,customizable

Produce Capacity

 Square pipe thickness δ0.5mm~2.0mm
Round pipe thickness δ0.5mm~2.5mm
Square tube size 15*15~60*60mm
Produce speed 0M/min~120M/min
Length 4m~8m
Steel Strips Thickness of strips δ0.5~2.5mm
Width of strips H50~240mm
O.D. of steel coil Φ800mm~Φ1500mm
I.D. of steel coil Φ450mm~Φ550mm
Maxi. Load weight ≤3000kgs

HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine

HG76 Stainless Steel Tube Mill High Frequency Welded Pipe MachineHG76 Stainless Steel Tube Mill High Frequency Welded Pipe MachineHG76 Stainless Steel Tube Mill High Frequency Welded Pipe MachineHG76 Stainless Steel Tube Mill High Frequency Welded Pipe MachineHG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine

Summary
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs
B .Dimension range of processing steel pipe
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ
C.Main components
1 Uncoiler: 1 set
2 Shearing and butt-welder: 1 set
3 Accumulator: 1 set
4 Forming. Welding &sizing unit: 1 set
5 Computer-controlled tracking cutting saw: 1 set
6 Run-out table: 1 set
7 Solid-state high-frequency welder: 1 set
