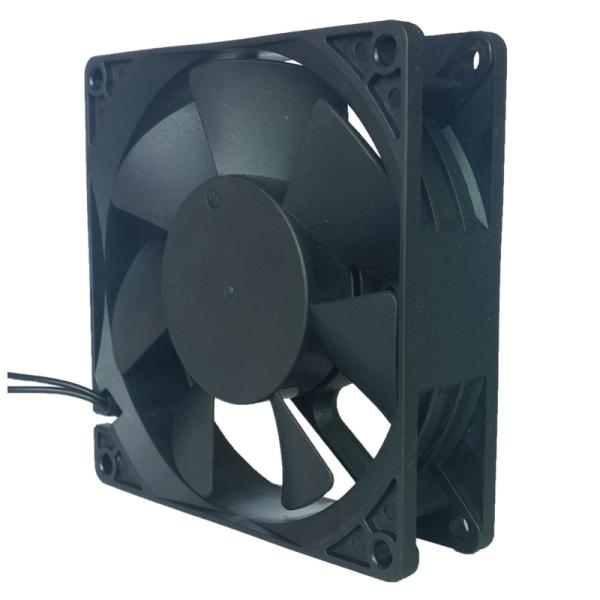

AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm
AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm
AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm
AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm
Specifications
Brand Name :
MX
Model Number :
MX92255ABM22
Certification :
CE ROHS UL
Place of Origin :
GuangDong / China
MOQ :
500pcs
Price :
USD + 5 / 15 + Piece
Payment Terms :
T / T , Western Union
Supply Ability :
100000 + Piece + A Week
Delivery Time :
10 - 15 Working Days
Packaging Details :
Carton Box
Size :

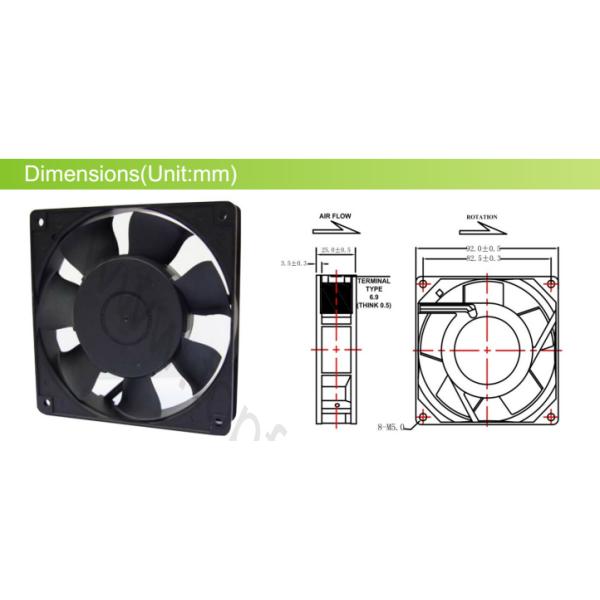

92mm X 92mm X 25 mm
Voltage :
110V / 220V
Bearing Type :
Ball bearing
Blade Material :
Stainless Steel
Speed :
2500rpm
Motor :
AC brushless type
Description

AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm

Applications :


Topfan ’ s fan products are utilized by all type of machines which required heat reduction systems ,
such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ; Disports / exercise equipments ; Medical instruments .

Gerenal Specifications :

Bearing Type : Ball Bearing
Function : IP55 , IP58 , IP66 , IP68 , Waterproof and dustproof
Frame and Impeller : 94V - 0 fireproof , metal frame and plastic impeller
Voltage : AC110V 120V 220V 240V
Temperature range : - 40 ℃ to + 125 ℃
Expected Life : ＜ 80000 hours

Specifications

Model Bearing Type Rated Voltage Freq . Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No . S B Y VDC Hz Amp Watt RPM CFM m3 / min Inch-H2O dB-A g
MX9225ABM11 B . S 110 / 120 50 / 60 0 . 14 / 0 . 12 12 2300 / 2800 27 / 34 0 . 76 / 0 . 96 0 . 16 / 0 . 20 29 / 31 250
MX9225ABM22 B . S 220 / 240 50 / 60 0 . 09 / 0 . 05 15 2300 / 2800 27 / 34 0 . 76 / 0 . 96 0 . 16 / 0 . 20 29 / 31 25

AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm

AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm

Some details :AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm

AC 9225 Explosion Proof Exhaust Fan / Metal High Speed Brushless Cooling Fans 92mm X 92mm X 25 mm
